Test Description

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. This step verifies that the DTC is still present.

3. This step isolates the fault condition.

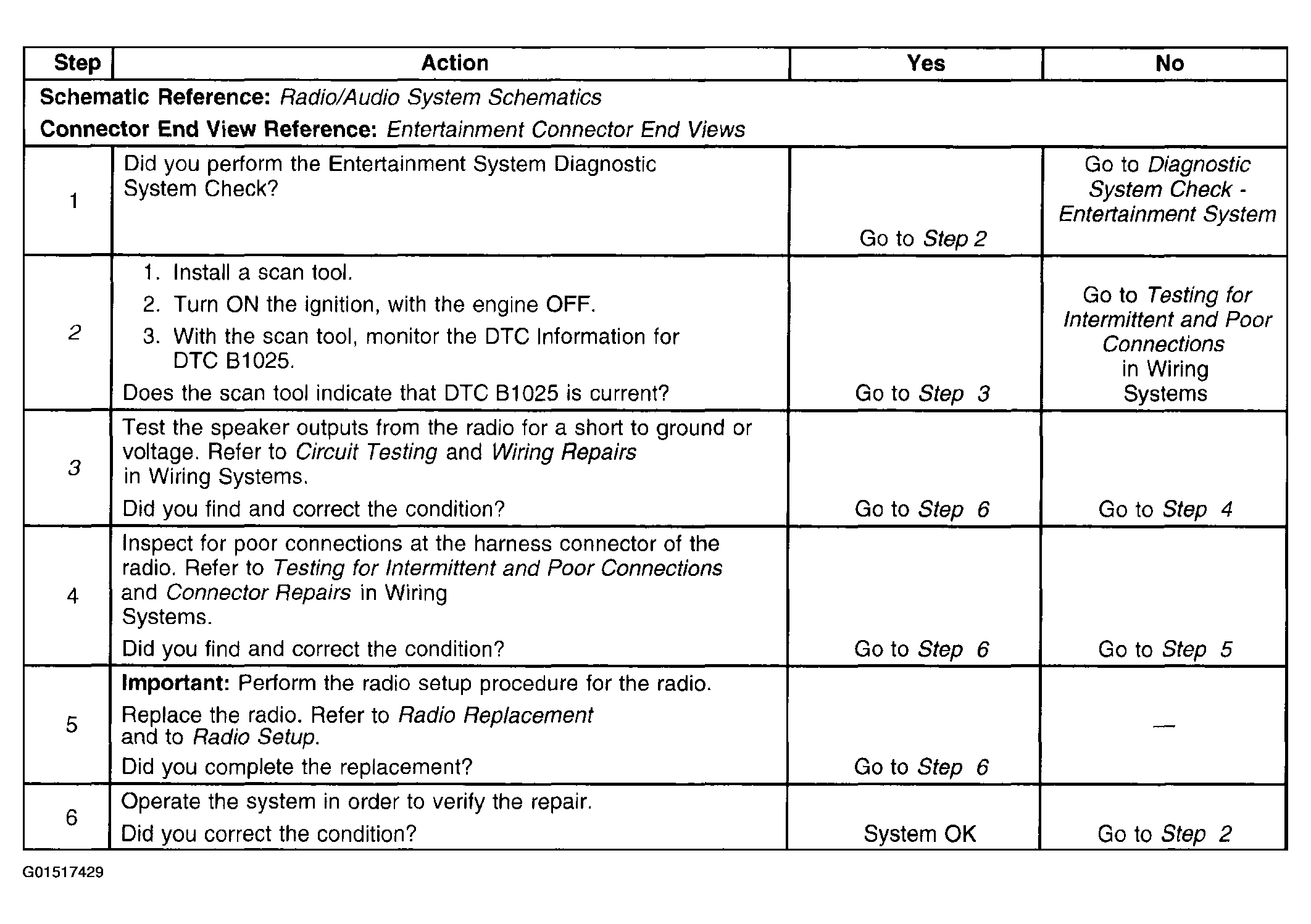

Fig 1: DTC B1025,B1035,B1045 Or B1055 Diagnosis
G01517429Courtesy of GENERAL MOTORS CORP.
