Headlamps Inoperative - Low Beams

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Headlamps Inoperative - Low Beams Diagnosis (Steps 1-9)

Courtesy of GENERAL MOTORS CORP.

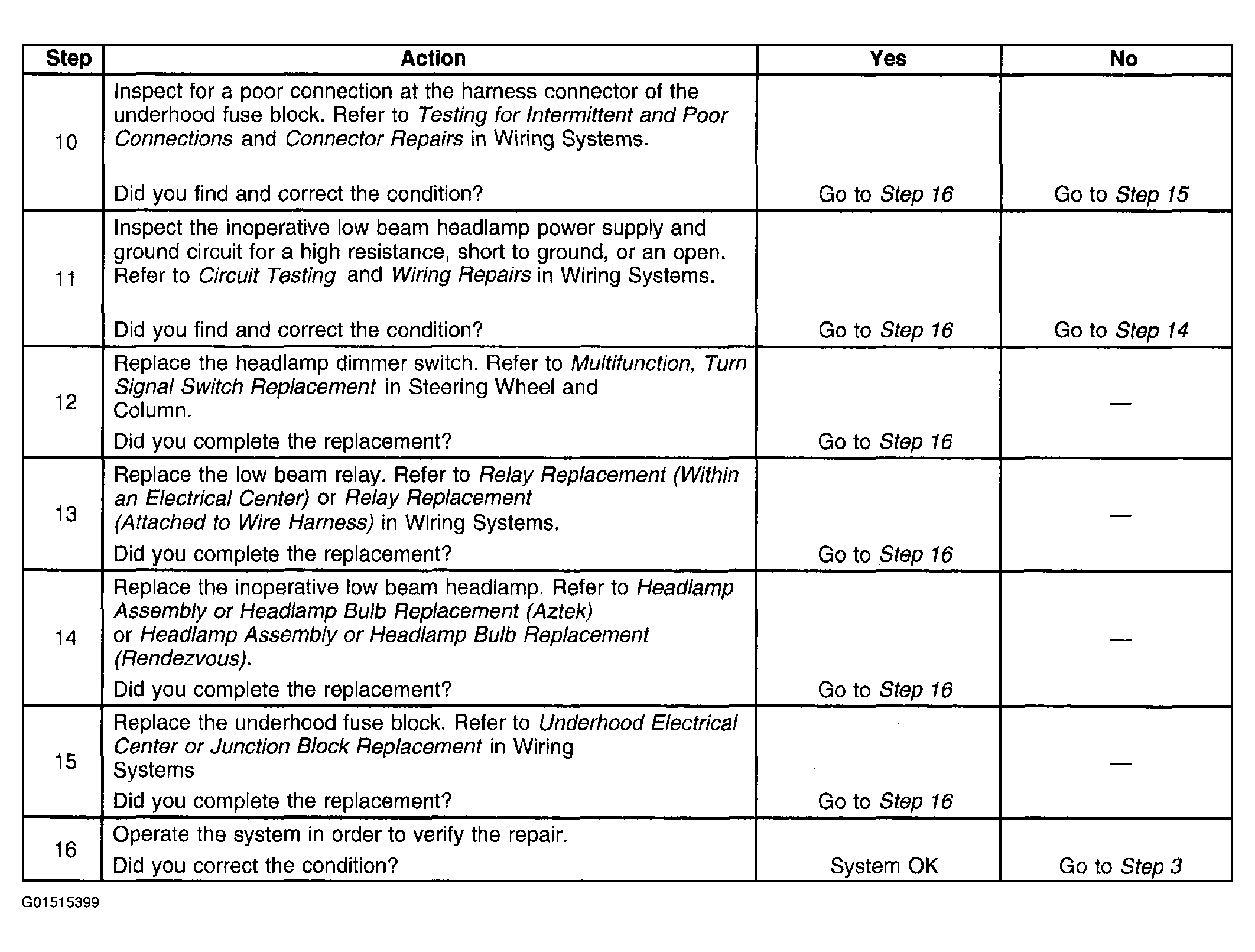

Fig 2: Headlamps Inoperative - Low Beams Diagnosis (Steps 10-16)

Courtesy of GENERAL MOTORS CORP.
