Luggage Carrier New Installation

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the roof rail moldings.
  2. Remove the roof rail moldings from the roof.

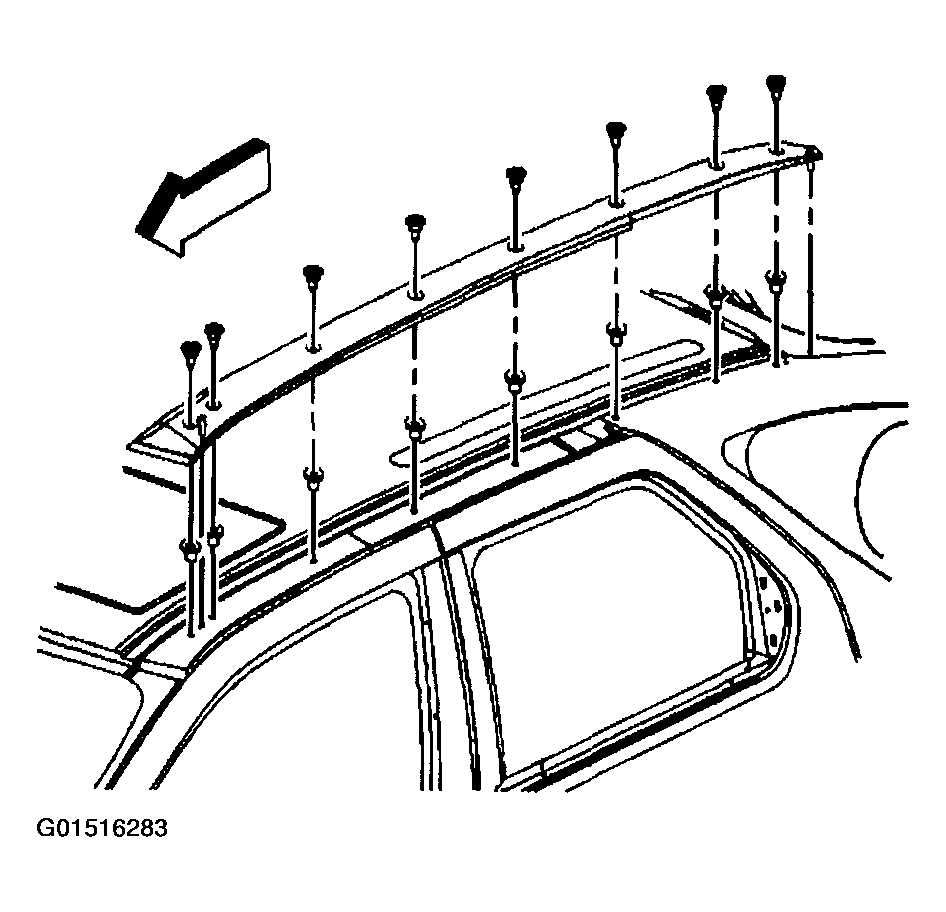

    Fig 1: Removing Roof Rail Moldings Screws
    G01516283Courtesy of GENERAL MOTORS CORP.
  3. Position the luggage carrier side rails to the roof.
  4. Install the luggage carrier side rail screws to the side rails.

    Tighten

    Tighten the luggage carrier side rail screws to 6 N.m (53 lb in).

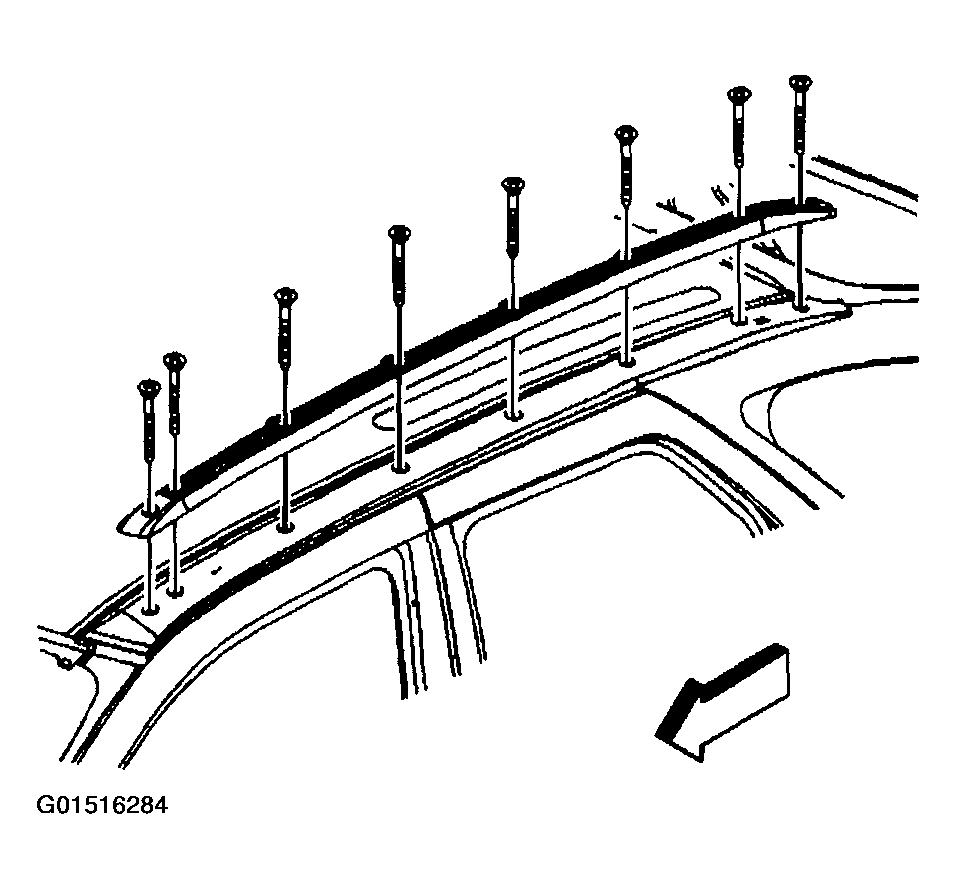

    Fig 2: Installing Luggage Carrier Side Rail Screws To Side Rails
    G01516284Courtesy of GENERAL MOTORS CORP.
  5. Remove the luggage carrier side rail trim covers from the rails using a small flat bladed tool.
  6. Lift up on the luggage carrier cross rail levers in order to engage the cross rails into the side rails.
  7. Slide the luggage carrier cross rails to the desired position.
  8. Release the levers on the luggage carrier cross rails to lock them into position.
  9. Install the luggage carrier side rail trim covers to the slots in the rails, pressing until fully seated.

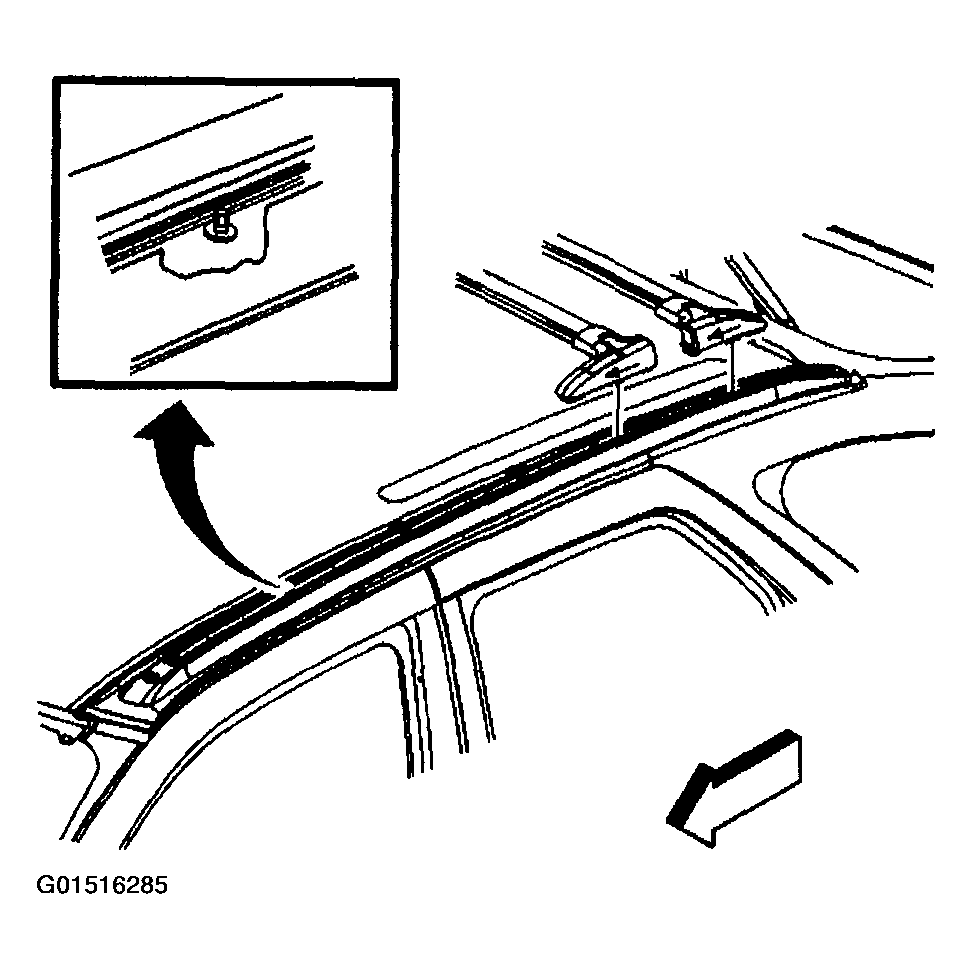

    Fig 3: Engaging Luggage Carrier Cross Rails Into Side Rails
    G01516285Courtesy of GENERAL MOTORS CORP.
