Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

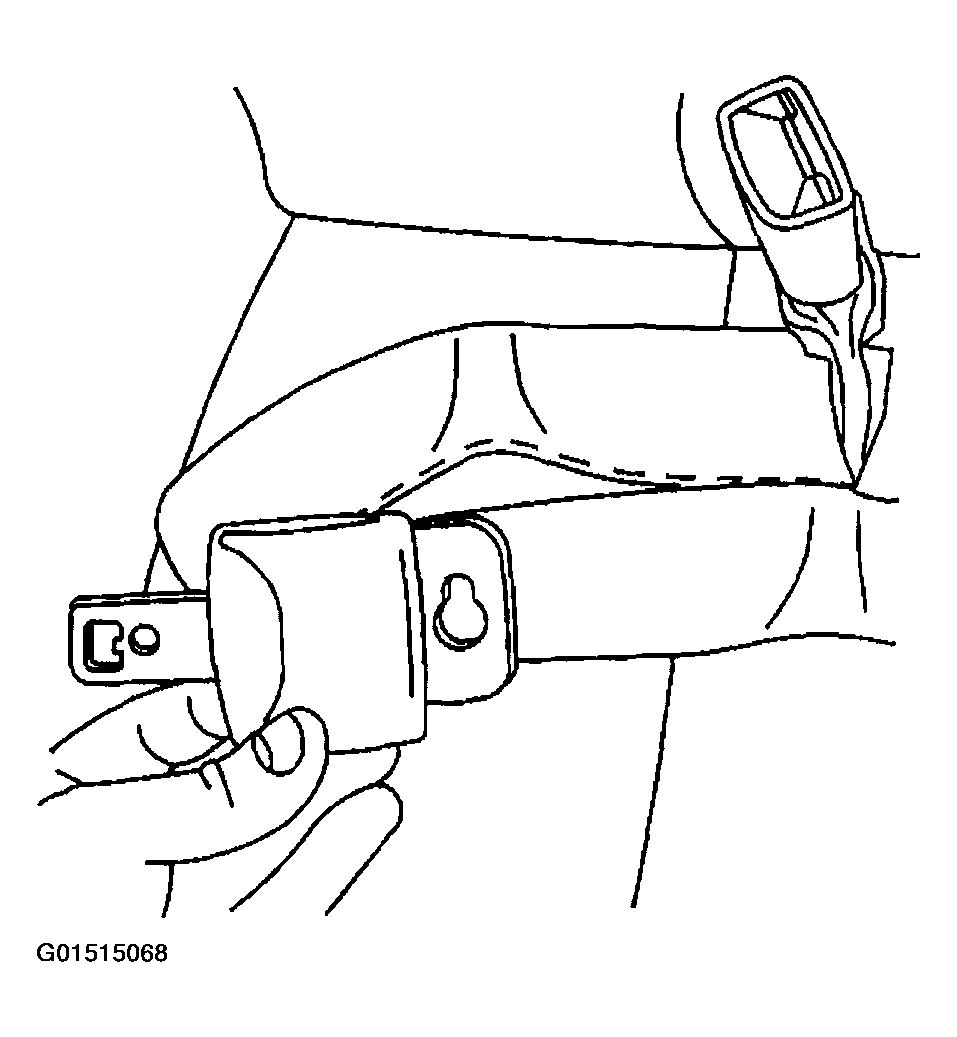

Remove the rear seat belt center latch to buckle.

Fig 1: Removing Procedure Of Seat Belt Retractor - Center Rear (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

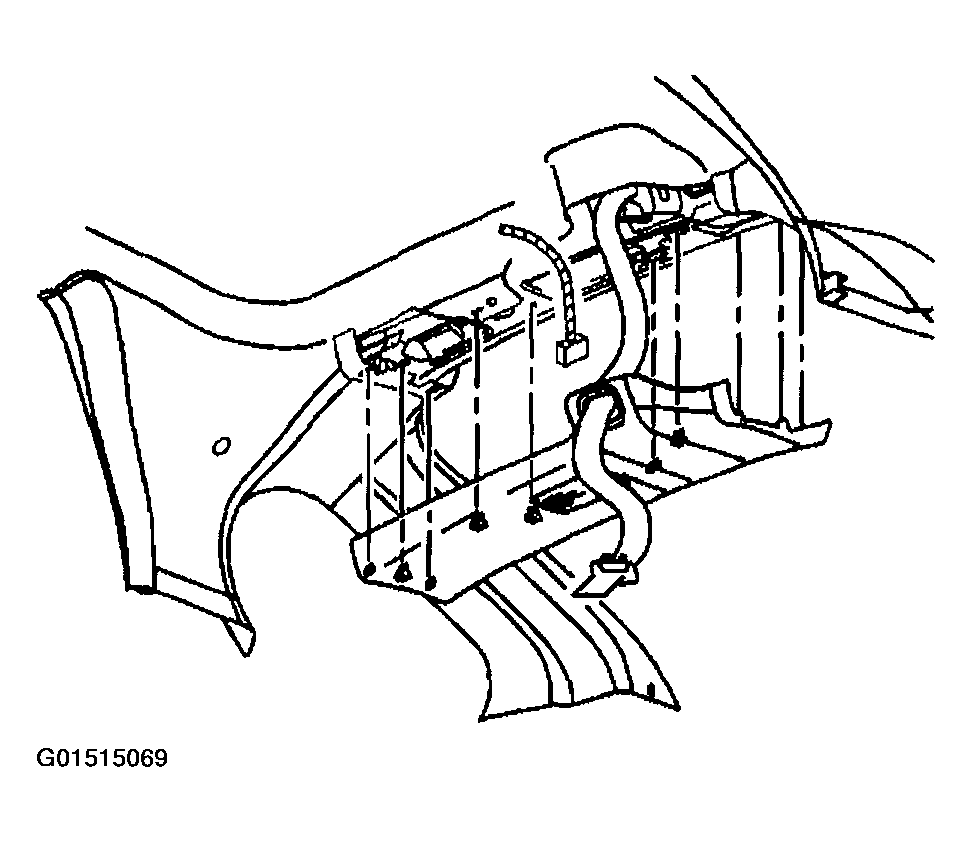

Remove the rear upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- REAR UPPER .

Fig 2: Removing Procedure Of Seat Belt Retractor - Center Rear (2 Of 4)
Courtesy of GENERAL MOTORS CORP.

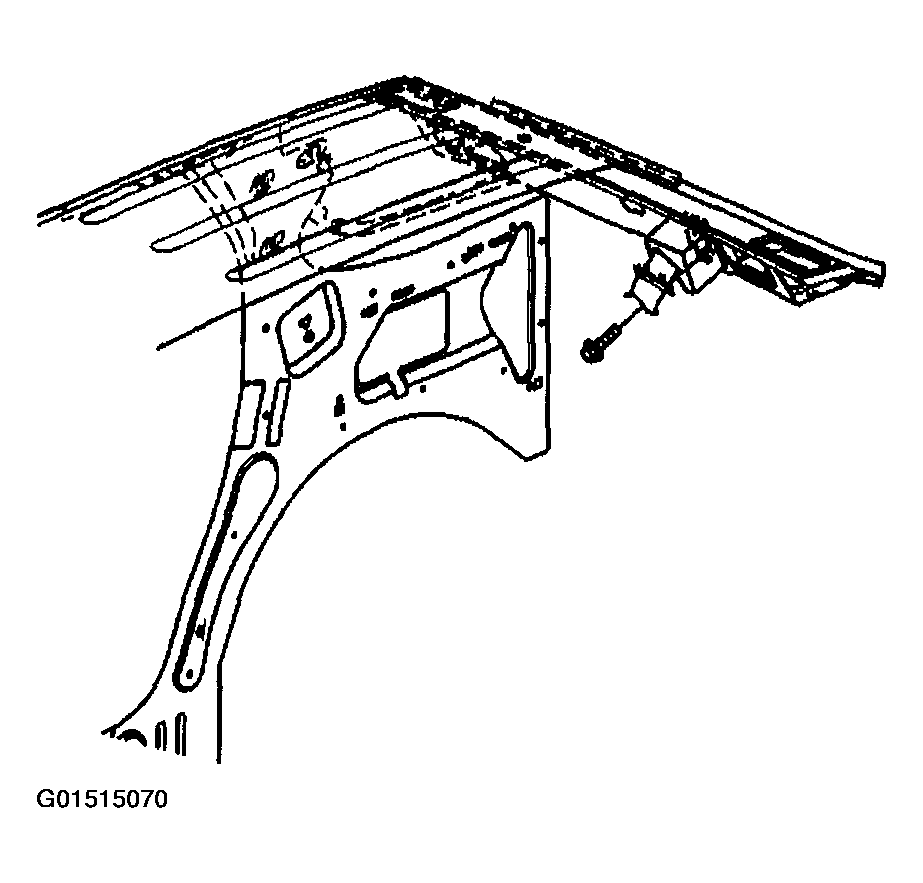

Remove the rear seat belt center retractor bolt.

Fig 3: Removing Procedure Of Seat Belt Retractor - Center Rear (3 Of 4)
Courtesy of GENERAL MOTORS CORP.

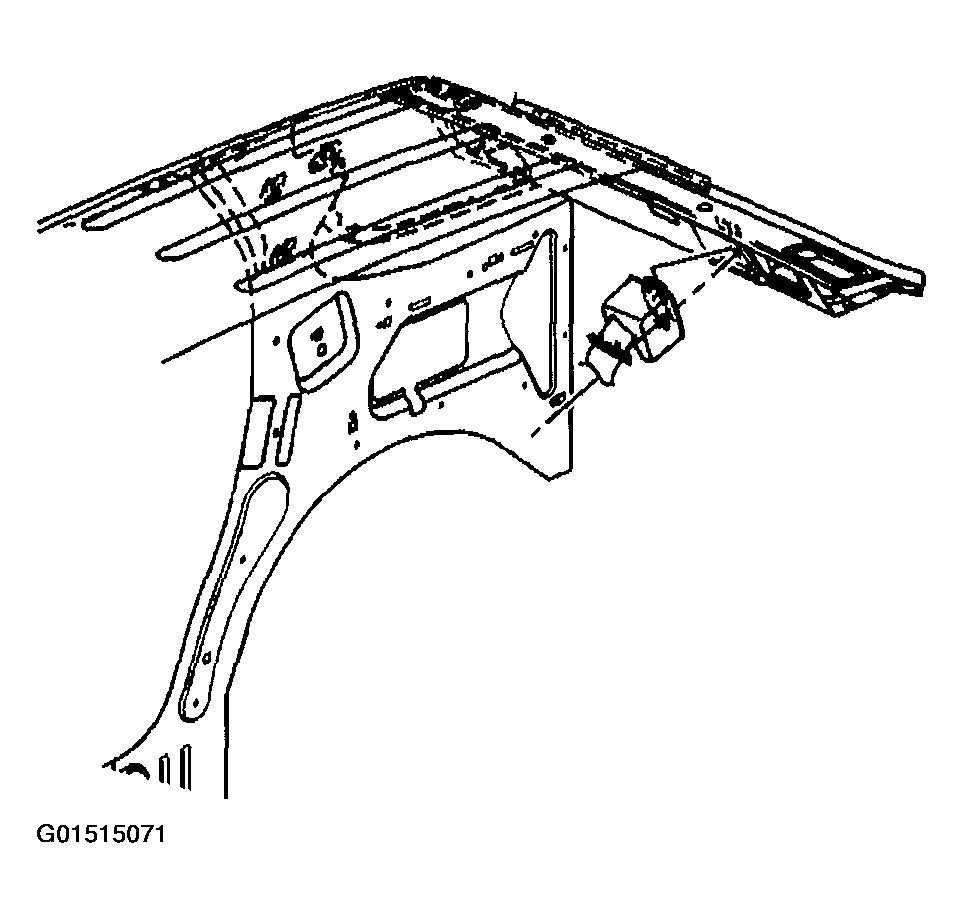

Remove the rear seat center belt retractor from the rear roof rail panel.

Fig 4: Removing Procedure Of Seat Belt Retractor - Center Rear (4 Of 4)
Courtesy of GENERAL MOTORS CORP.
