Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure relief valve to the lower quarter panel.
  2. Press the pressure relief valve into the quarter lower panel until the retainers lock into place at the upper and lower locations.
  3. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT -- REAR BUMPER (AZTEK) or FASCIA REPLACEMENT -- REAR BUMPER (RENDEZVOUS) .

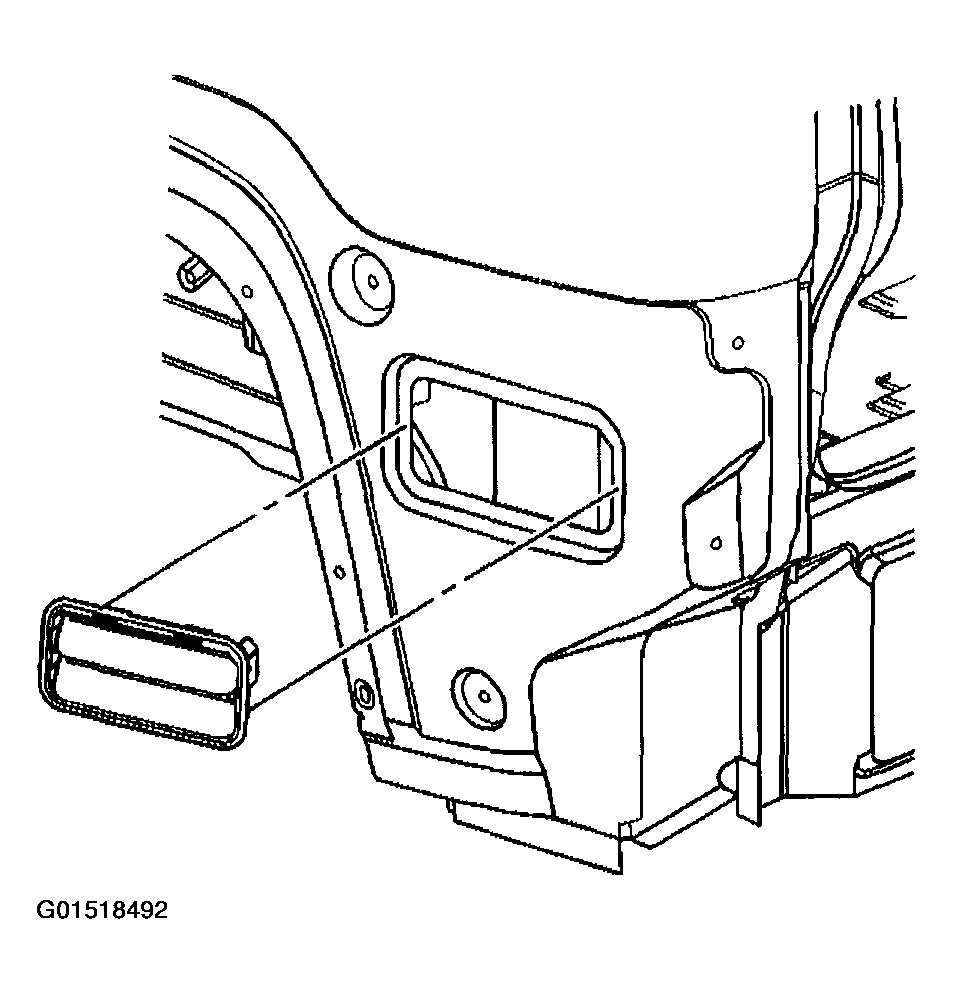

    Fig 1: Installing Procedure Of Pressure Relief Valve Replacement
    G01518492Courtesy of GENERAL MOTORS CORP.
