Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align spacer and liftgate striker to holes in body.
  2. Install the liftgate striker bolts.

    Tighten the liftgate striker retaining bolts to 25 N.m (18 lb ft).

  3. Close the liftgate.

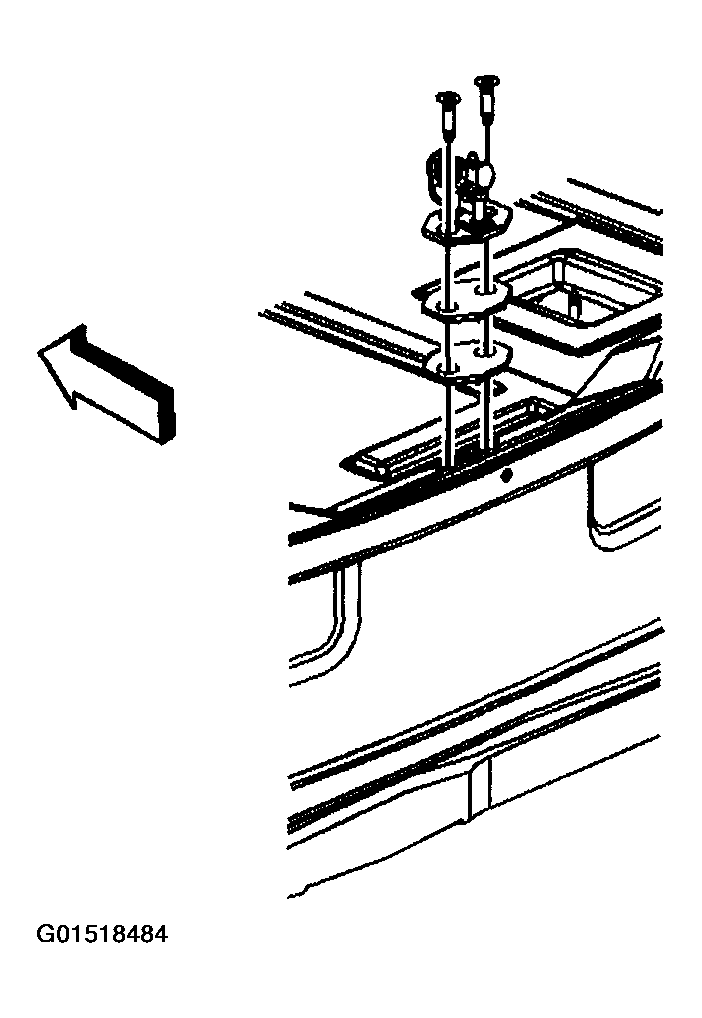

    Fig 1: Installing Procedure Of Latch Striker Replacement - Lift Gate (Rendezvous)
    G01518484Courtesy of GENERAL MOTORS CORP.
