Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE  .
  3. Disconnect the electrical connector from the liftgate latch.
  4. Remove the bolts from the liftgate latch.
  5. Remove the liftgate latch from the liftgate.

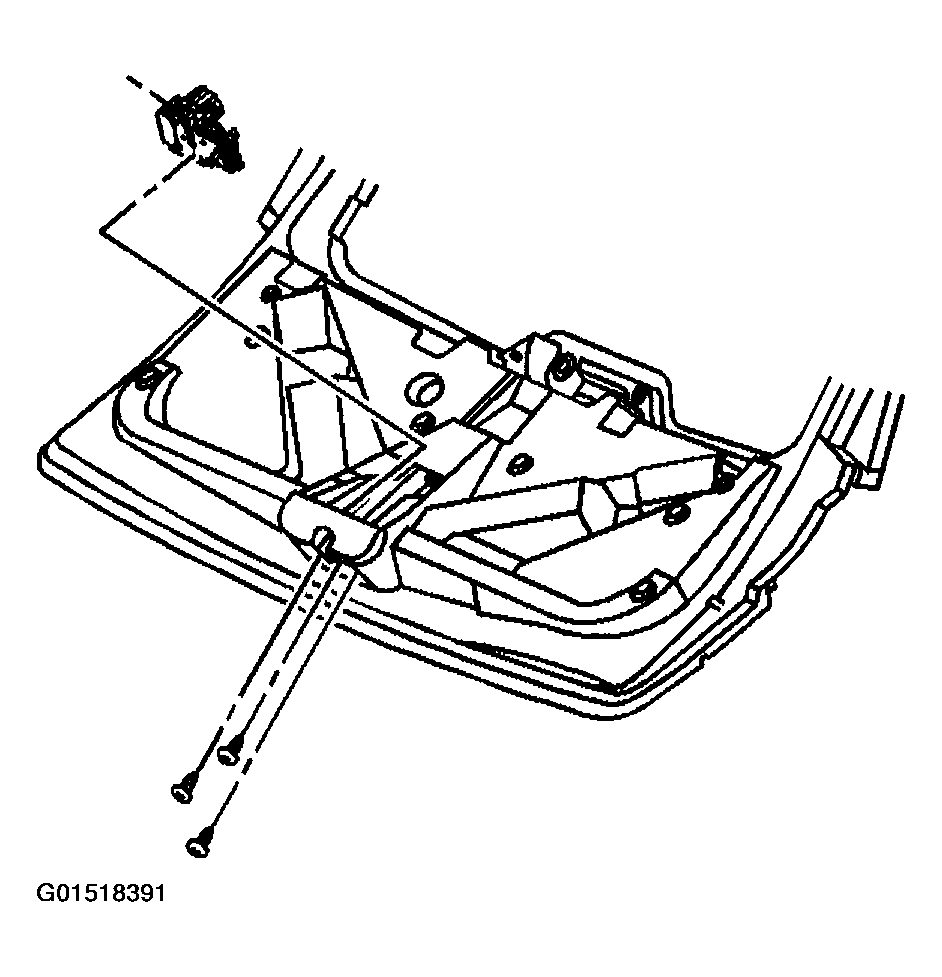

    Fig 1: Removing Procedure Latch Replacement - Lift Gate (Rendezvous)
    G01518391Courtesy of GENERAL MOTORS CORP.
