Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel filler pocket to the fuel filler neck, pressing into place until fully seated.
  2. Install the screws to the fuel filler pocket.

    Tighten the fuel filler pocket screw to 2 N.m (18 lb in).

  3. Install the fuel filler neck seal to the fuel filler neck.
  4. Install the fuel filler cap to the fuel filler neck.

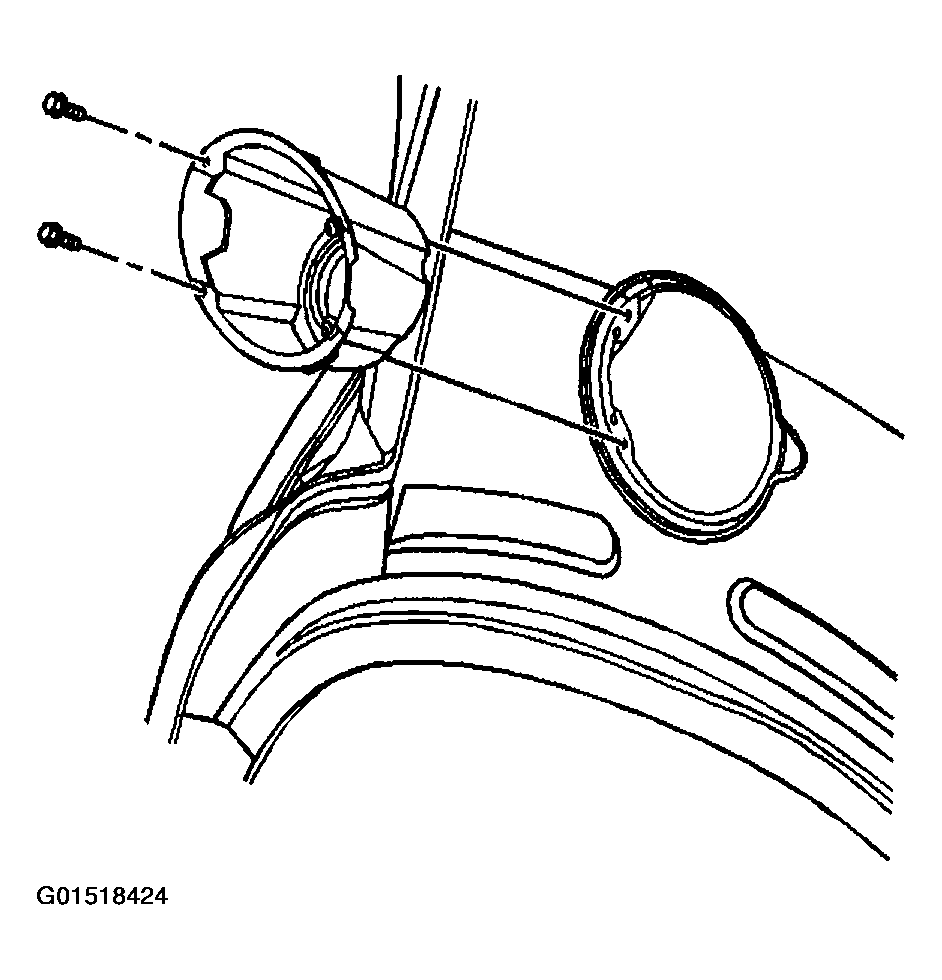

    Fig 1: Installing Procedure Fuel Filler Pocket (Rendezvous)
    G01518424Courtesy of GENERAL MOTORS CORP.
