Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the seat back fully forward.
  2. Pull the release strap on the back side of the seat adjuster or pull the release handle on the side of the rear seat in order to release the adjuster from the floor.
  3. Lift the rear of the rear seat fully upwards and forward.
  4. Lift the rear seat from the anchor plate.
  5. Remove the rear seat from the vehicle.

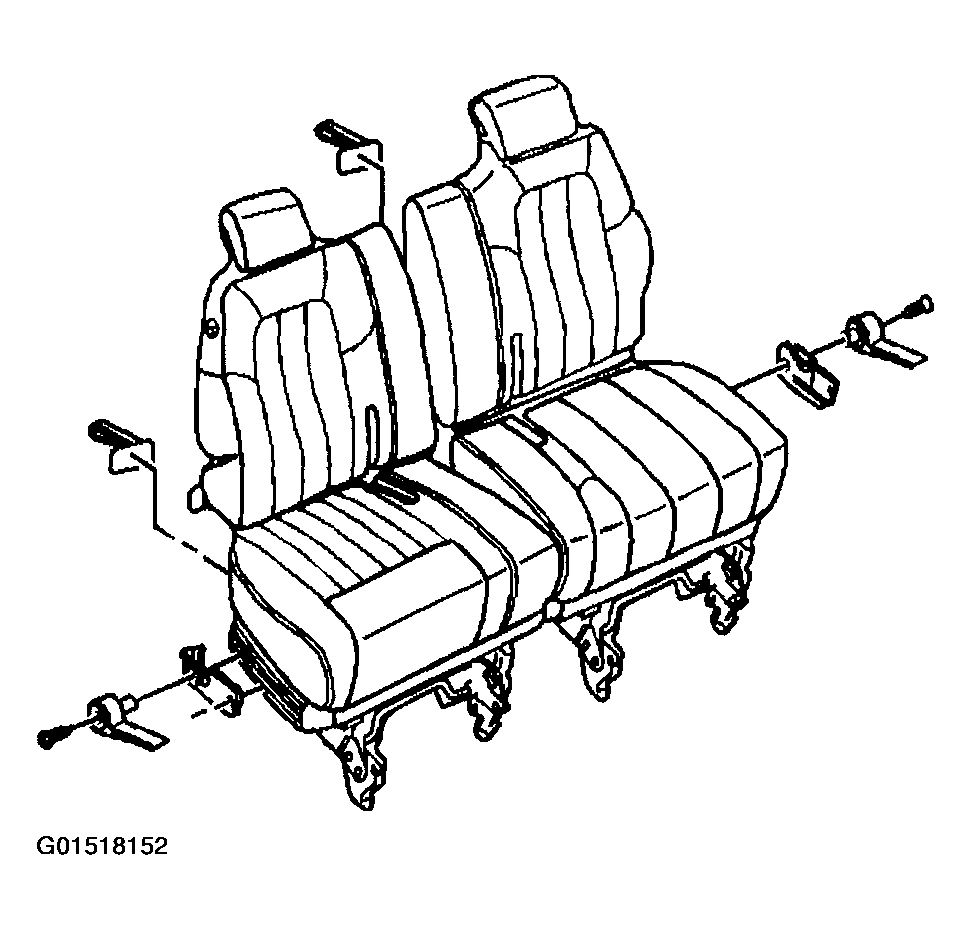

    Fig 1: Removing Rear 50-50 Split Seat
    G01518152Courtesy of GENERAL MOTORS CORP.
