Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the rear seat to the anchor plates.
  2. Install the front seat adjuster latches into the anchor plate.

    Ensure that the latch is hooked on both pins.

  3. Tilt the rear seat assembly down and latch the seat adjuster into the floor.
  4. Install the rear seat to its original position.

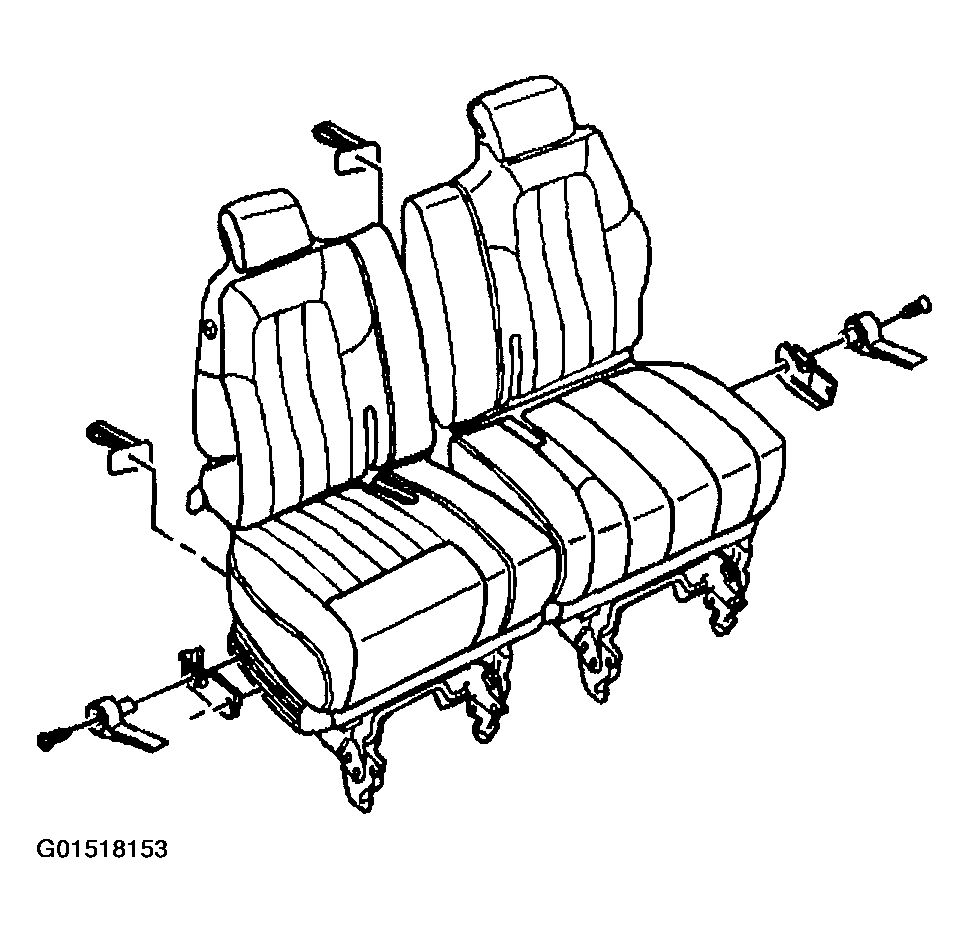

    Fig 1: Installing Rear 50-50 Split Seat
    G01518153Courtesy of GENERAL MOTORS CORP.
