Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retainer slot on the rear seat cushion trim panel to tab on the recliner hinge.
  2. Install the rear seat cushion trim panel by sliding down until the retainer slot is fully seated on the recliner hinge tab.

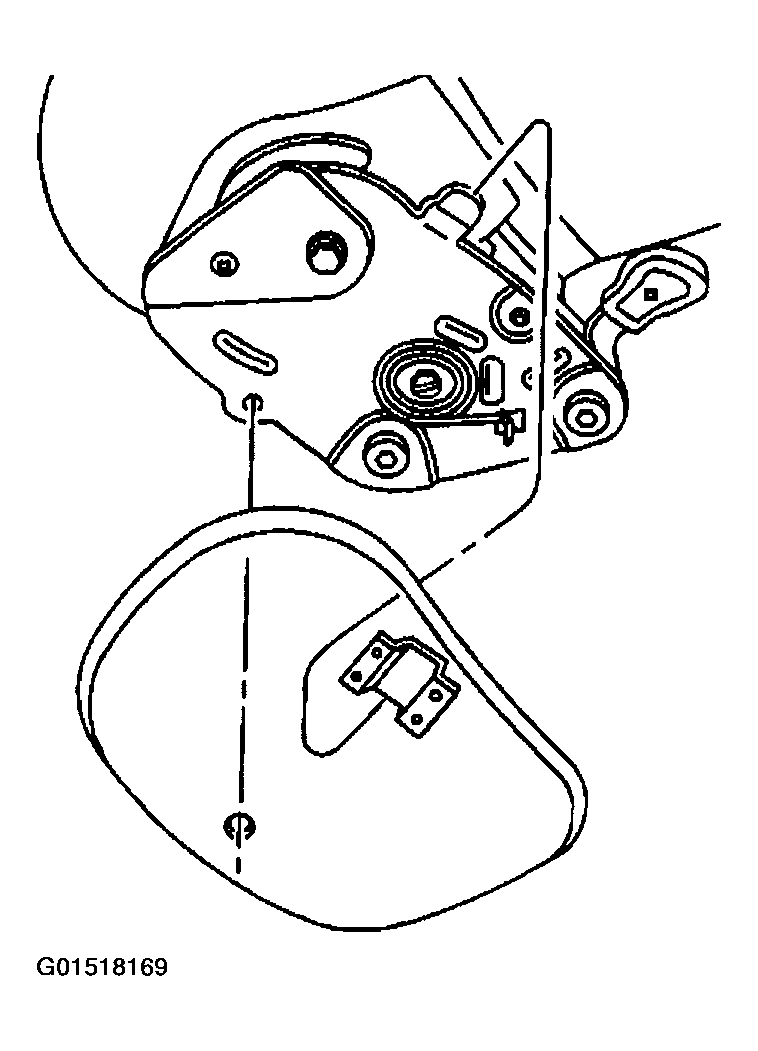

    Fig 1: Installing Rear Seat Cushion Trim Panel
    G01518169Courtesy of GENERAL MOTORS CORP.
  3. Install the screw to the rear seat cushion trim panel.

    Tighten

    Tighten the rear seat cushion trim panel screw to 2 N.m (18 lb in).

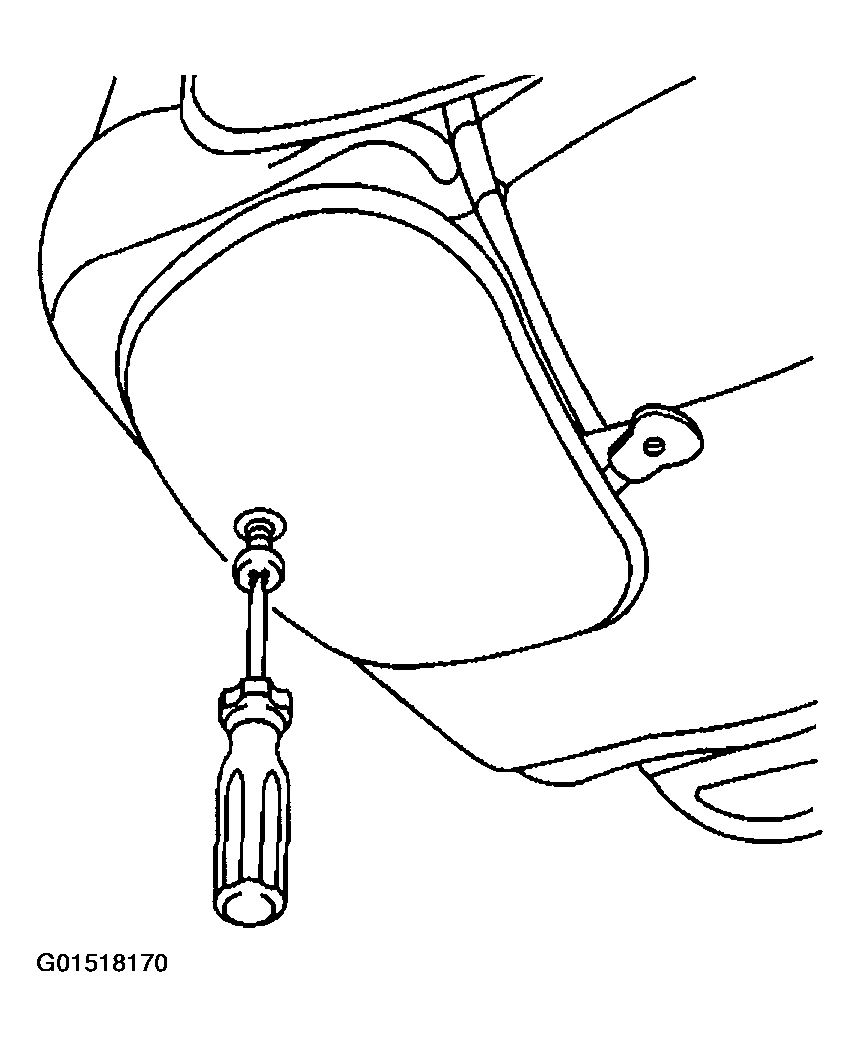

    Fig 2: Installing Screw To Rear Seat Cushion Trim Panel
    G01518170Courtesy of GENERAL MOTORS CORP.
