Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear seat cushion trim cover from the rear seat.
  2. Install the upper retainer clip to the seat frame, pressing into place until fully seated.

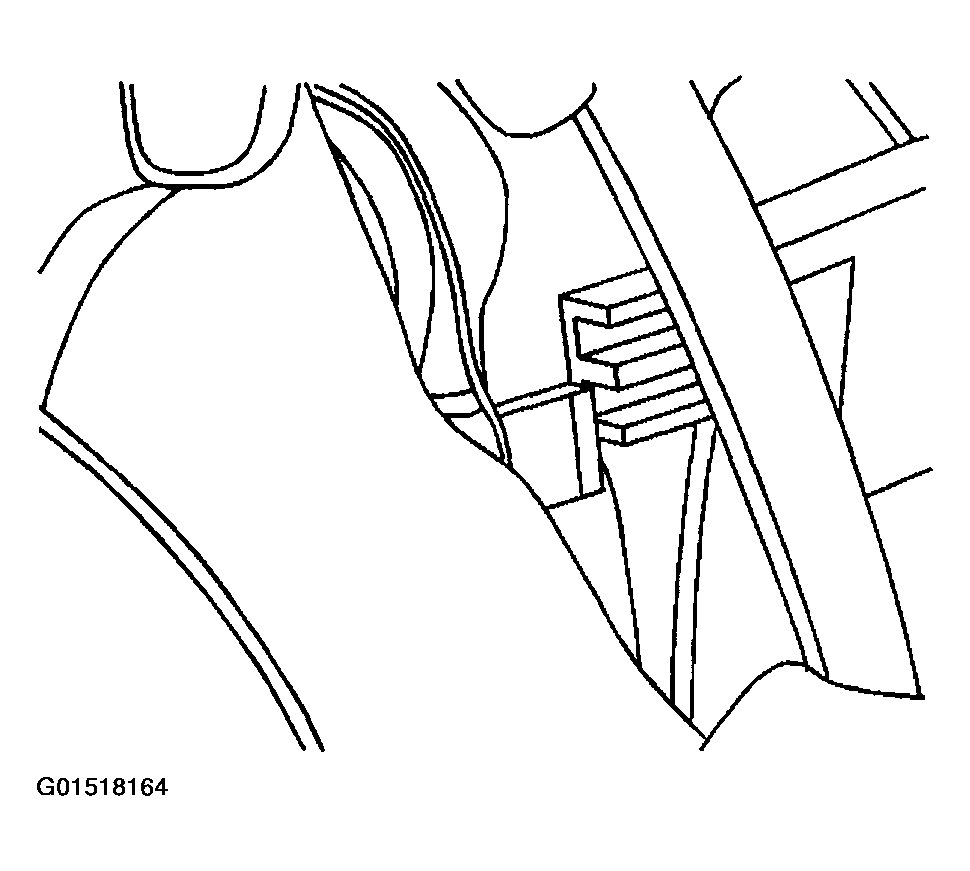

    Fig 1: Positioning Rear Seat Cushion Trim Cover From Rear Seat
    G01518164Courtesy of GENERAL MOTORS CORP.
  3. Install the rear screw to the seat cushion trim cover.

    Tighten

    Tighten the rear seat cushion trim cover screw to 2 N.m (18 lb in).

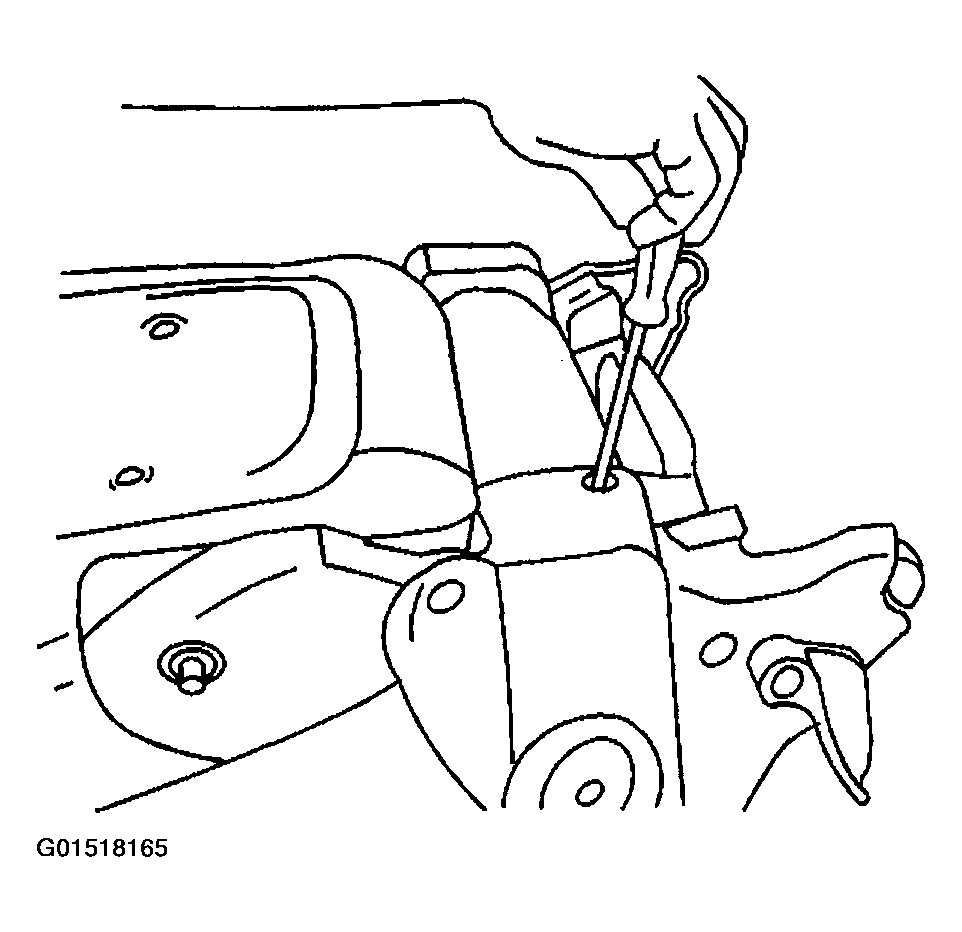

    Fig 2: Installing Rear Screw To Seat Cushion Trim Cover
    G01518165Courtesy of GENERAL MOTORS CORP.
  4. Install the rear seat recliner handle.
  5. Install the rear bucket seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BUCKET  .

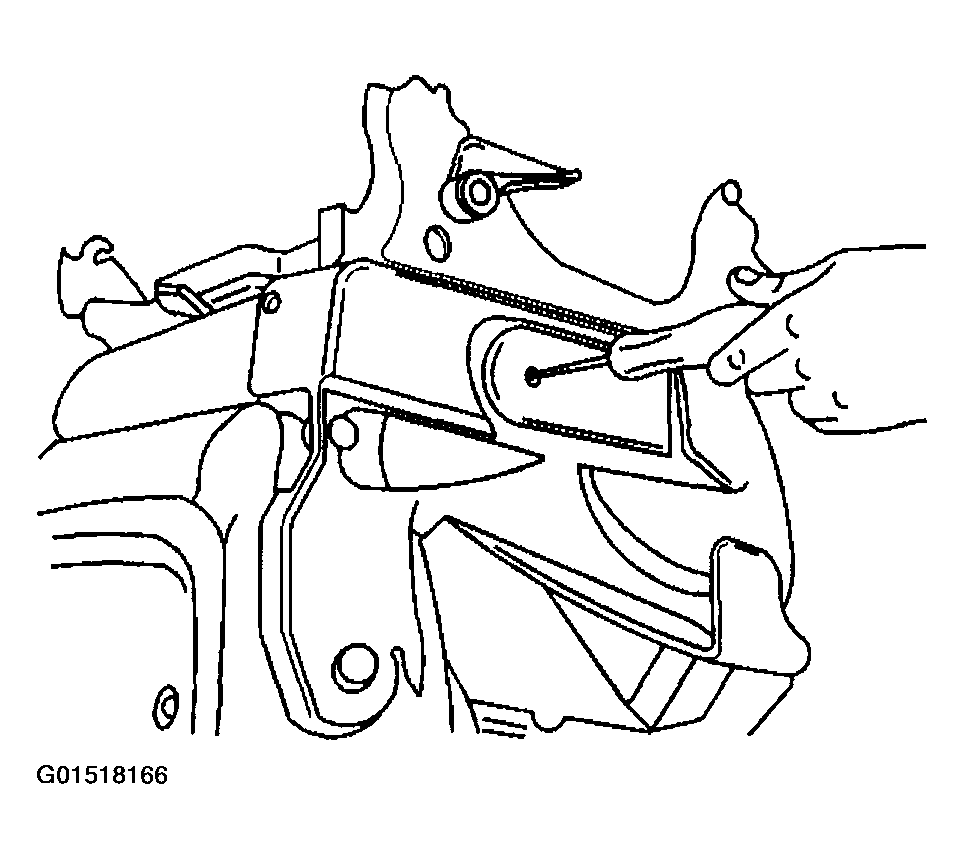

    Fig 3: Installing Rear Seat Recliner Handle
    G01518166Courtesy of GENERAL MOTORS CORP.
