Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bucket seat from the vehicle. Refer to SEAT REPLACEMENT - REAR BUCKET  .
  2. Remove the rear screw from the rear seat cushion trim cover.

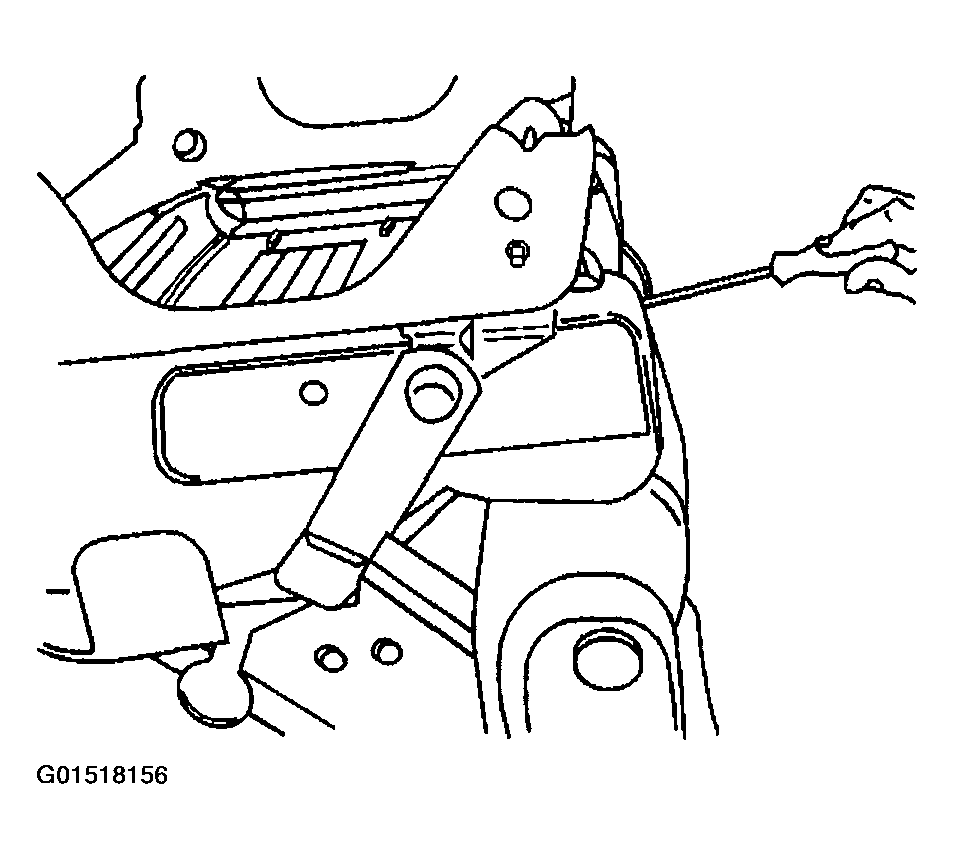

    Fig 1: Removing Rear Screw From Rear Seat Cushion Trim Cover
    G01518156Courtesy of GENERAL MOTORS CORP.
  3. Remove the front screw from the rear seat cushion trim cover.
  4. Remove the rear seat belt buckle.

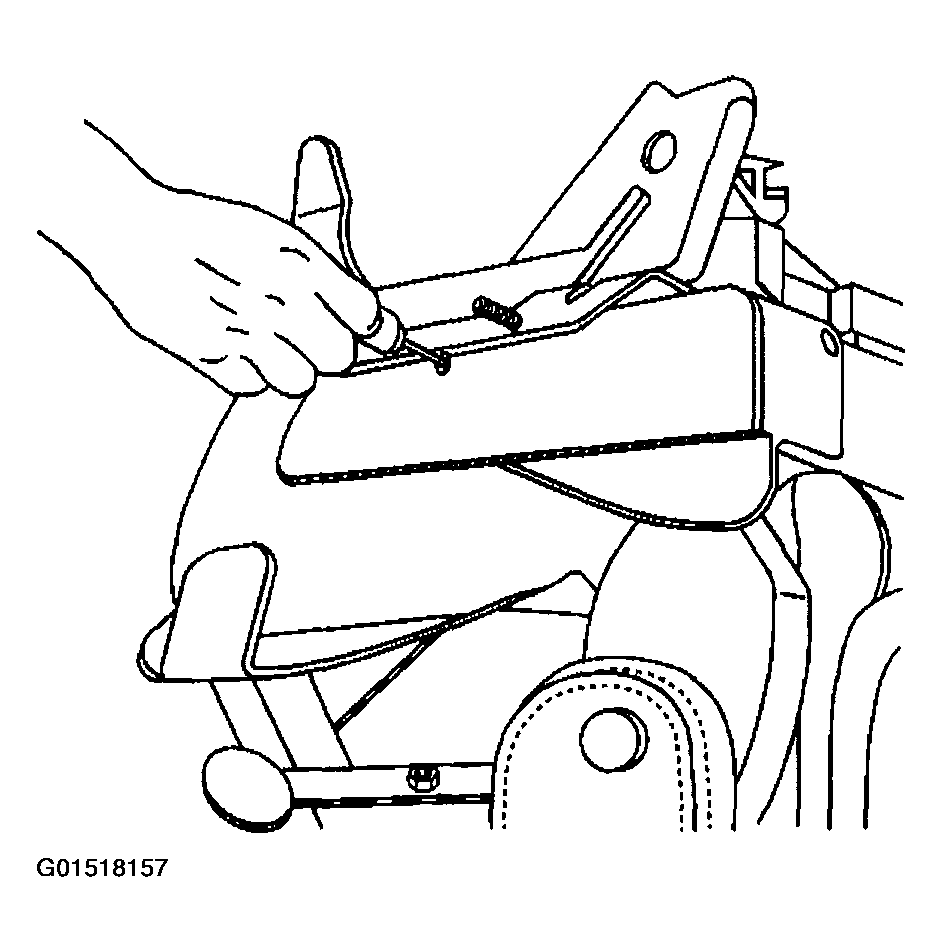

    Fig 2: Removing Front Screw From Rear Seat Cushion Trim Cover
    G01518157Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear seat cushion trim cover from the rear seat.

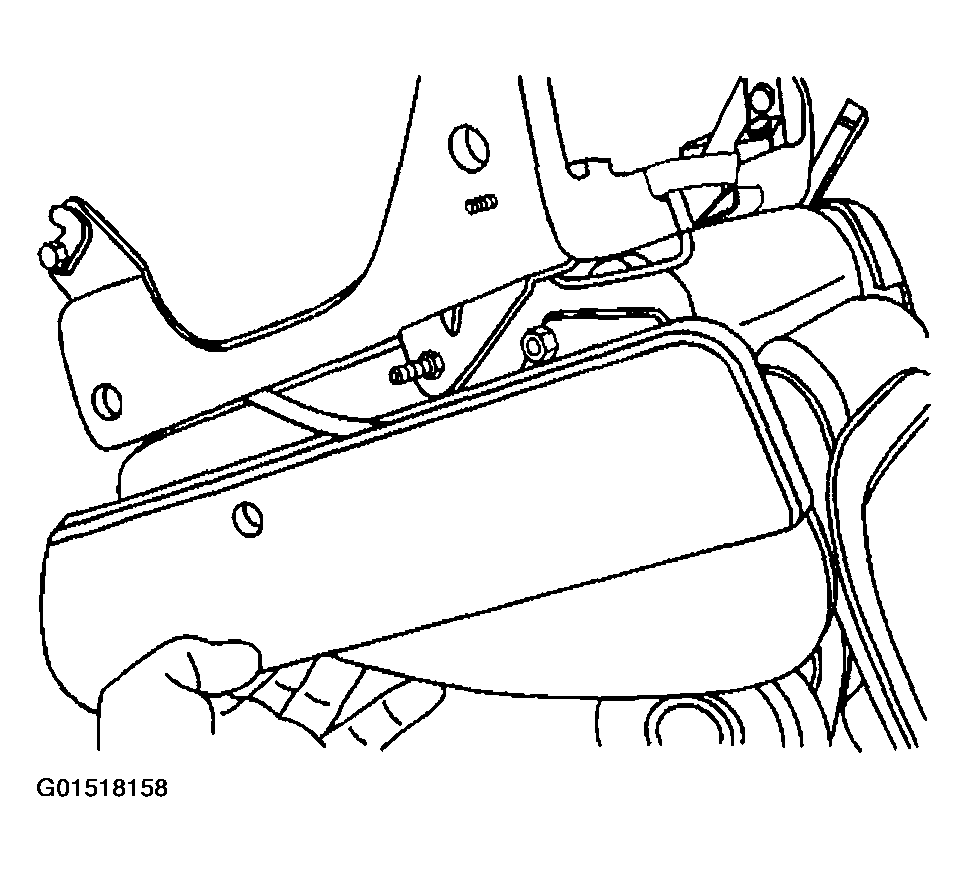

    Fig 3: Removing Rear Seat Cushion Trim Cover From Rear Seat
    G01518158Courtesy of GENERAL MOTORS CORP.
