Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the front seat back. Refer to SEAT BACK REPLACEMENT - FRONT  .
  3. Remove the front seat adjuster. Refer to SEAT ADJUSTER REPLACEMENT - FRONT  .
  4. Disconnect the electrical connector for the heated seat, if equipped.
  5. Remove the J-hook retainers on the front of the front seat cushion cover.

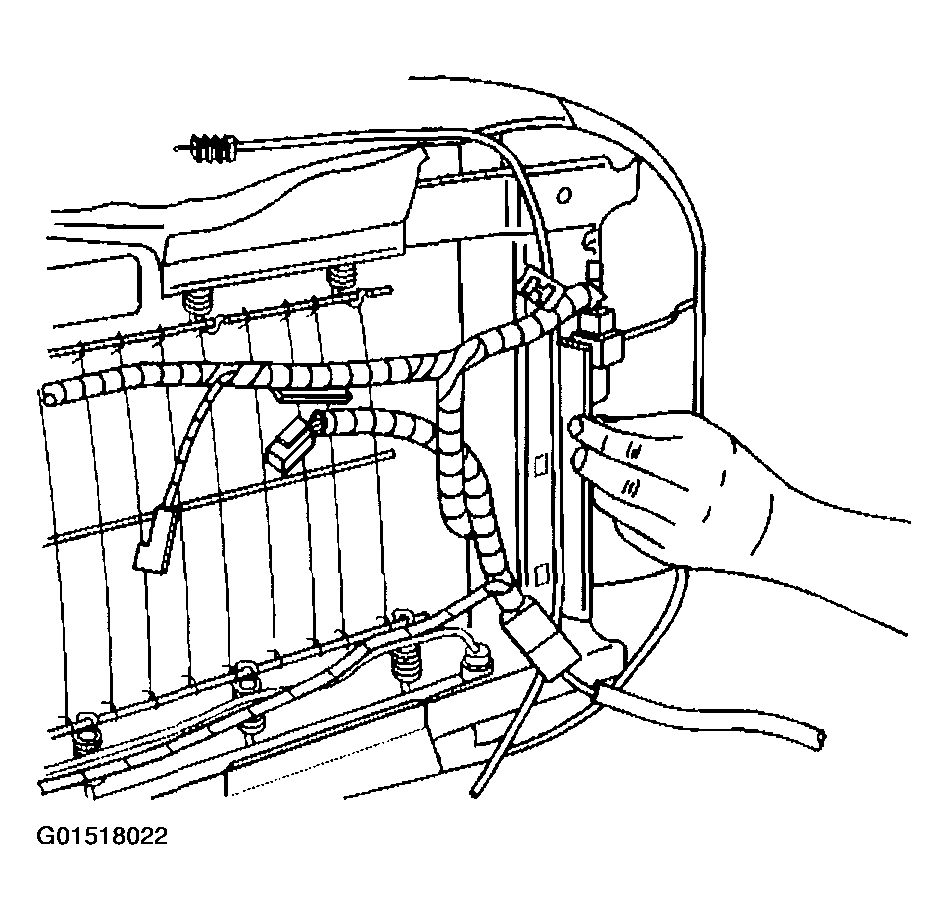

    Fig 1: Removing J-Hook Retainers On Front Of Front Seat Cushion Cover
    G01518022Courtesy of GENERAL MOTORS CORP.
  6. Remove the J-hook retainers on the sides of the front seat cushion cover.

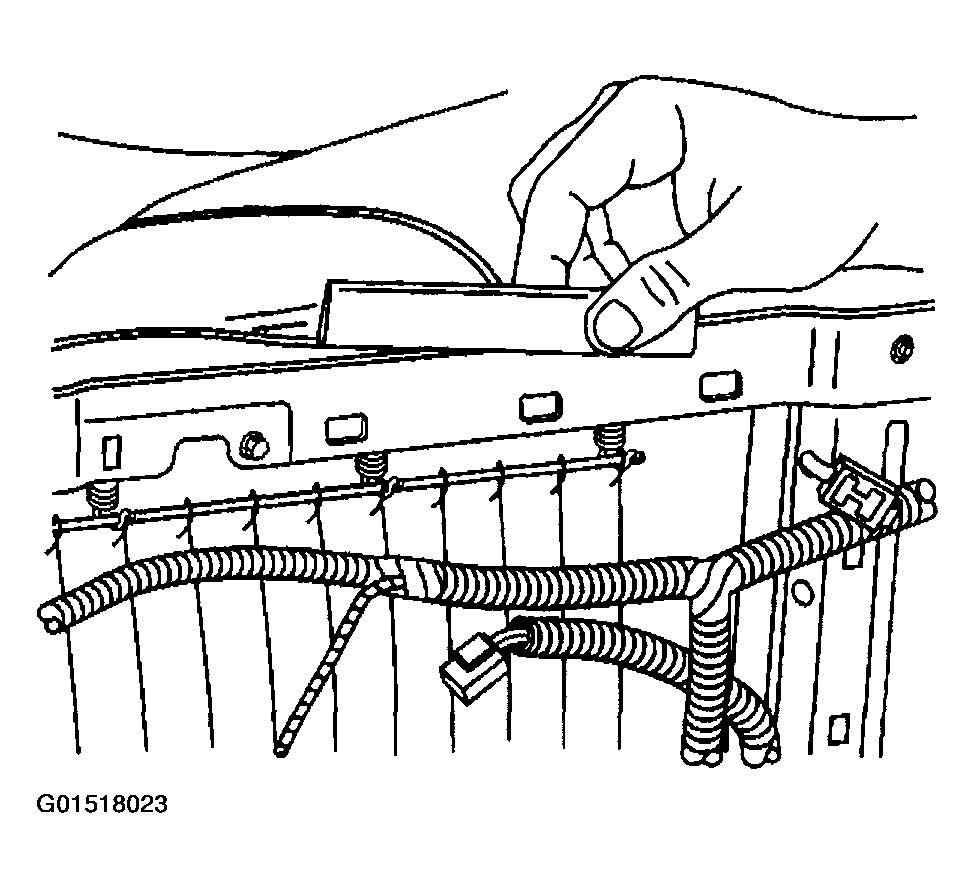

    Fig 2: Removing J-Hook Retainers On Sides Of Front Seat Cushion Cover
    G01518023Courtesy of GENERAL MOTORS CORP.
  7. Removing the J-hook retainers on the rear of the front seat cushion cover

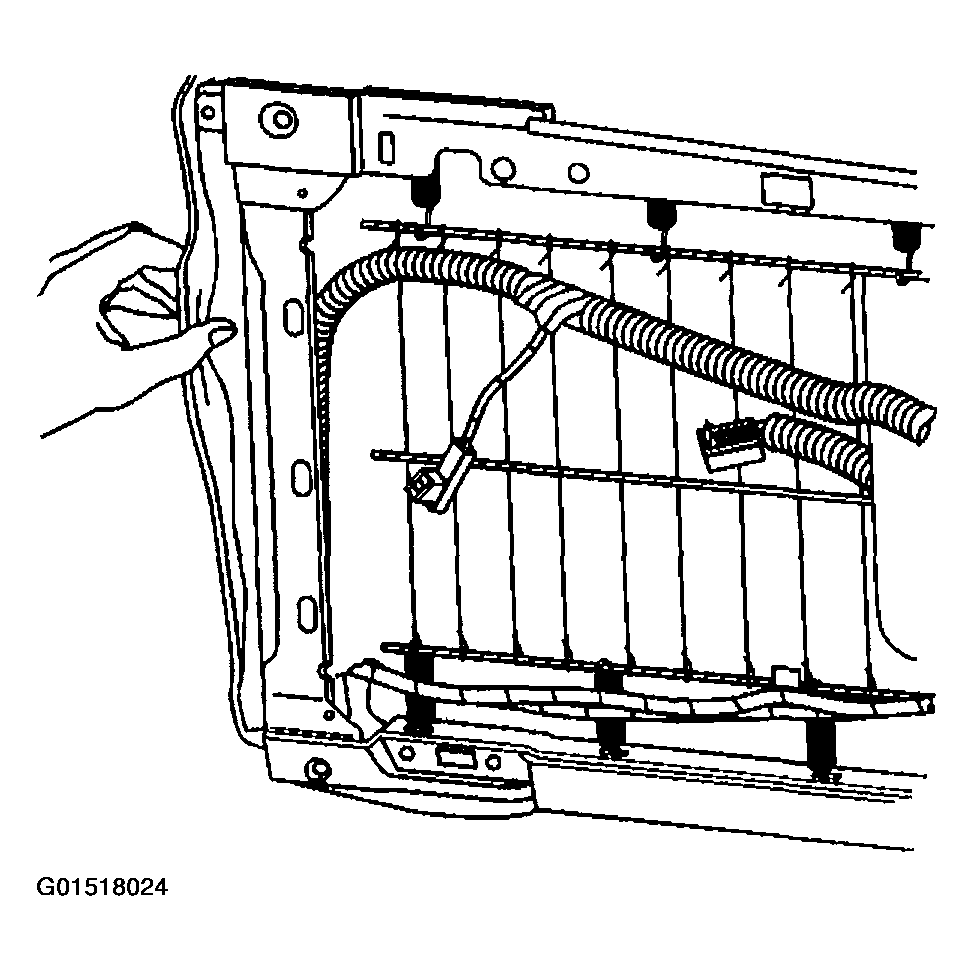

    Fig 3: Removing J-Hook Retainers On Rear Of Front Seat Cushion Cover
    G01518024Courtesy of GENERAL MOTORS CORP.
  8. Remove the hook and the loop retainers securing the seat cushion cover to the cushion.
    Fig 4: Removing Hook And Loop Retainers
    G01518025Courtesy of GENERAL MOTORS CORP.
  9. Remove the hog rings from the front seat cushion cover.
  10. Remove the front seat cushion cover from the front seat cushion.

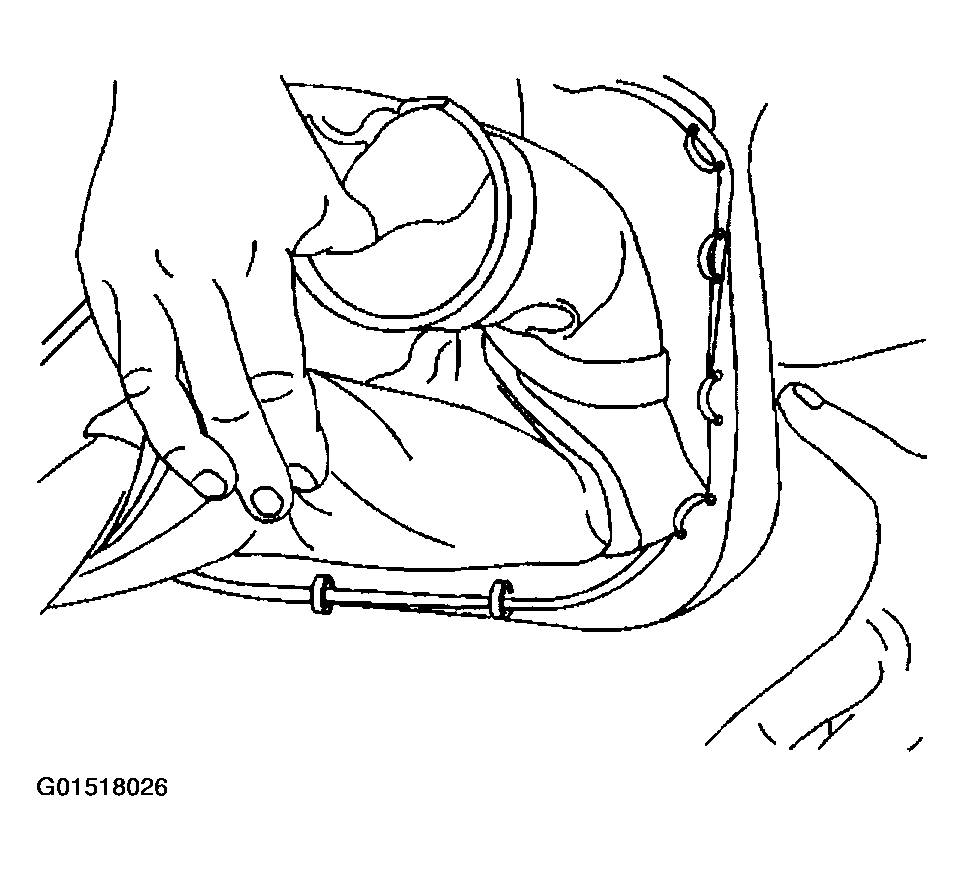

    Fig 5: Removing Front Seat Cushion Cover From Front Seat Cushion
    G01518026Courtesy of GENERAL MOTORS CORP.
