Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (AZTEK)  or TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (RENDEZVOUS)  .
  2. Remove the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (AZTEK)  .

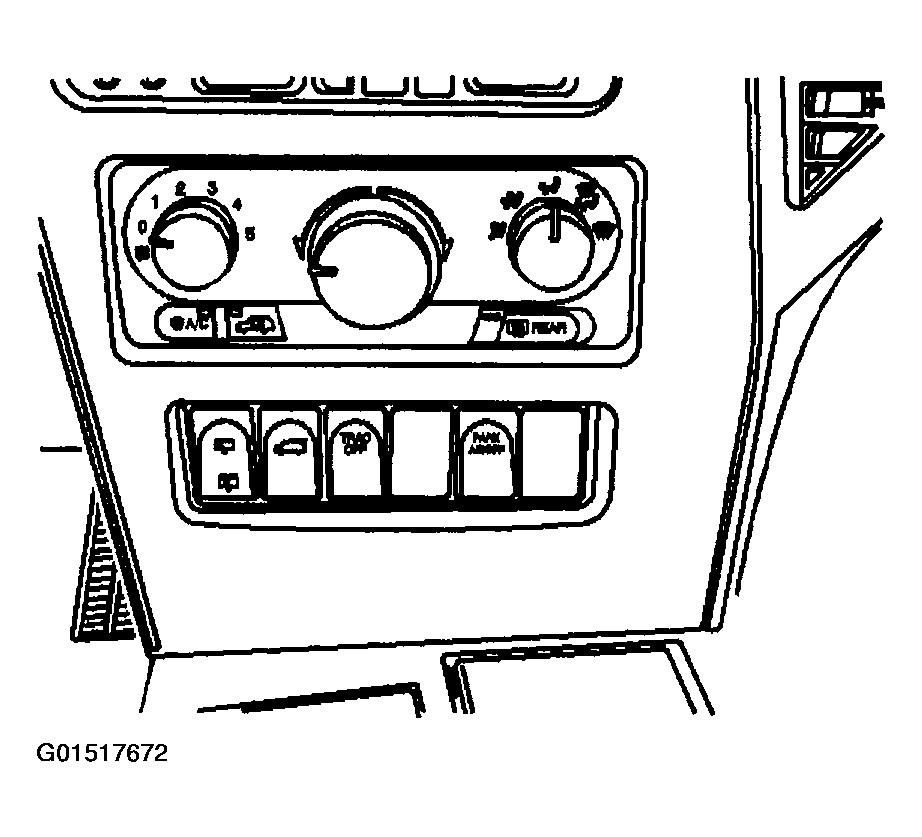

    Fig 1: Locating Instrument Panel Multifunction Switch Assembly
    G01517672Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts from the switch assembly.
    Fig 2: Removing Bolts From Switch Assembly
    G01517673Courtesy of GENERAL MOTORS CORP.
  4. Remove the electrical connectors from the switch assembly.
  5. Remove the switch assembly.

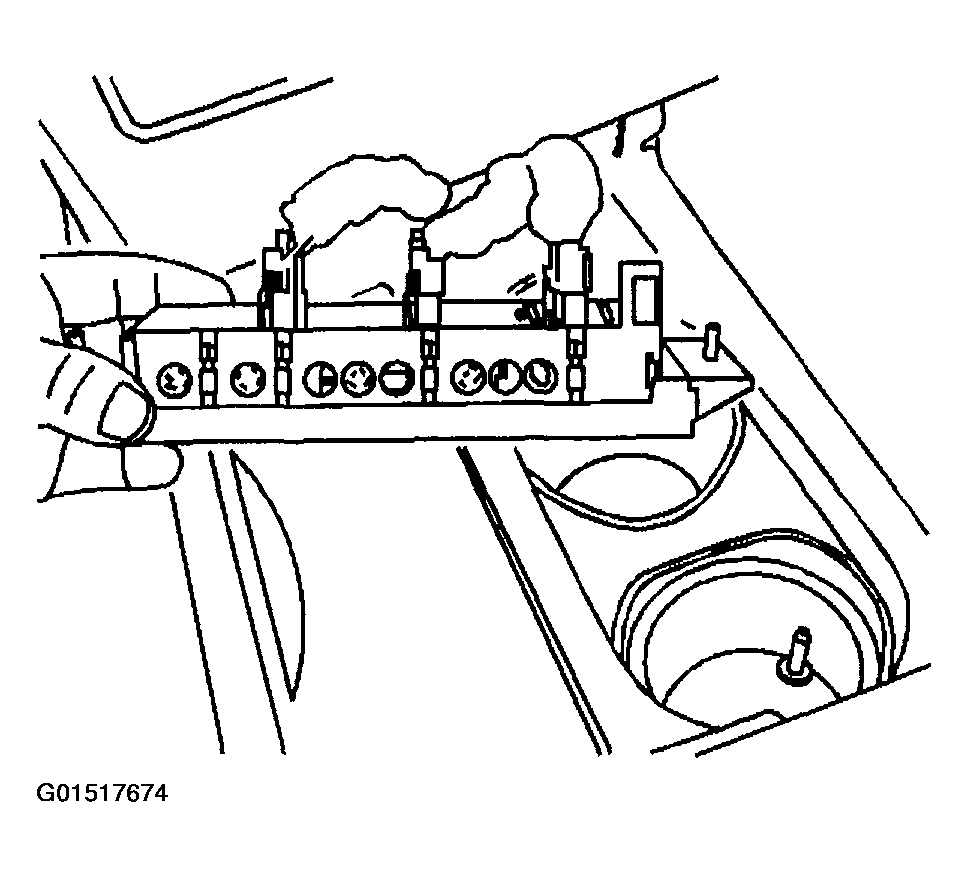

    Fig 3: Removing Switch Assembly
    G01517674Courtesy of GENERAL MOTORS CORP.
