Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (AZTEK)  or TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (RENDEZVOUS)  .
  2. Disconnect the electrical connectors.
  3. Remove the nuts from the side of the front floor console.
  4. Remove the nuts from the rear of the front floor console.

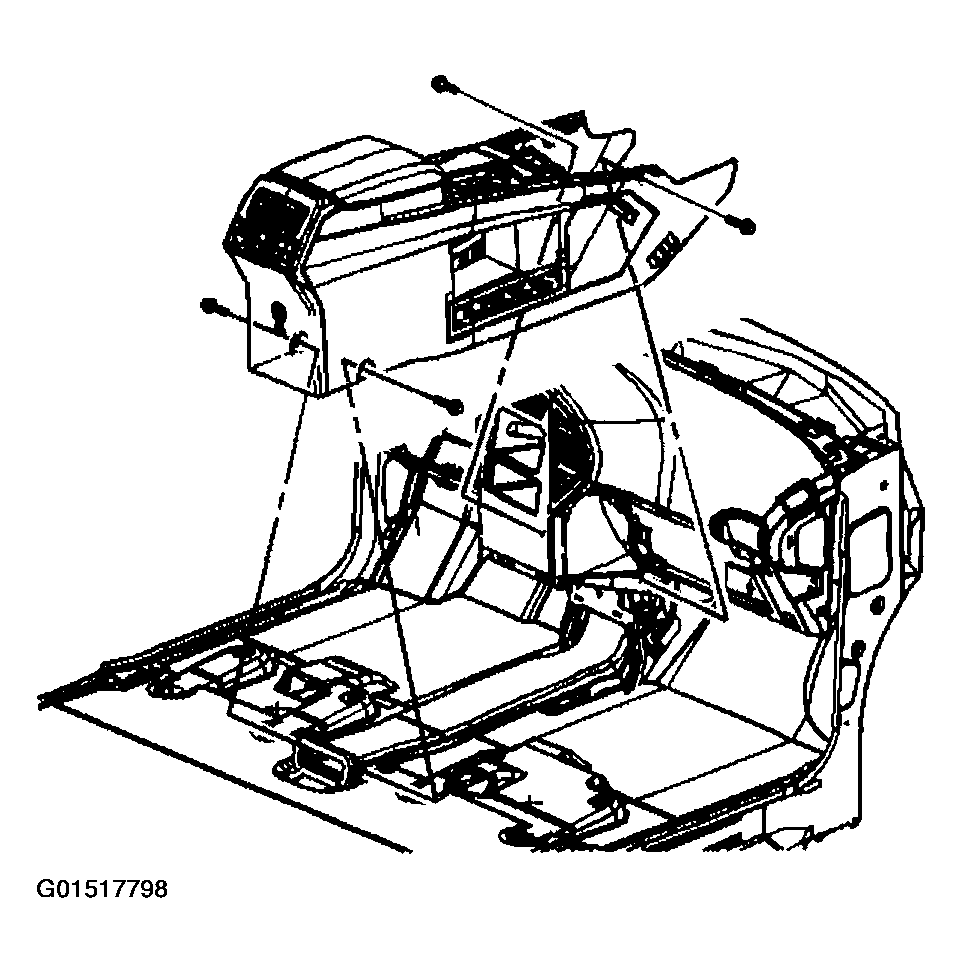

    Fig 1: Removing Retainers Of Front Floor Console
    G01517798Courtesy of GENERAL MOTORS CORP.
  5. Lift straight up on the front floor console and pull back in order to remove the console from the vehicle.

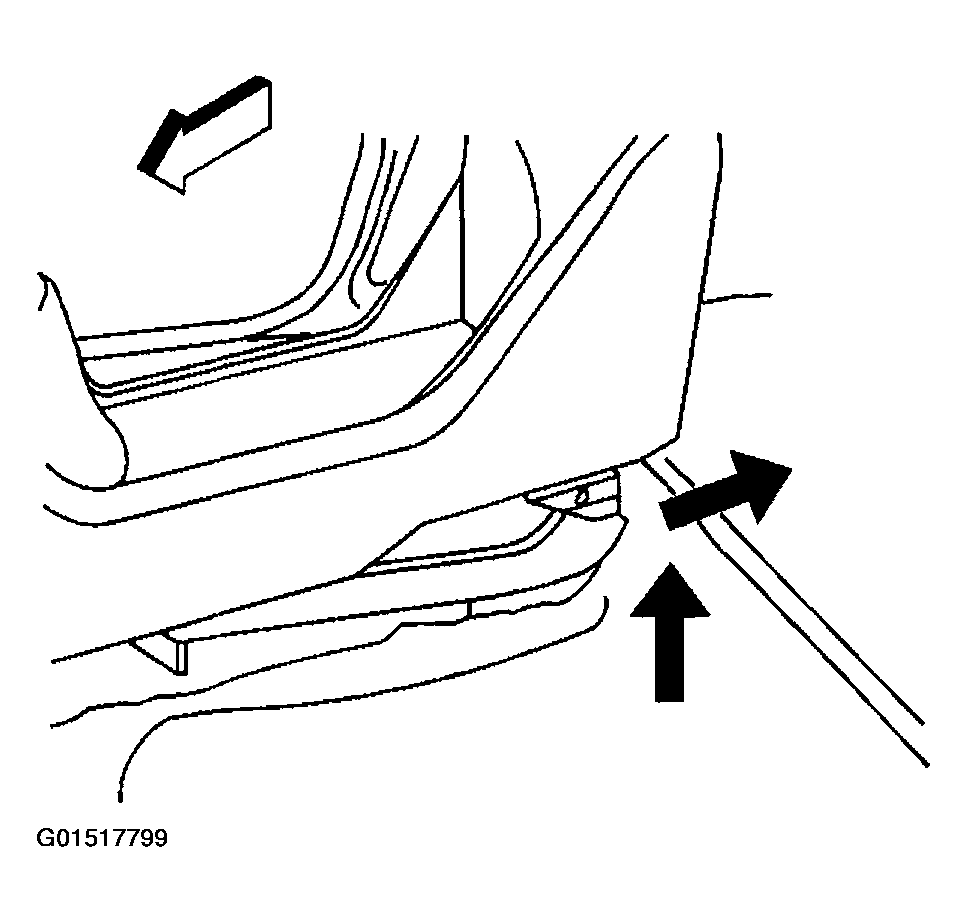

    Fig 2: Removing Console From Vehicle
    G01517799Courtesy of GENERAL MOTORS CORP.
