Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the wiring harness (224).

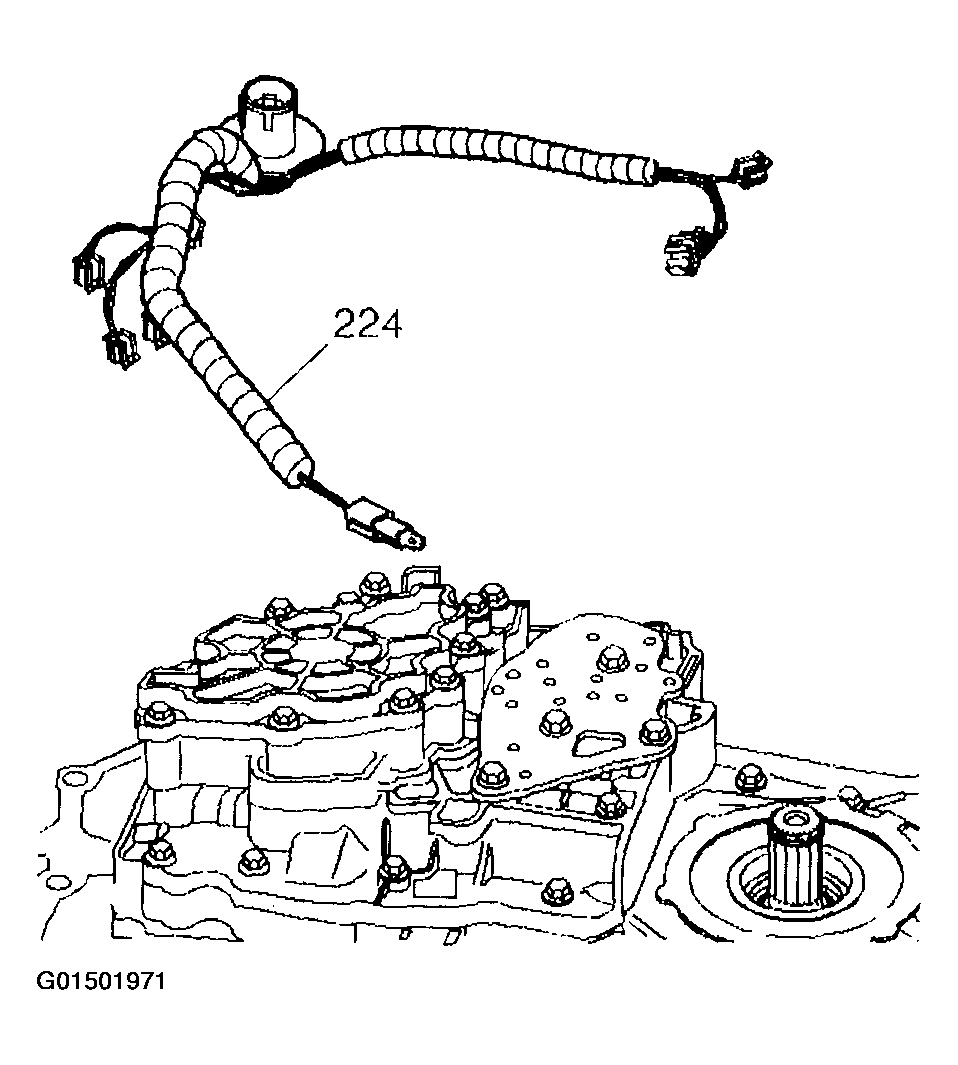

    Fig 1: Installing Wiring Harness (1 Of 2)
    G01501971Courtesy of GENERAL MOTORS CORP.
  2. Install the wiring harness to the solenoid valve(s) (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and/or the temperature sensor (391).
  3. Install the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .

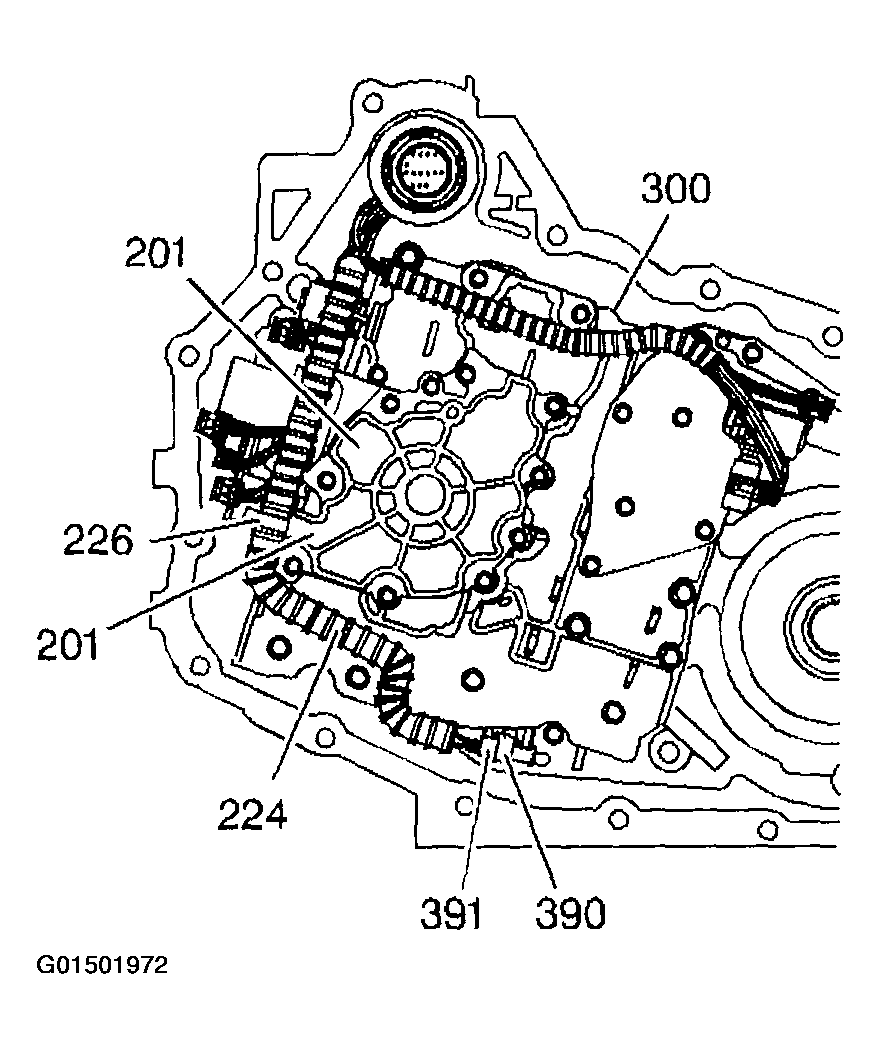

    Fig 2: Installing Wiring Harness (2 Of 2)
    G01501972Courtesy of GENERAL MOTORS CORP.
