Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the throttle body air inlet duct.
  2. Use a flat-bladed tool in order to remove the automatic transaxle range selector cable from the cable lever and the bracket. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE REPLACEMENT  .
  3. Remove the automatic transaxle range selector cable bracket bolts.
  4. Remove the automatic transaxle range selector cable bracket.

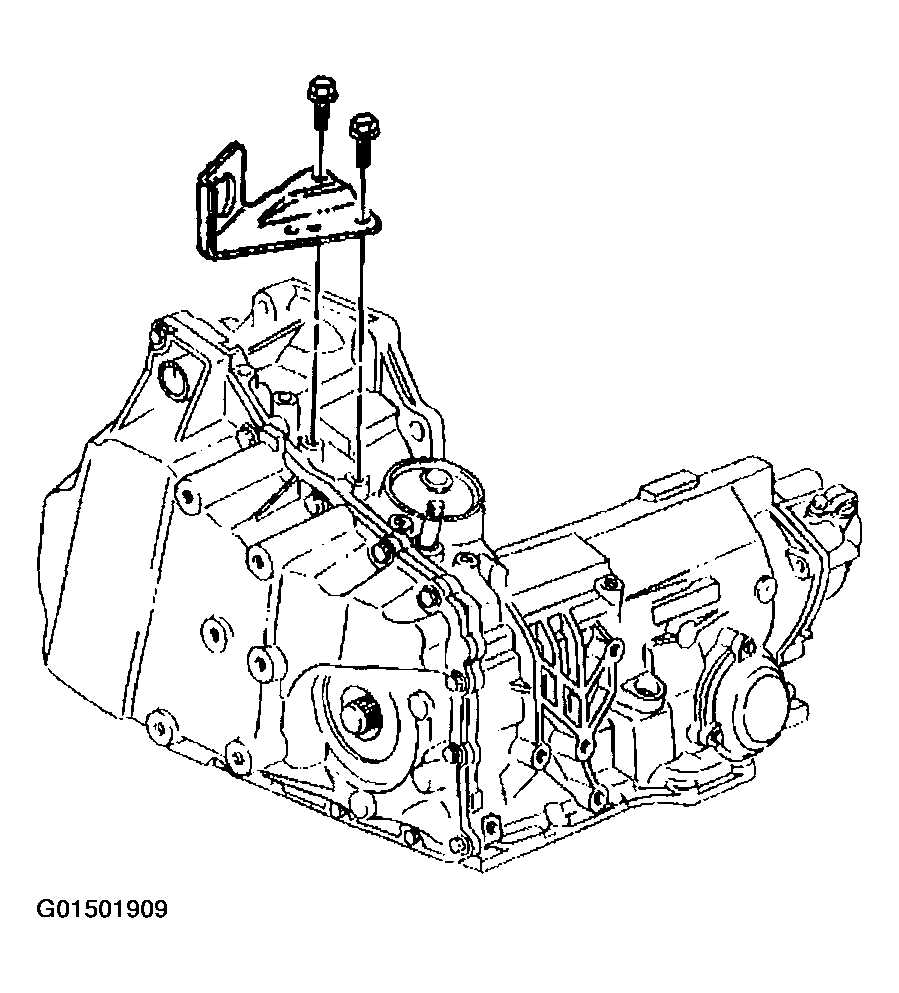

    Fig 1: Removing Automatic Transmission Range Selector Cable Bracket
    G01501909Courtesy of GENERAL MOTORS CORP.
