Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the 2-3 shift solenoid (315B).
  2. Connect the transaxle wiring harness.
  3. Install the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .

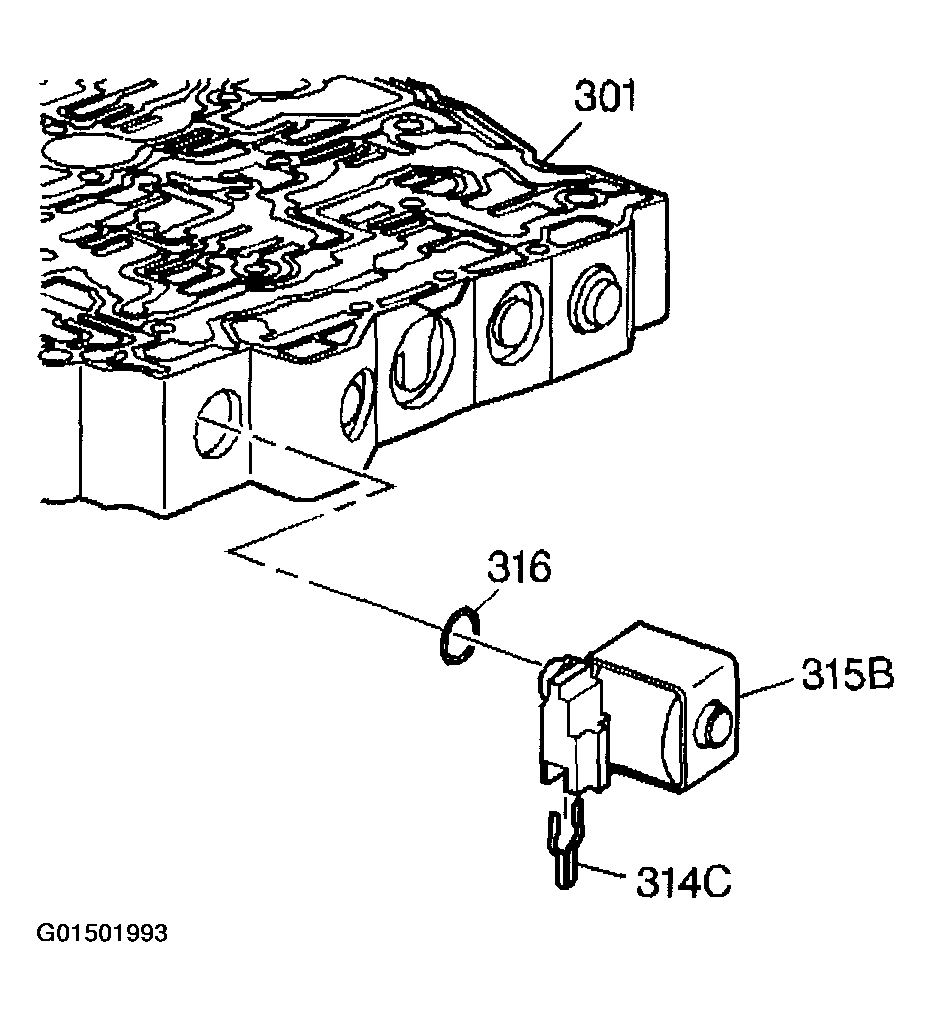

    Fig 1: Installing 2-3 Shift Solenoid Valve
    G01501993Courtesy of GENERAL MOTORS CORP.
