DTC P0758: PCM Solenoid Command Mismatch: Notes

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

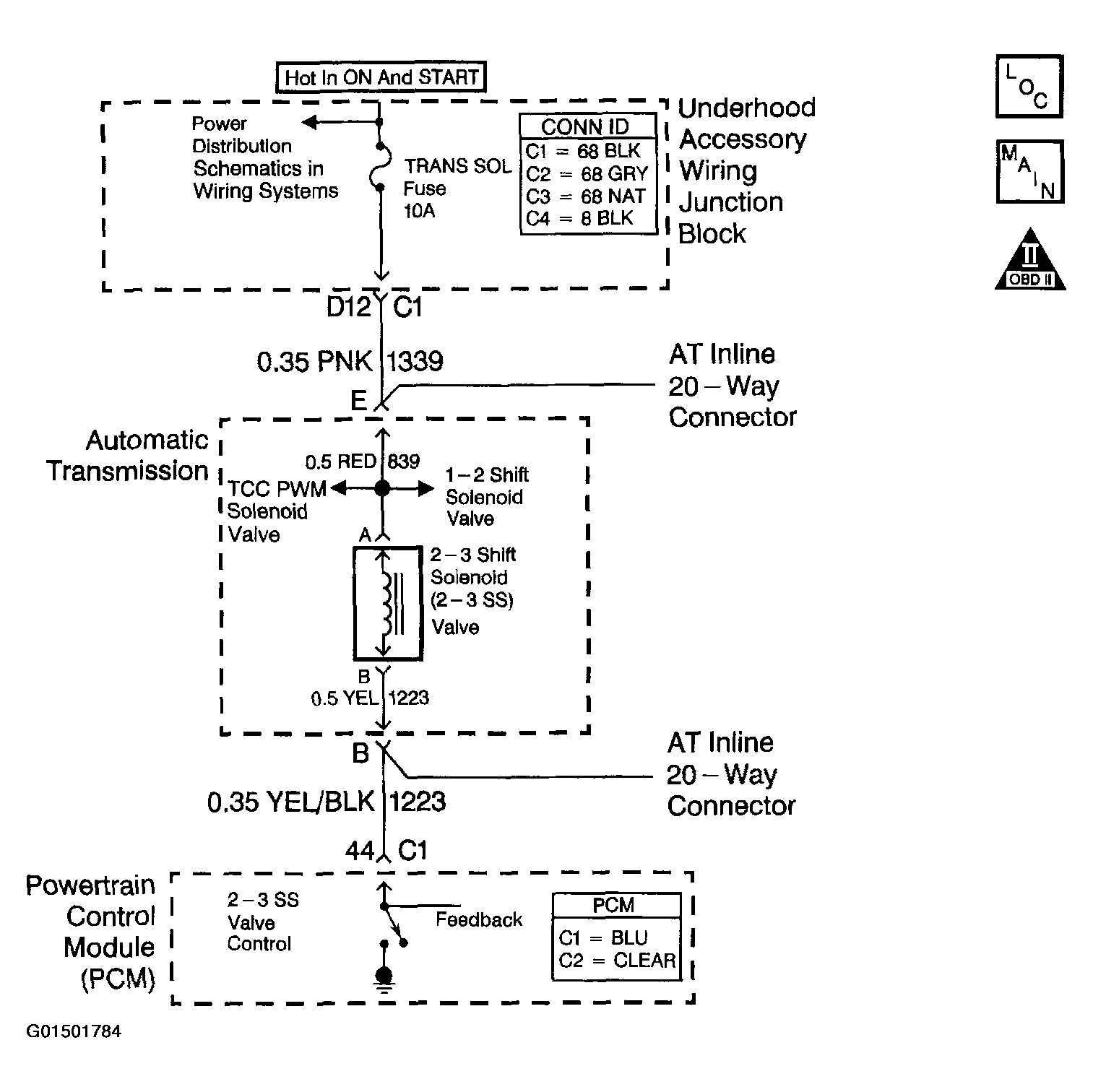

Fig 1: 2-3 Shift Solenoid Circuit Diagram
G01501784Courtesy of GENERAL MOTORS CORP.
