Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT  .
  2. Remove the drive belt tensioner bolt.
  3. Remove the drive belt tensioner.

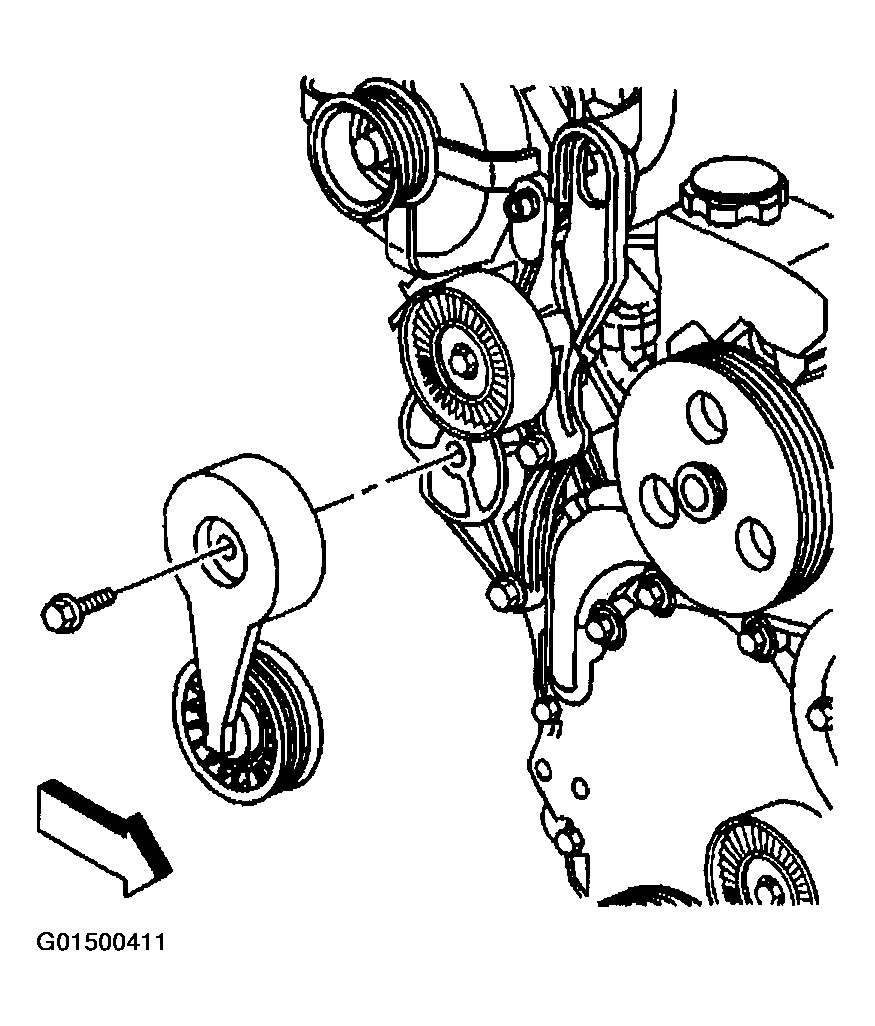

    Fig 1: Removing Drive Belt Tensioner
    G01500411Courtesy of GENERAL MOTORS CORP.
