Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the J 35468  and the crankshaft front oil seal with the engine front cover and crankshaft.
  2. Install the crankshaft front oil seal using the J 35468  and a suitable tool.
  3. Install the crankshaft balancer. Refer to CRANKSHAFT BALANCER REPLACEMENT  .

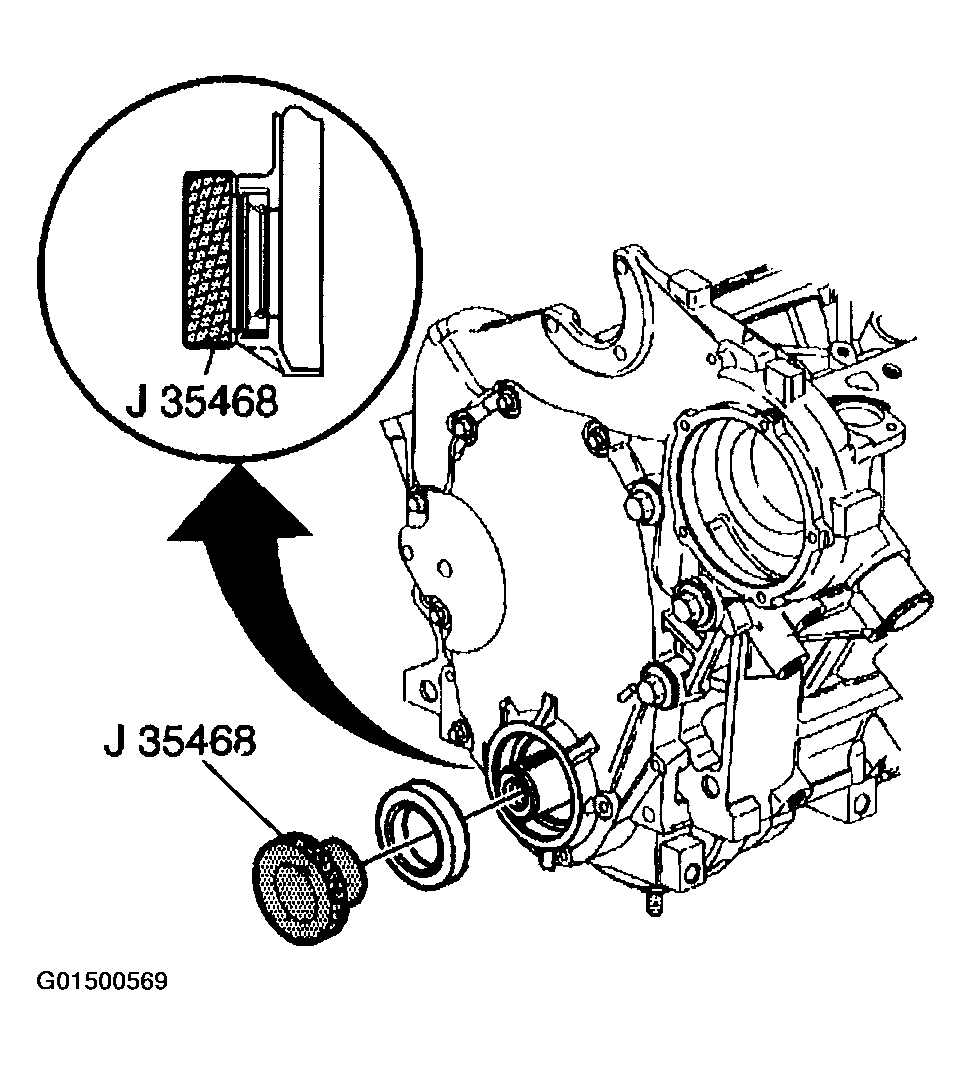

    Fig 1: Installing Crankshaft Front Oil Seal Using Crankshaft Front Oil Seal Installer (J 35468)
    G01500569Courtesy of GENERAL MOTORS CORP.
