Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plug wires.
  2. Remove the spark plugs.
  3. Remove the exhaust manifold heat shield bolts.
  4. Remove the exhaust manifold heat shield.

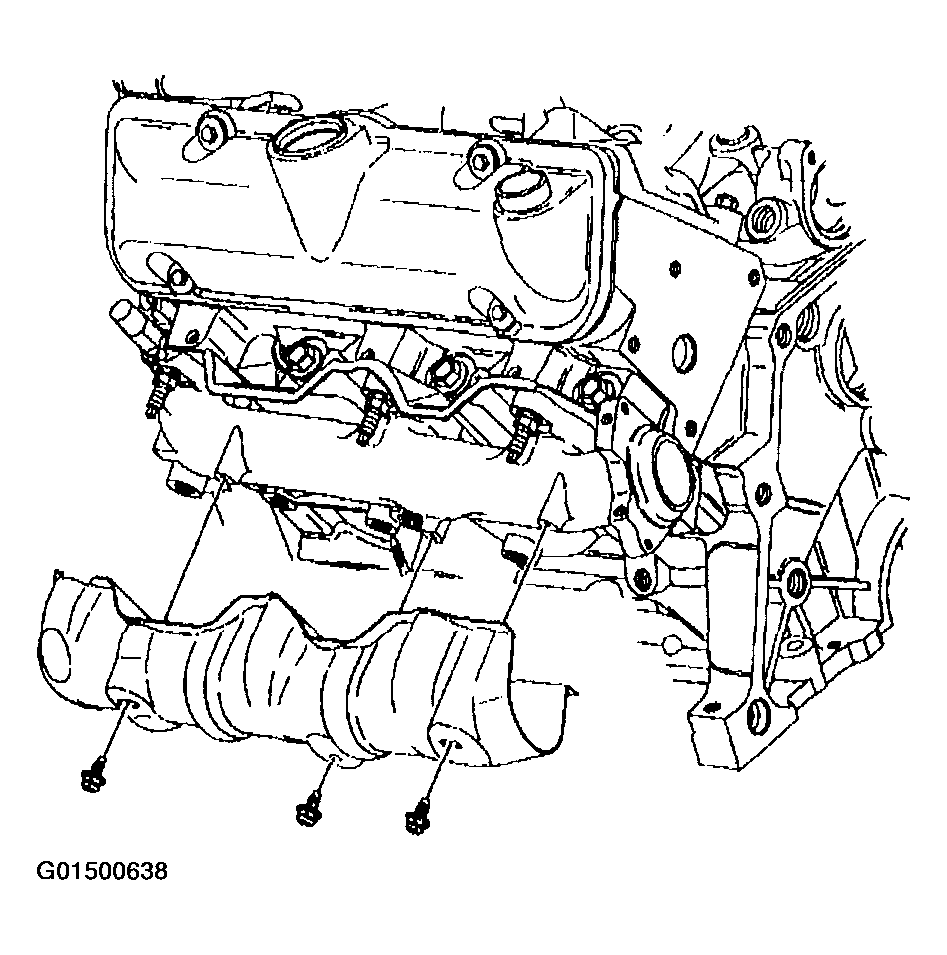

    Fig 1: Removing Left Exhaust Manifold Heat Shield
    G01500638Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust manifold nuts.
  6. Remove the exhaust manifold.
  7. Remove the exhaust manifold gasket.
  8. Remove the exhaust studs, if required.

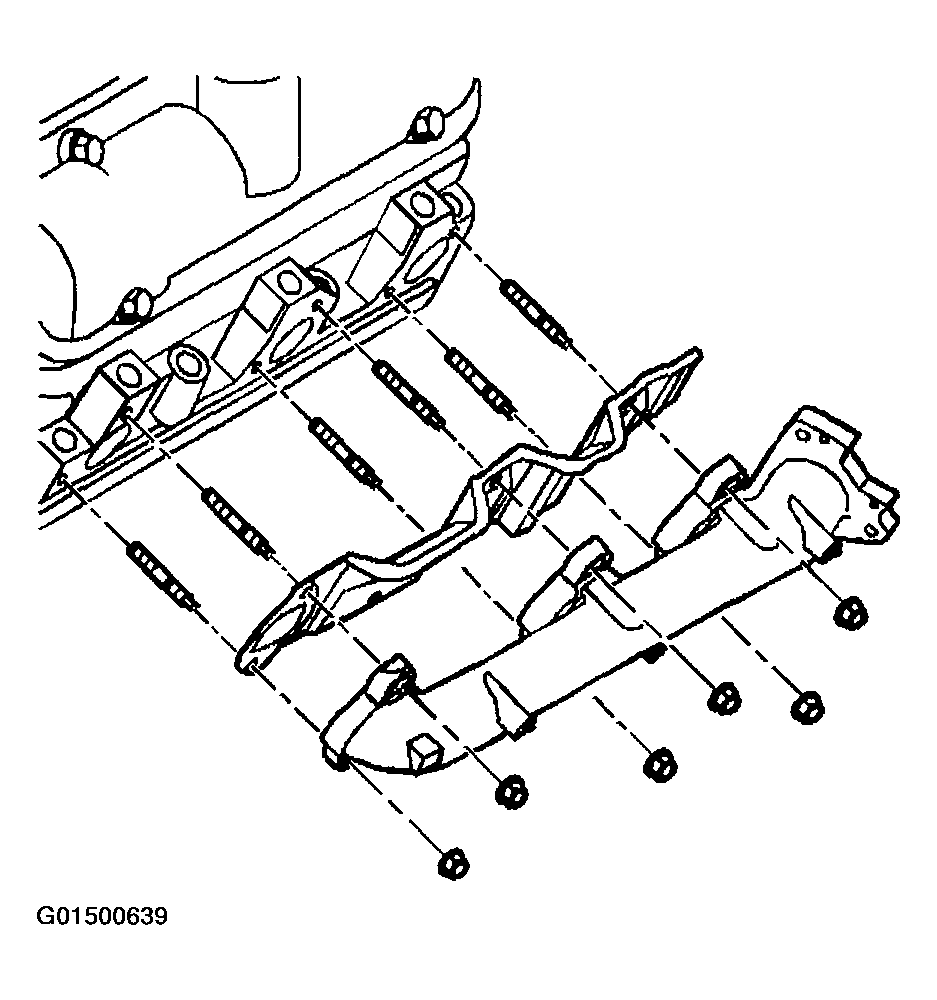

    Fig 2: Removing Left Exhaust Manifold And Manifold Gasket
    G01500639Courtesy of GENERAL MOTORS CORP.
