Drive Belt Chirping Diagnosis: Overview

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

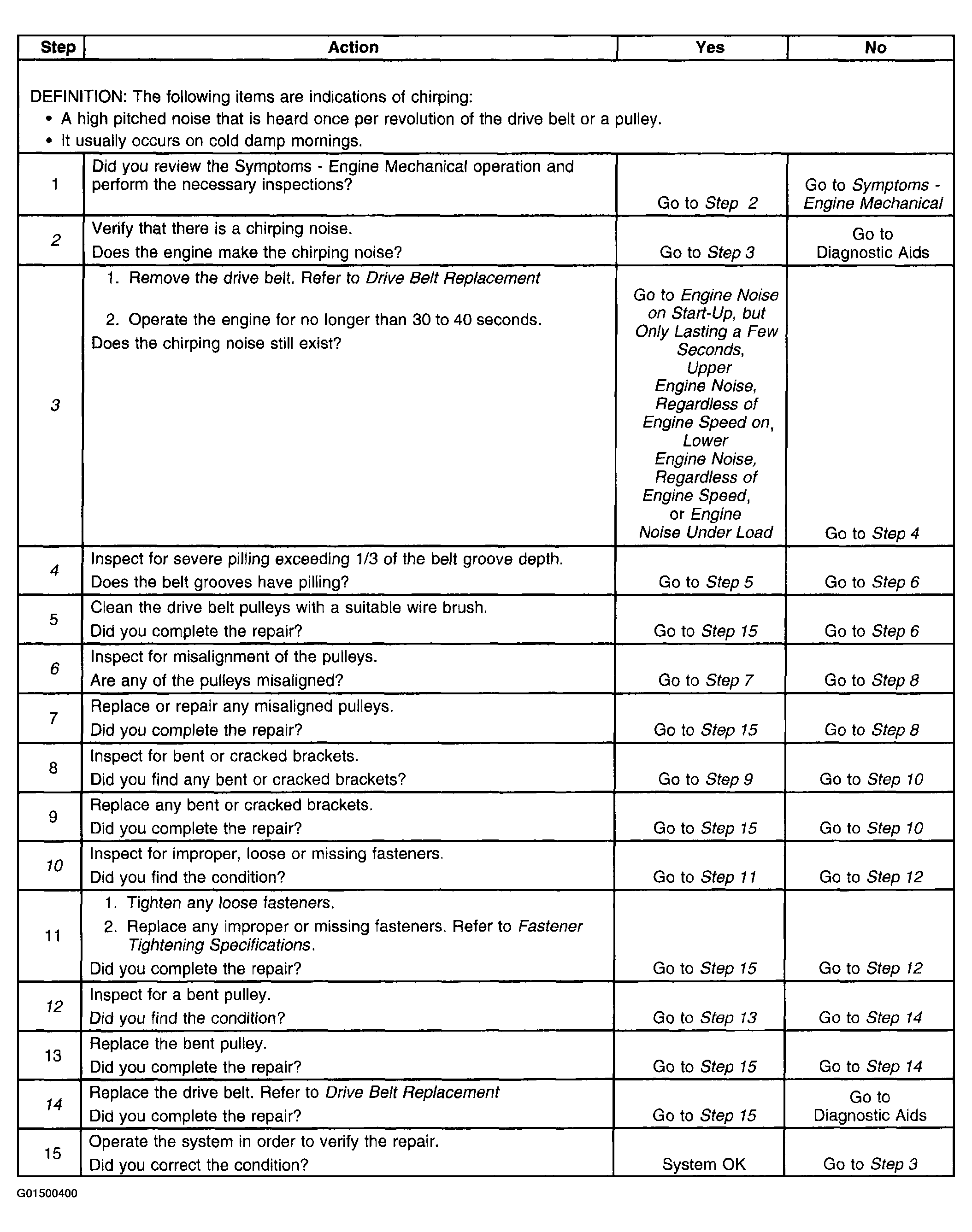

Fig 1: Drive Belt Chirping Diagnosis
G01500400Courtesy of GENERAL MOTORS CORP.
