Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater core cover. Refer to HEATER CORE COVER REPLACEMENT .
  2. Disconnect and remove the right hand mode door lever from the mode door.

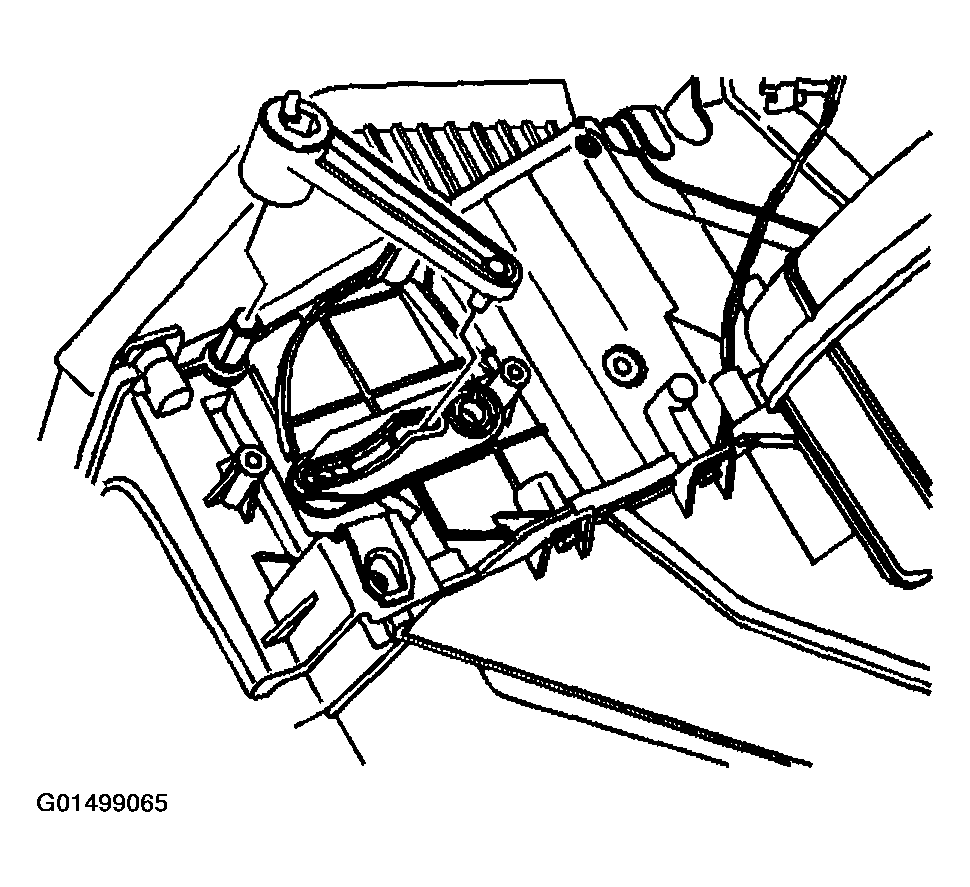

    Fig 1: Removing Right Hand Mode Door Lever
    G01499065Courtesy of GENERAL MOTORS CORP.
  3. Disconnect and remove the secondary mode door lever from the secondary mode door.

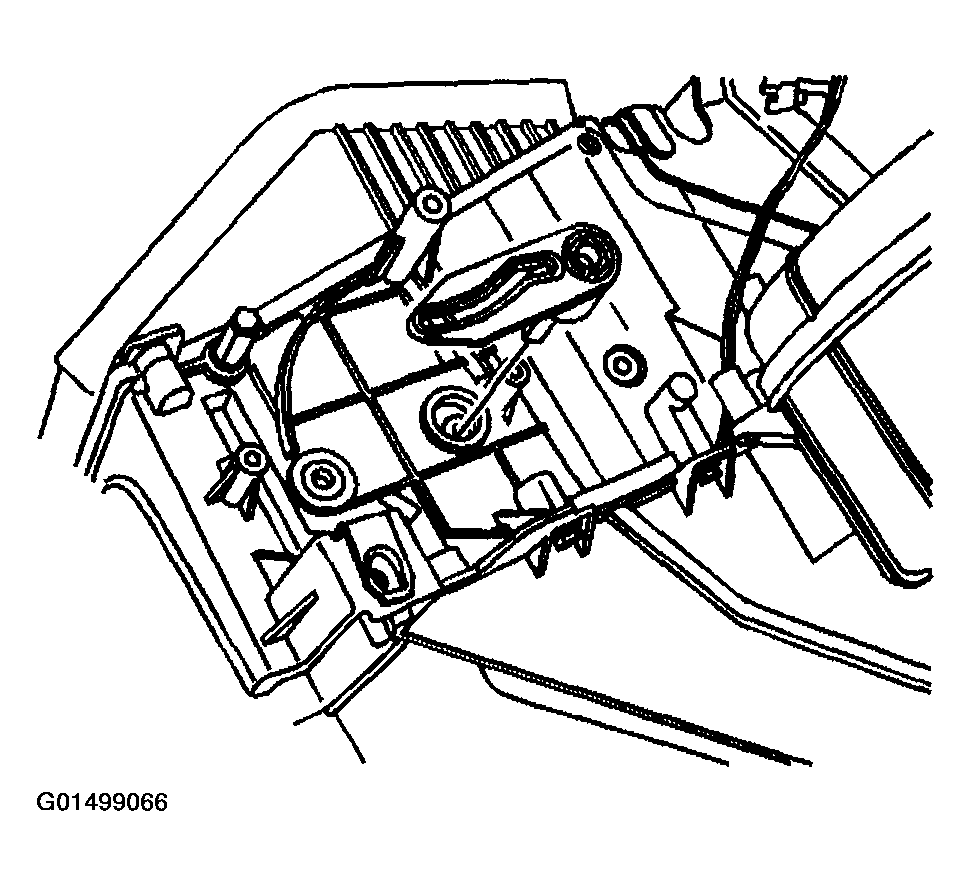

    Fig 2: Removing Secondary Mode Door Lever
    G01499066Courtesy of GENERAL MOTORS CORP.
  4. Remove the secondary mode door from the HVAC module.

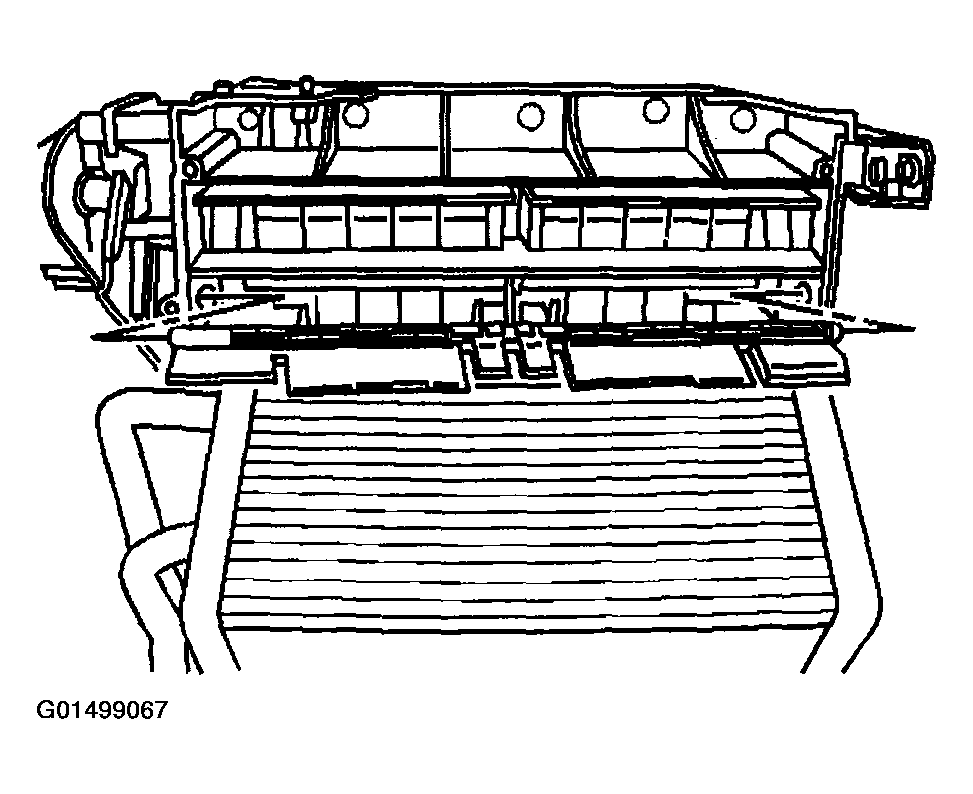

    Fig 3: Removing Secondary Mode Door
    G01499067Courtesy of GENERAL MOTORS CORP.
