Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the defroster outlet duct to the I/P carrier.
  2. Connect the defroster outlet duct retaining clips.
    Fig 1: Installing Defroster Outlet Duct Retaining Clips<
    G01498981Courtesy of GENERAL MOTORS CORP.
  3. Install the side window defogger ducts to the defroster outlet duct.
  4. Install the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .

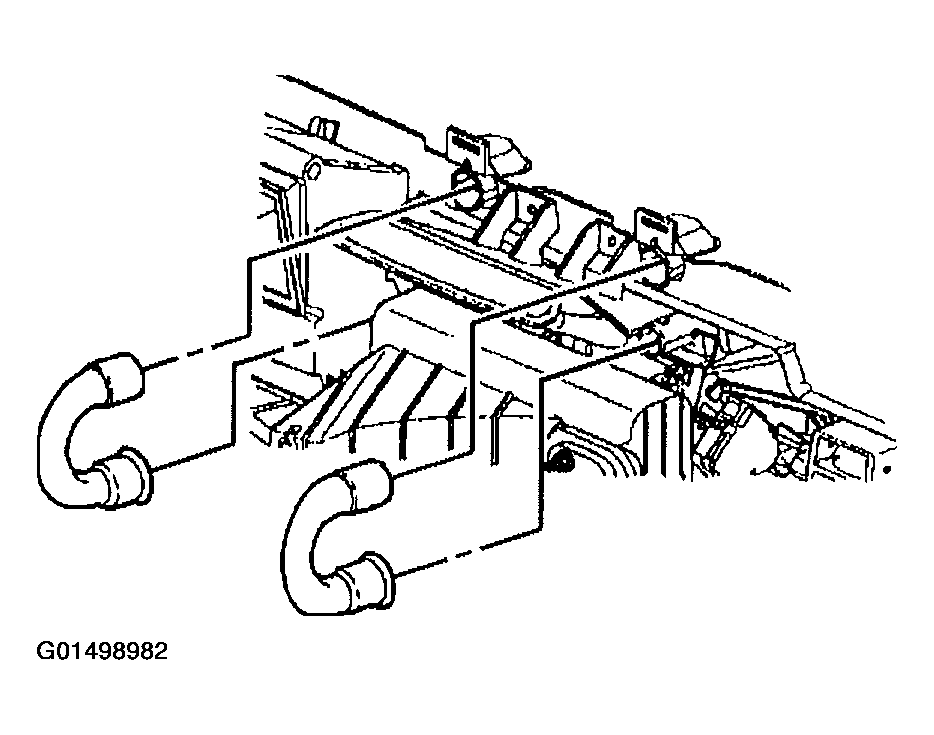

    Fig 2: Installing Side Window Defogger Ducts To Defroster Outlet Duct
    G01498982Courtesy of GENERAL MOTORS CORP.
