Heating Performance Diagnostic

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

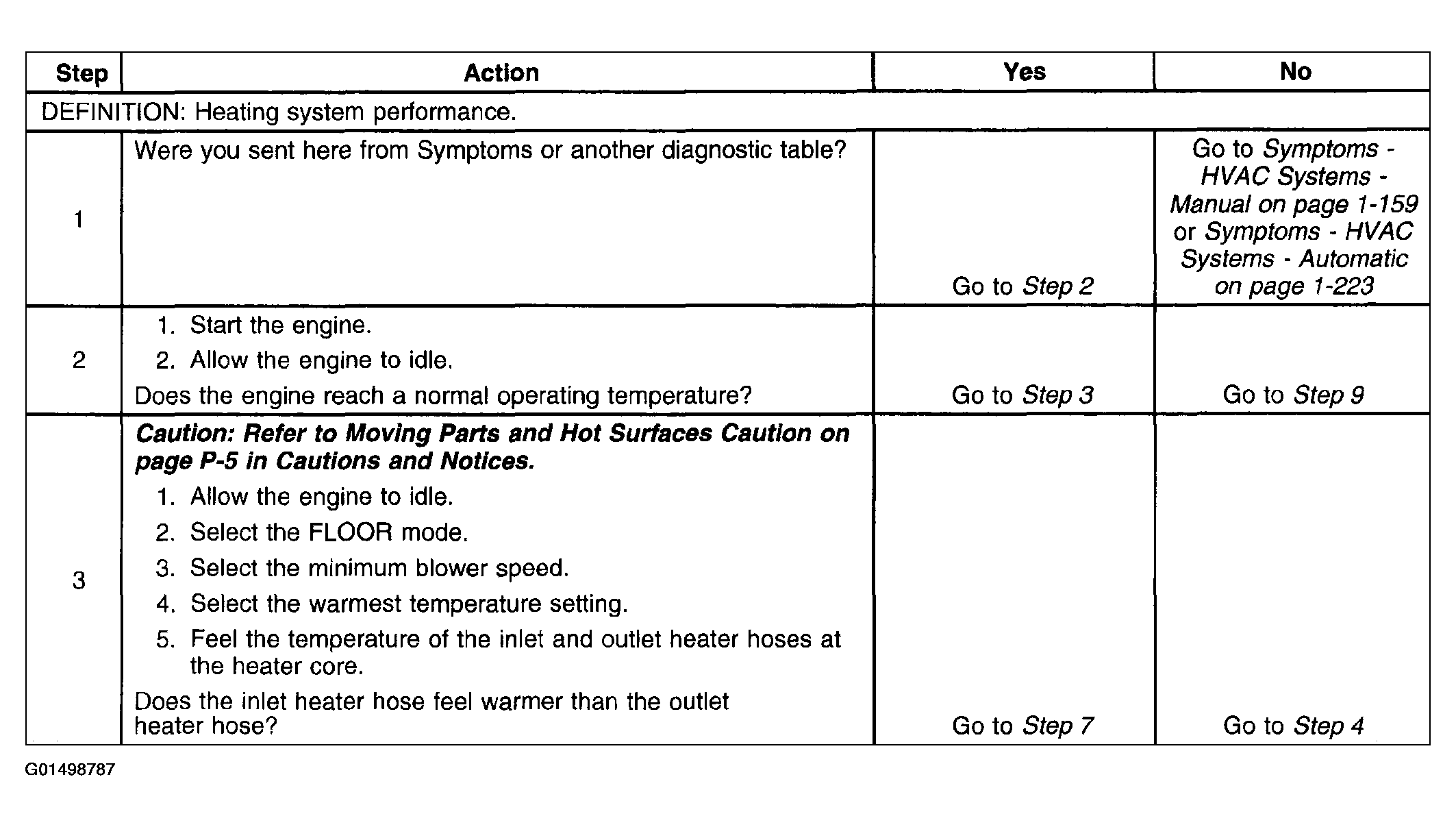

Fig 1: Heating Performance Diagnostic Chart
G01498787Courtesy of GENERAL MOTORS CORP.

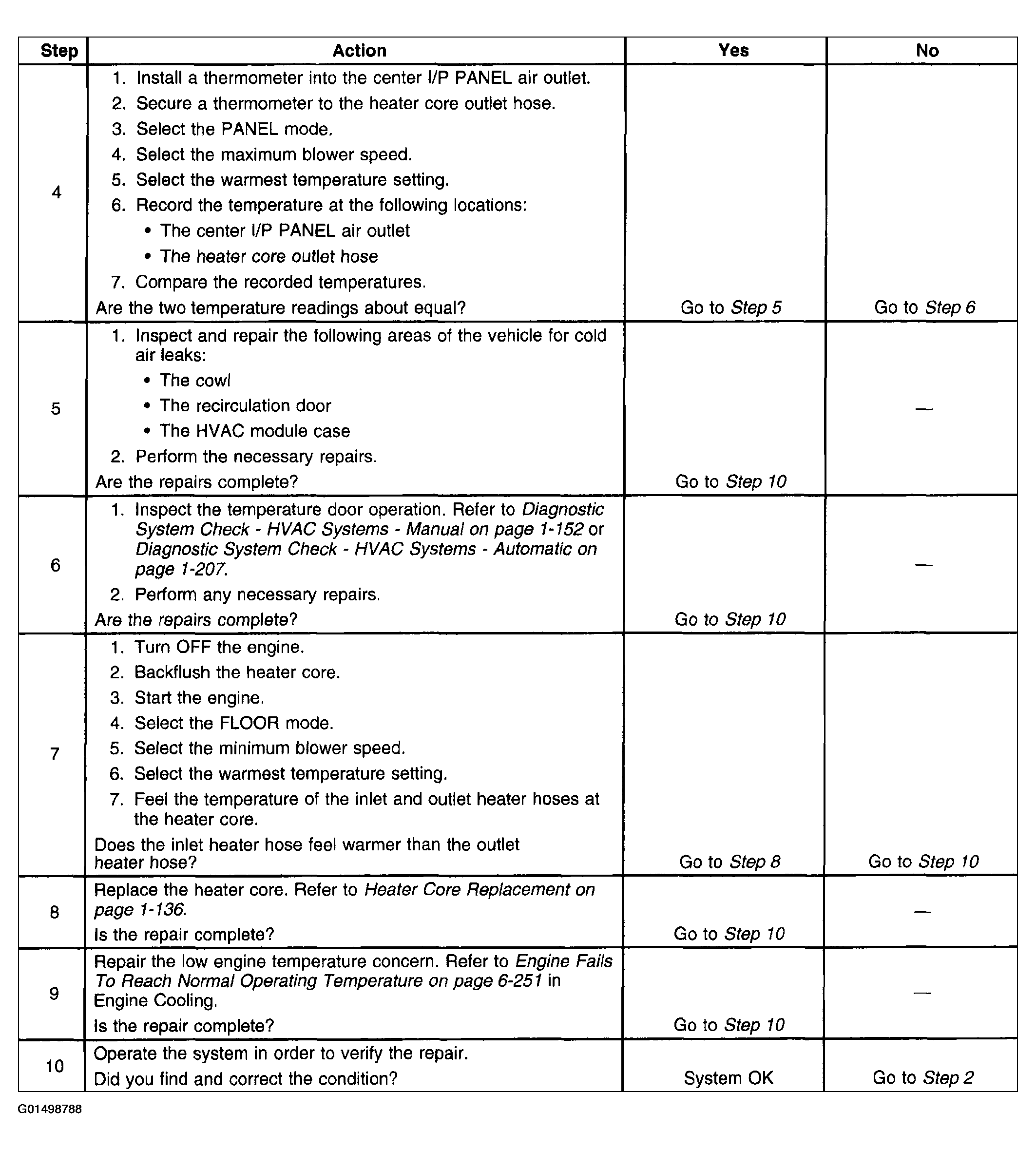

Fig 2: Heating Performance Diagnostic Chart<
G01498788Courtesy of GENERAL MOTORS CORP.
