Differential Lock Inoperative

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

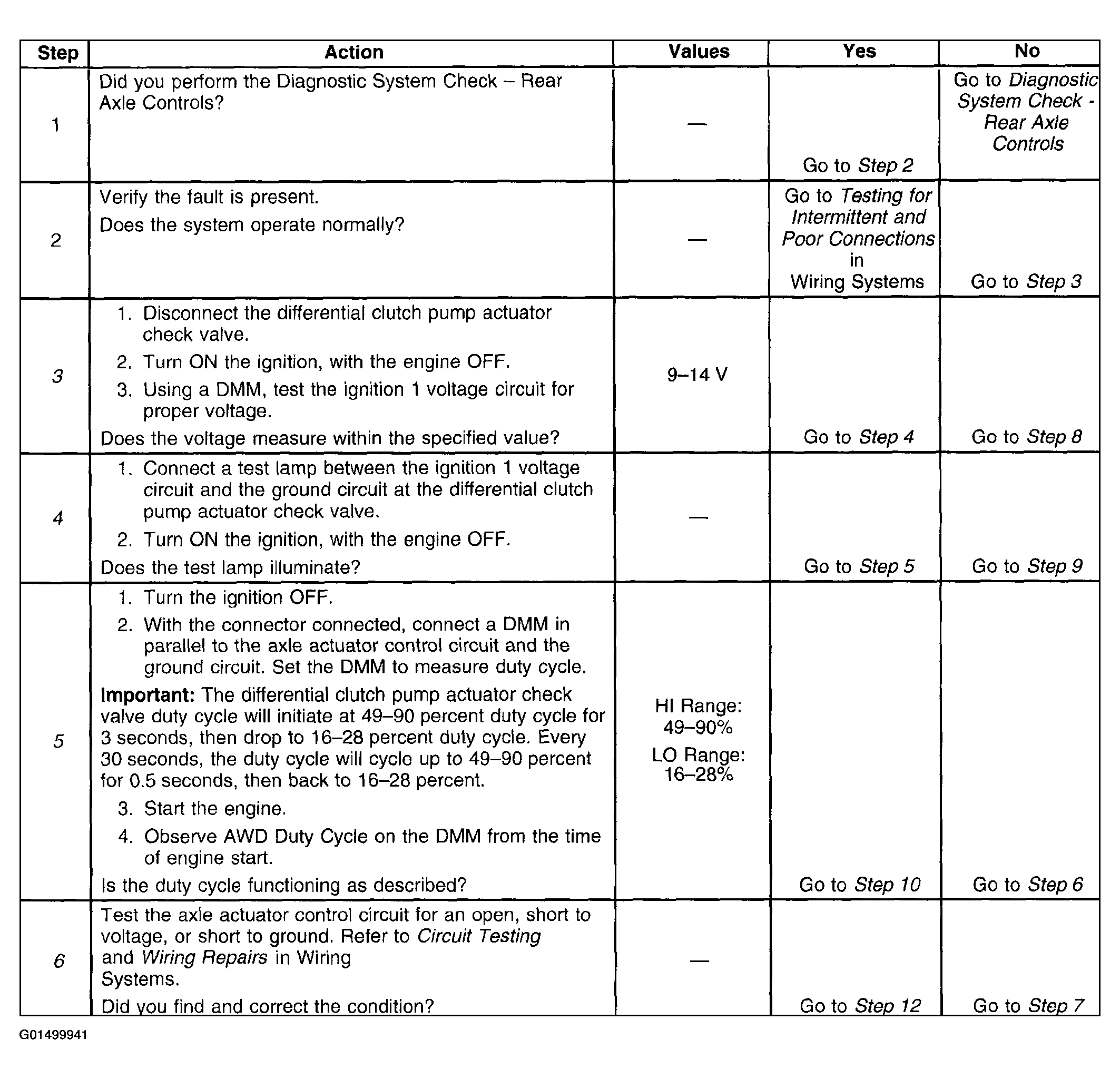

Fig 1: Differential Lock Inoperative Diagnostic Procedure (Steps 1-6)
G01499941Courtesy of GENERAL MOTORS CORP.

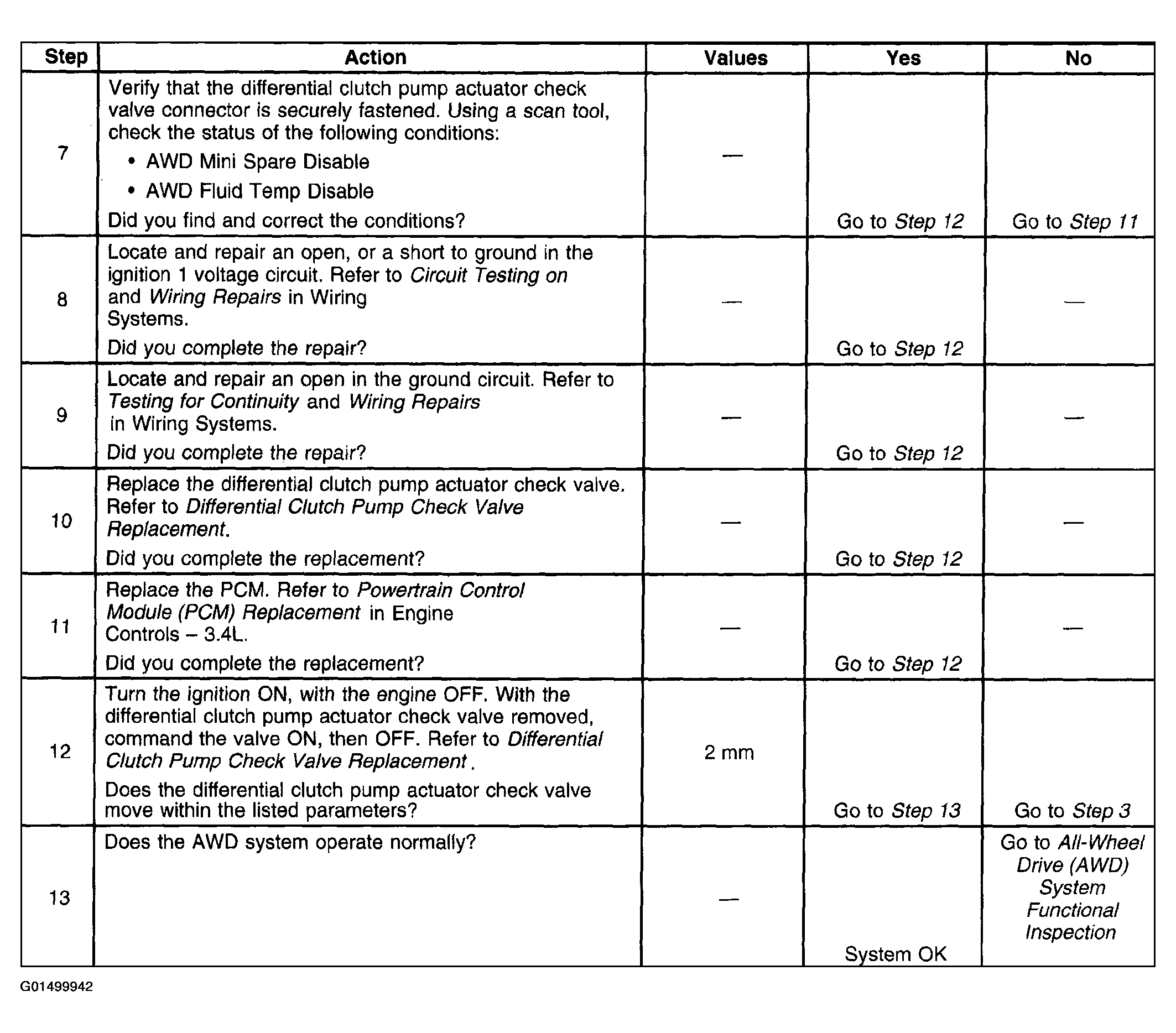

Fig 2: Differential Lock Inoperative Diagnostic Procedure (Steps 7-13)
G01499942Courtesy of GENERAL MOTORS CORP.
