Assembly Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the cylinder lines (1) for the following items:
- Cracks
- Dents
- Damage to the threads
Replace the parts as needed.

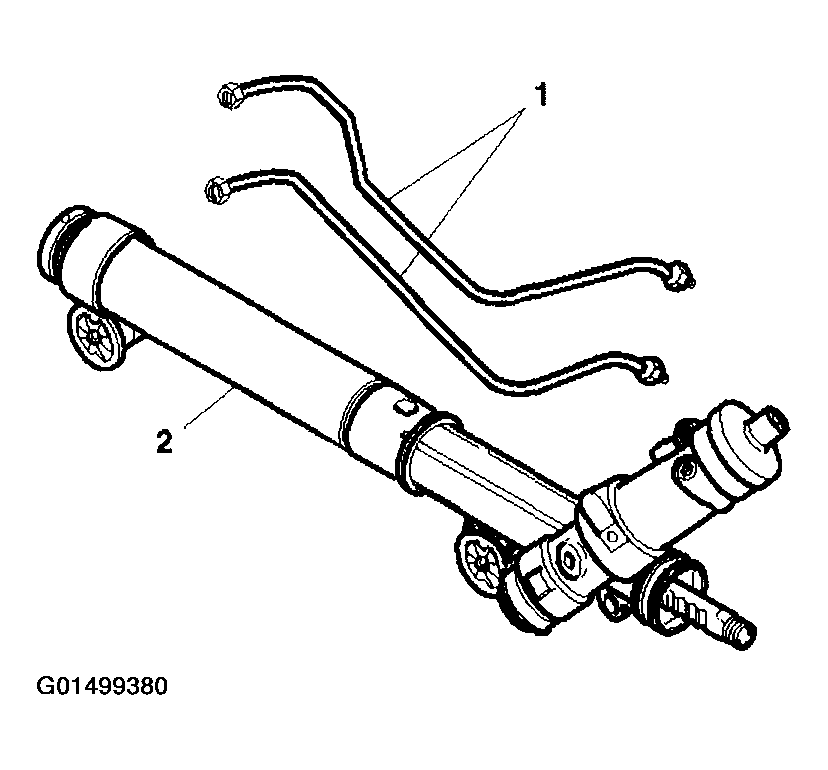

Fig 1: Inspecting Cylinder Lines
Courtesy of GENERAL MOTORS CORP.
Install the new O-ring seals (1) to the valve end of the cylinder lines.

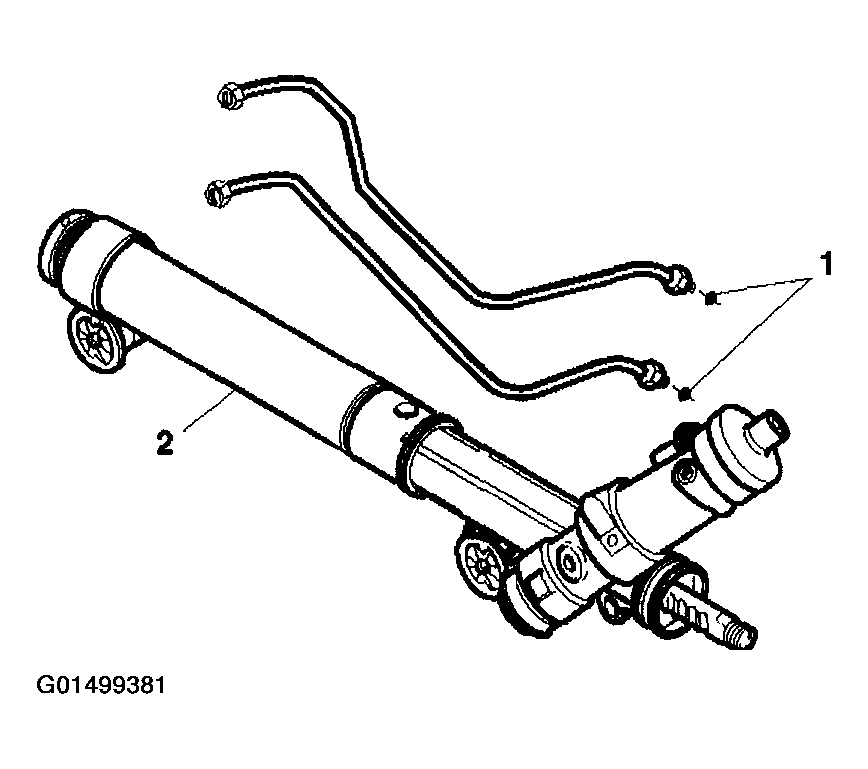

Fig 2: Installing O-Ring Seals To Valve End Of Cylinder Lines
Courtesy of GENERAL MOTORS CORP.
Install the cylinder line assemblies (1) to the gear assembly (2).
Tighten
- Tighten the valve end fittings to 17N-m(13 lb ft)
- Tighten the cylinder end fittings to 27 N.m (20 lb ft)
Fig 3: Installing Cylinder Line Assemblies To Gear Assembly
Courtesy of GENERAL MOTORS CORP.
