Valve Rocker Arm Cover Removal - Left

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover bolt grommets.
  3. Discard the valve rocker arm cover bolt grommets.

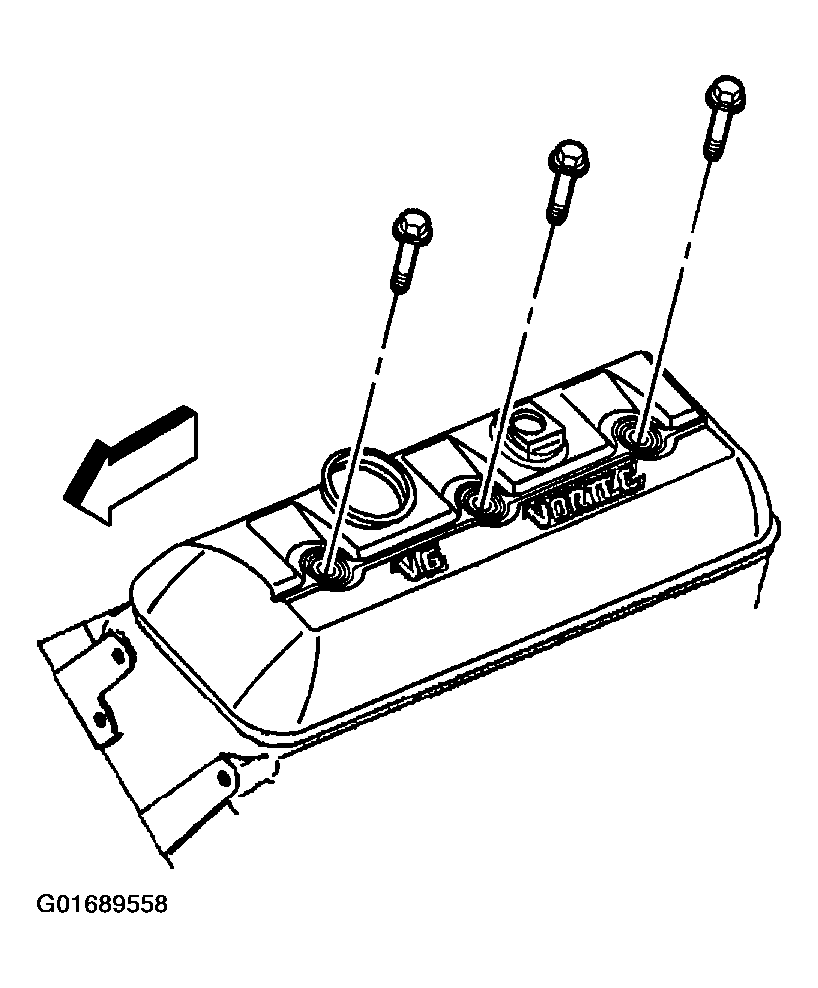

    Fig 1: Valve Rocker Arm Cover Bolts & Grommets
    G01689558Courtesy of GENERAL MOTORS CORP.
  4. Remove the valve rocker arm cover.

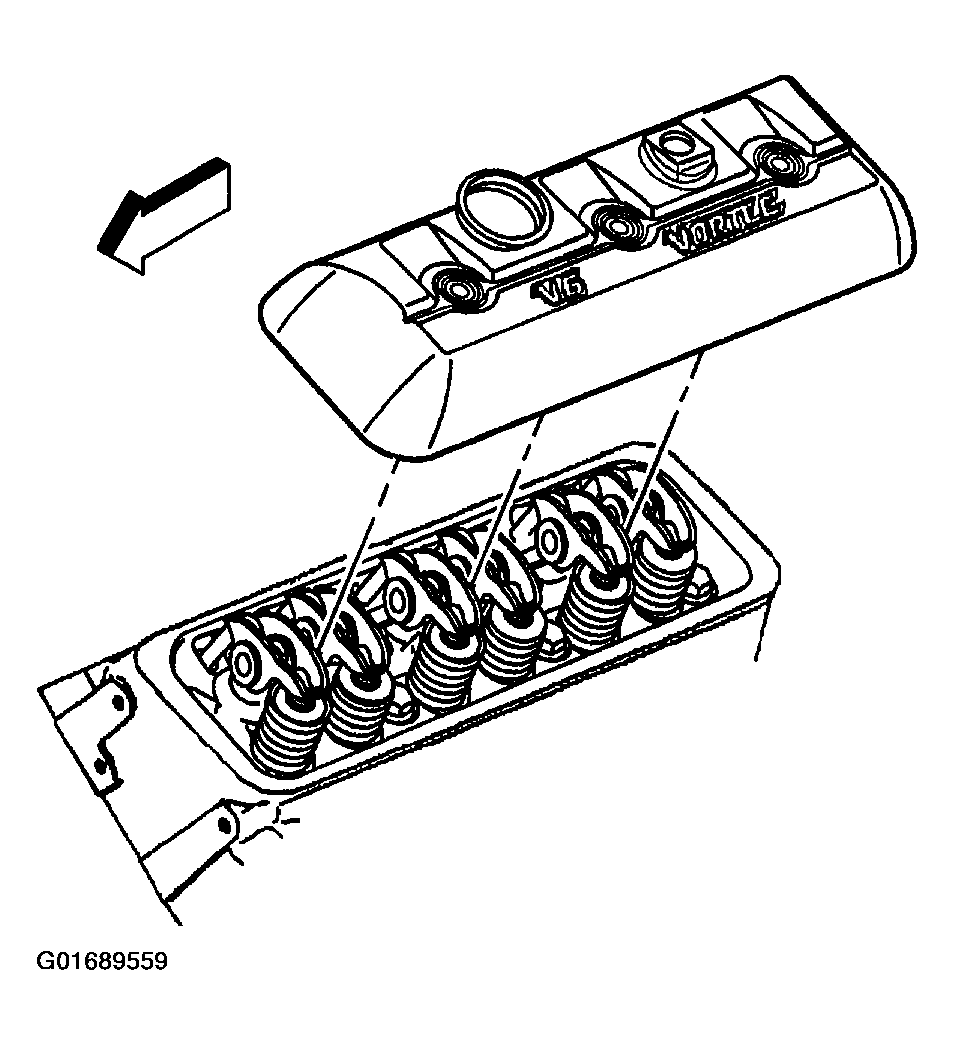

    Fig 2: Valve Rocker Arm Cover
    G01689559Courtesy of GENERAL MOTORS CORP.
  5. Remove the valve rocker arm cover gasket.
  6. Discard the valve rocker arm cover gasket.

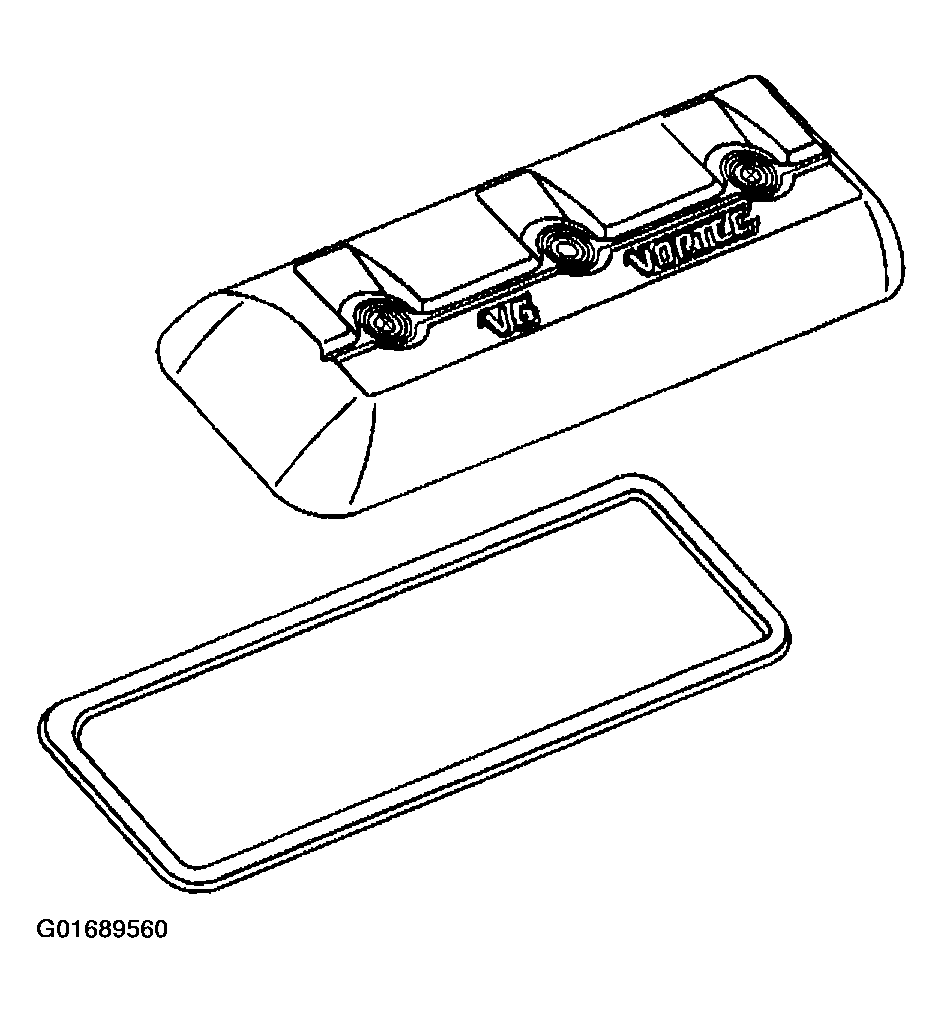

    Fig 3: Valve Rocker Arm Cover Gasket
    G01689560Courtesy of GENERAL MOTORS CORP.
