Engine Flywheel Installation (M/L Van and G Van)

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine flywheel to the crankshaft.
  2. Align the locator hole to the pin.

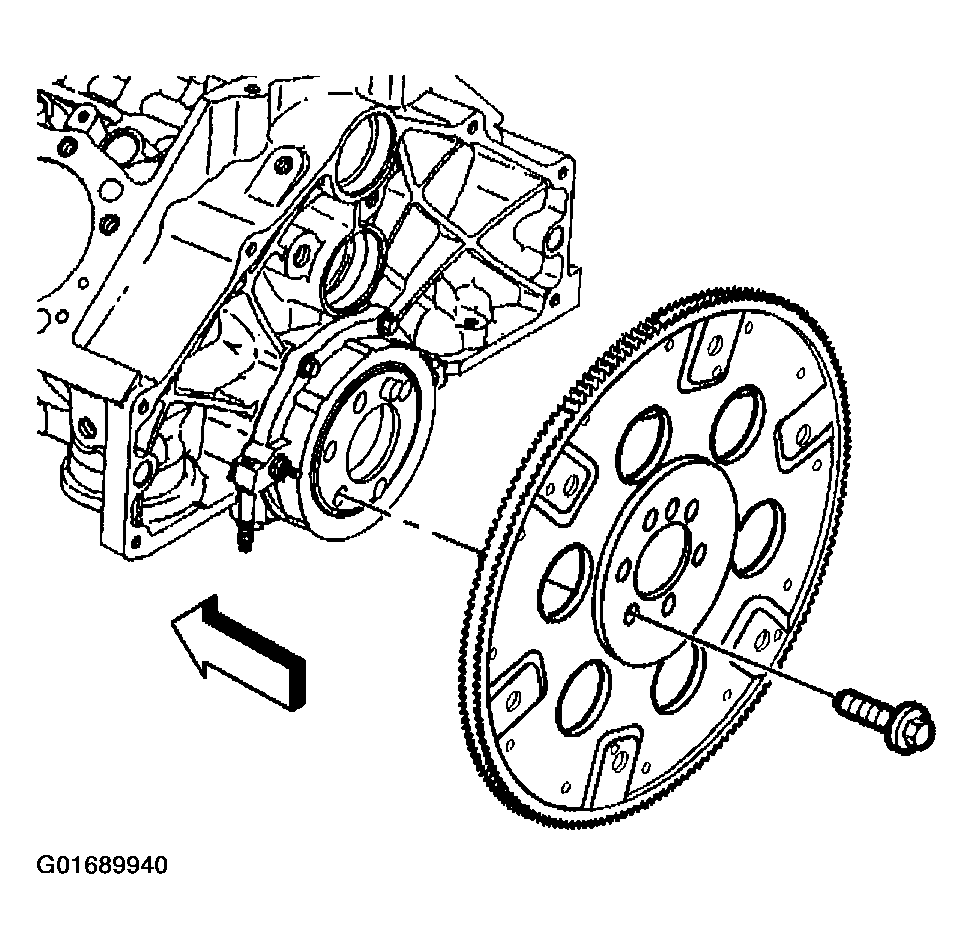

    Fig 1: Engine Flywheel
    G01689940Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the engine flywheel bolts.

    Tighten

    Tighten the engine flywheel bolts in sequence to 100 N.m (74 lb ft).

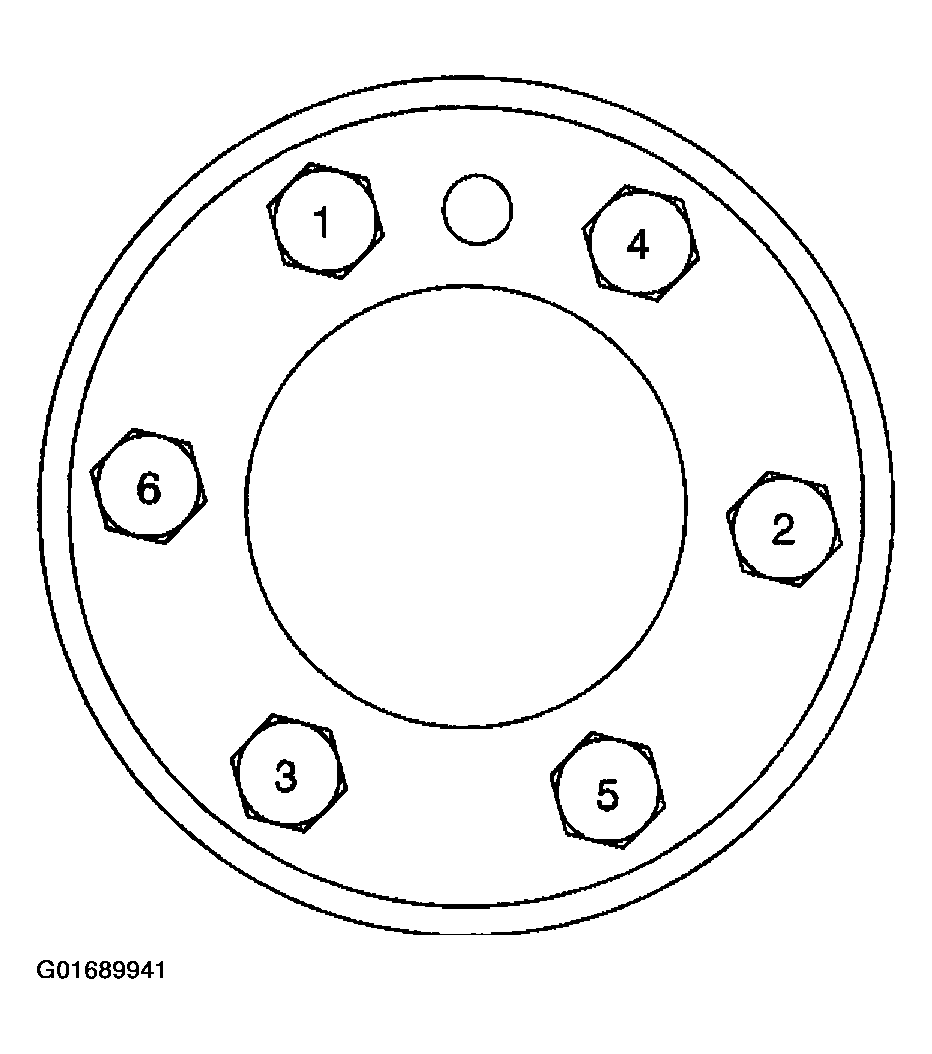

    Fig 2: Tightening Engine Flywheel Bolts In Sequence
    G01689941Courtesy of GENERAL MOTORS CORP.
