Cylinder Head Removal - Right

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plugs.

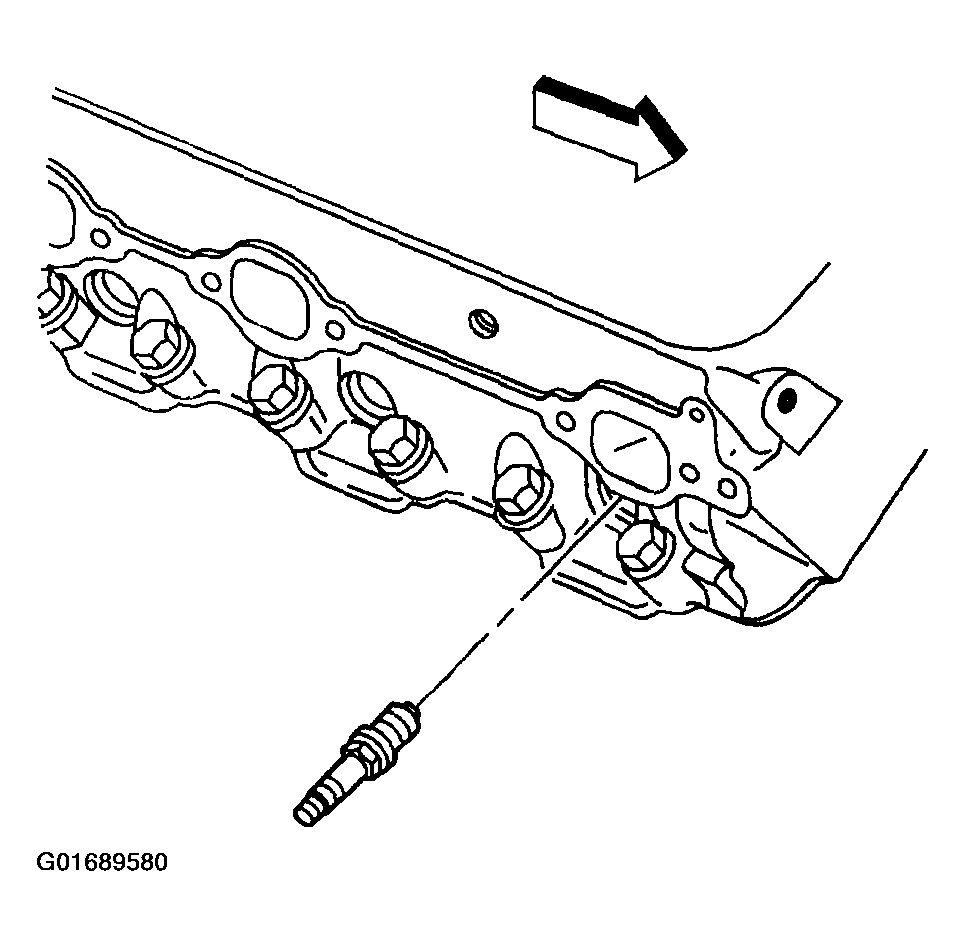

    Fig 1: Spark Plugs
    G01689580Courtesy of GENERAL MOTORS CORP.
  2. Remove the rear bolt and the spark plug wire support.

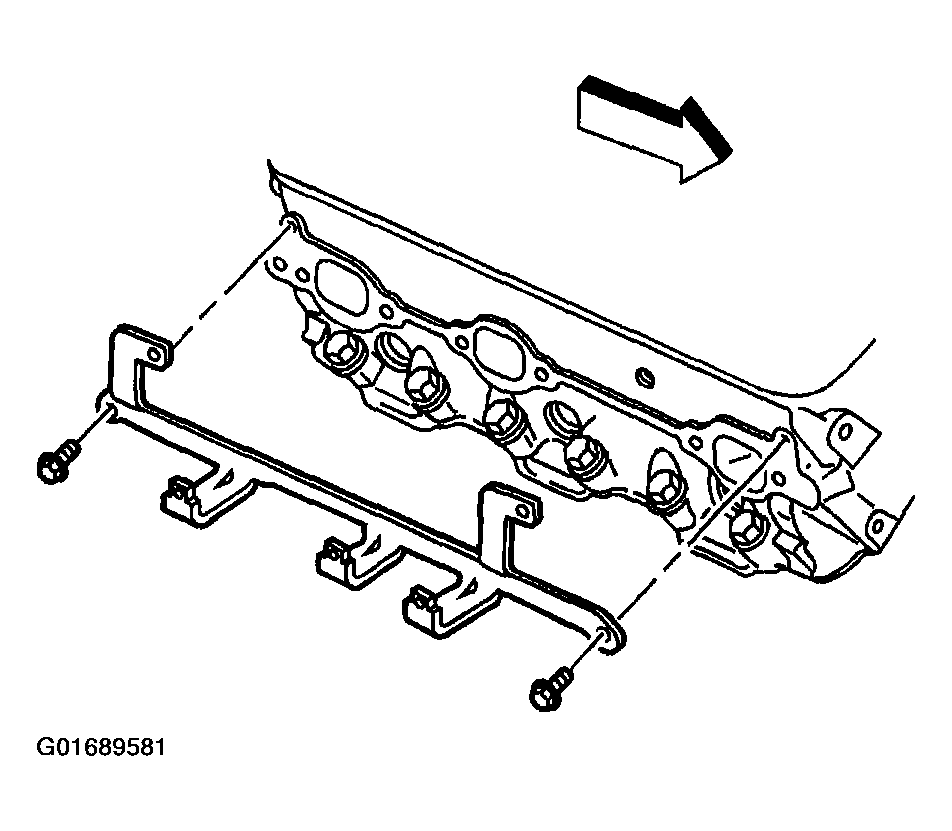

    Fig 2: Spark Plug Wire Support
    G01689581Courtesy of GENERAL MOTORS CORP.
  3. Remove the cylinder head bolts.

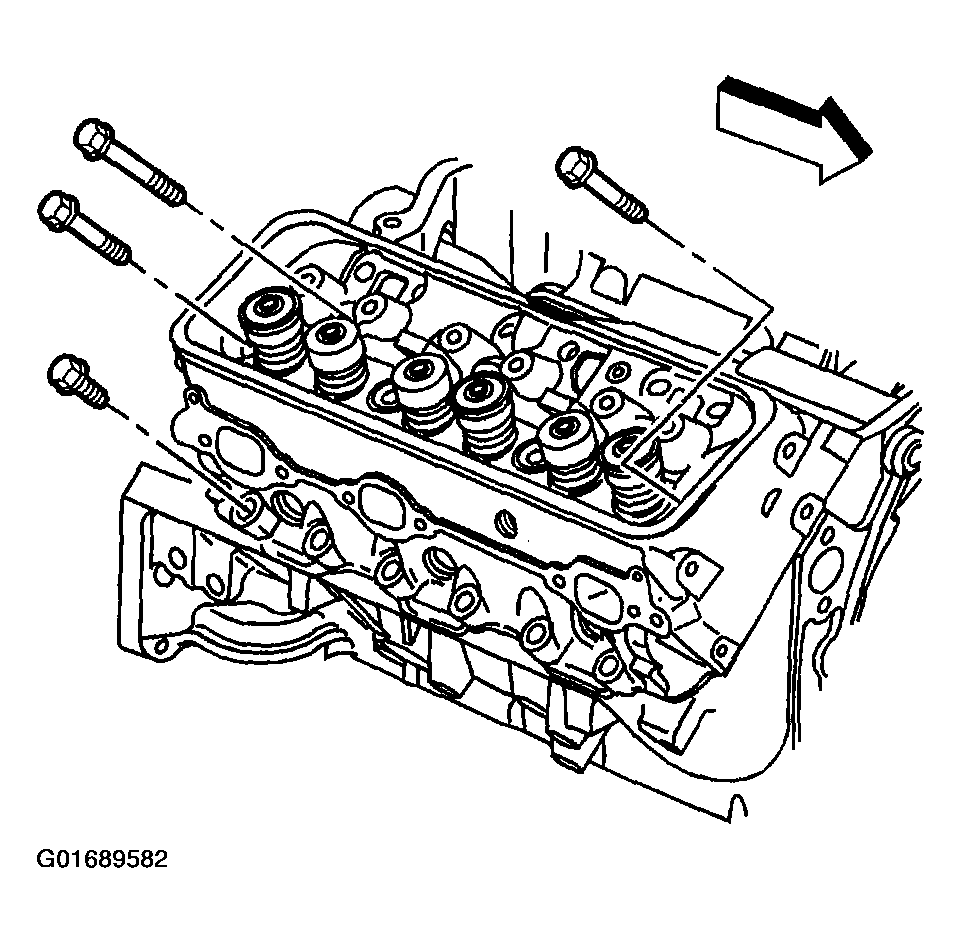

    Fig 3: Cylinder Head Bolts
    G01689582Courtesy of GENERAL MOTORS CORP.
    NOTE: After removal, place the cylinder head on two wood blocks to prevent damage.
  4. Remove the cylinder head.

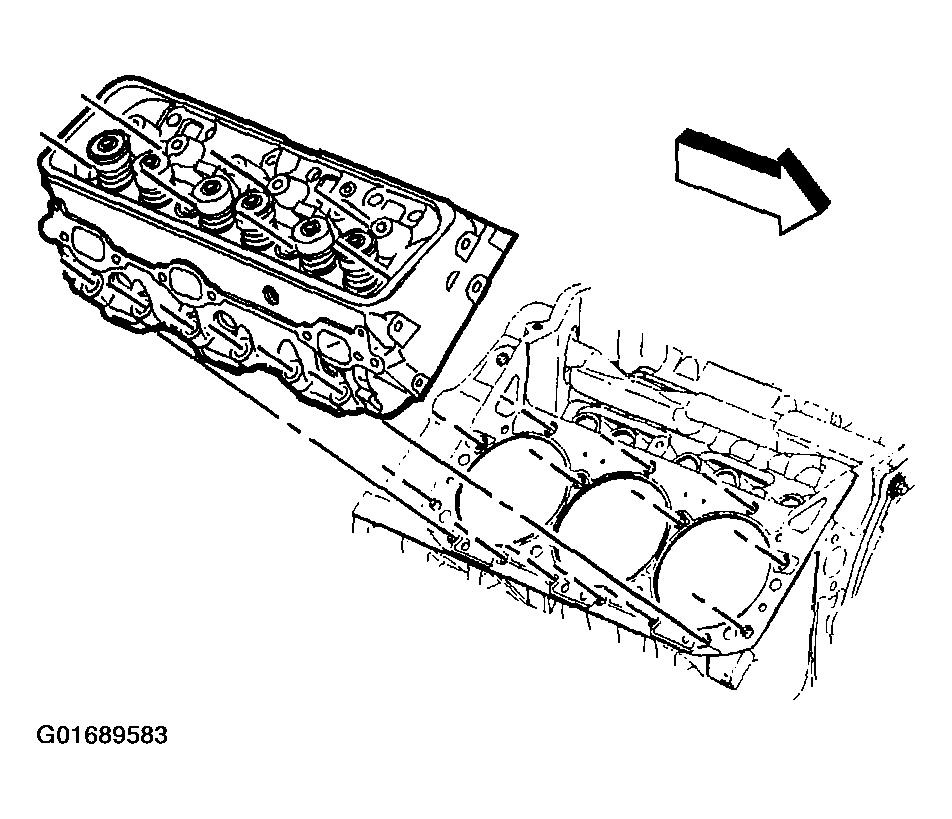

    Fig 4: Cylinder Head
    G01689583Courtesy of GENERAL MOTORS CORP.
  5. Remove and discard the cylinder head gasket.

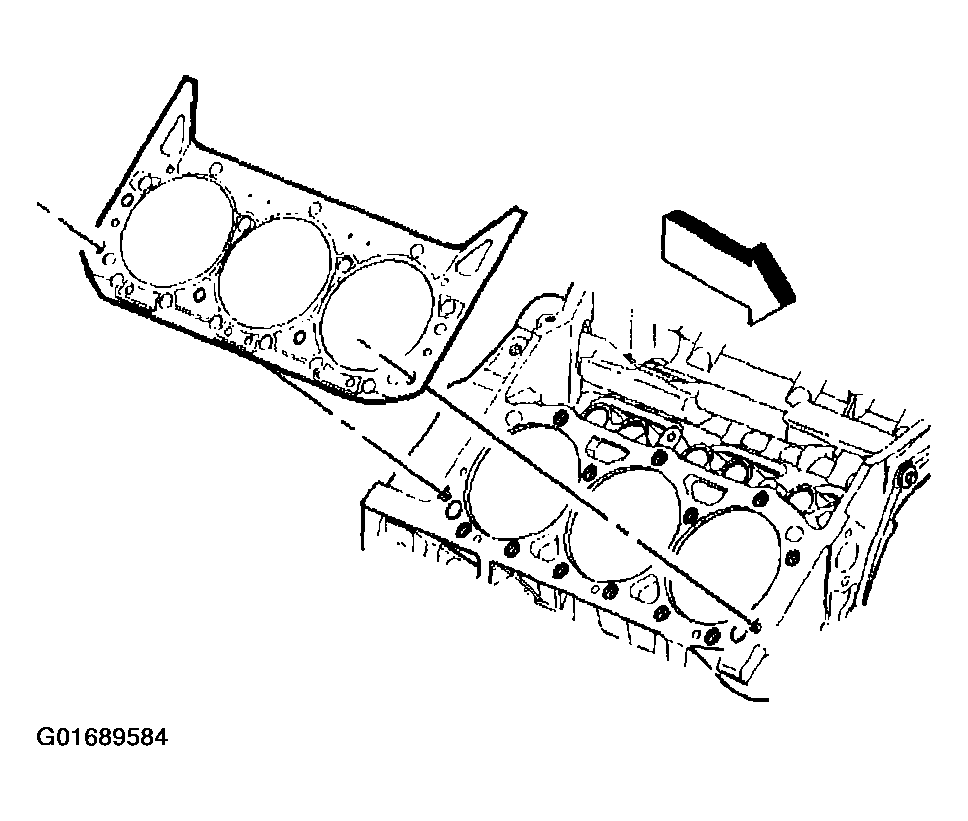

    Fig 5: Cylinder Head Gasket
    G01689584Courtesy of GENERAL MOTORS CORP.
  6. Remove the cylinder head locator dowel pins, if required.

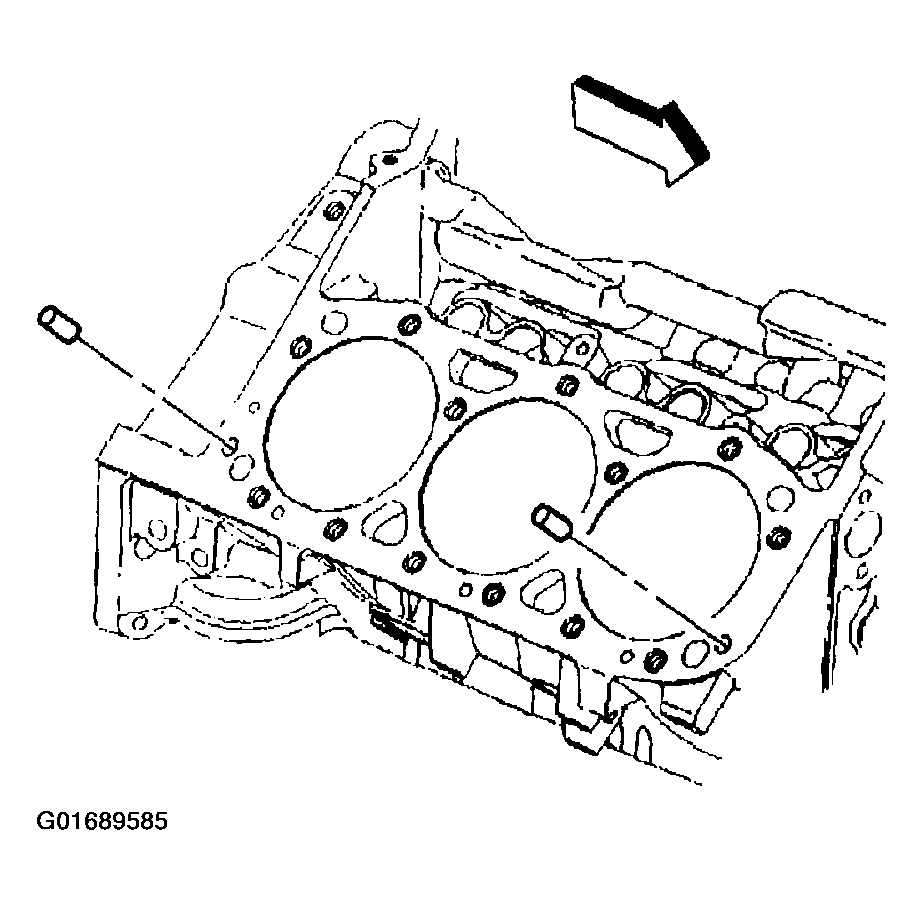

    Fig 6: Cylinder Head Locator Dowel Pins
    G01689585Courtesy of GENERAL MOTORS CORP.
