Camshaft Removal

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft retainer bolts and retainer.

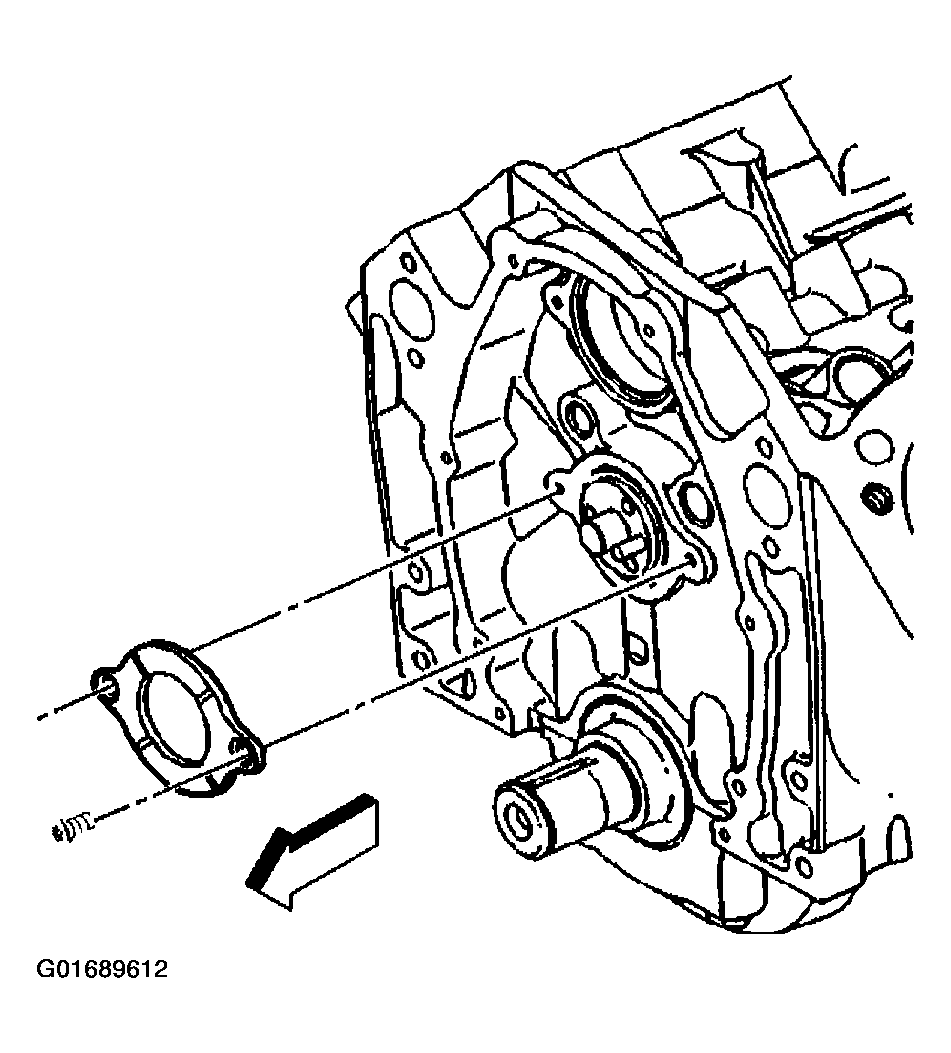

    Fig 1: Camshaft Retainer & Bolts
    G01689612Courtesy of GENERAL MOTORS CORP.
    NOTE: All camshaft journals are the same diameter, so care must be used in removing or installing the camshaft to avoid damage to the camshaft bearings.
  2. Remove the engine camshaft.
    1. 2.1. Install the three 5/16-18 x 4.0 inch bolts into the engine camshaft front bolt holes.
    2. 2.2. Using the bolts as a handle, carefully rotate and pull the engine camshaft out of the camshaft bearings.
    3. 2.3. Remove the bolts from the front of the engine camshaft.

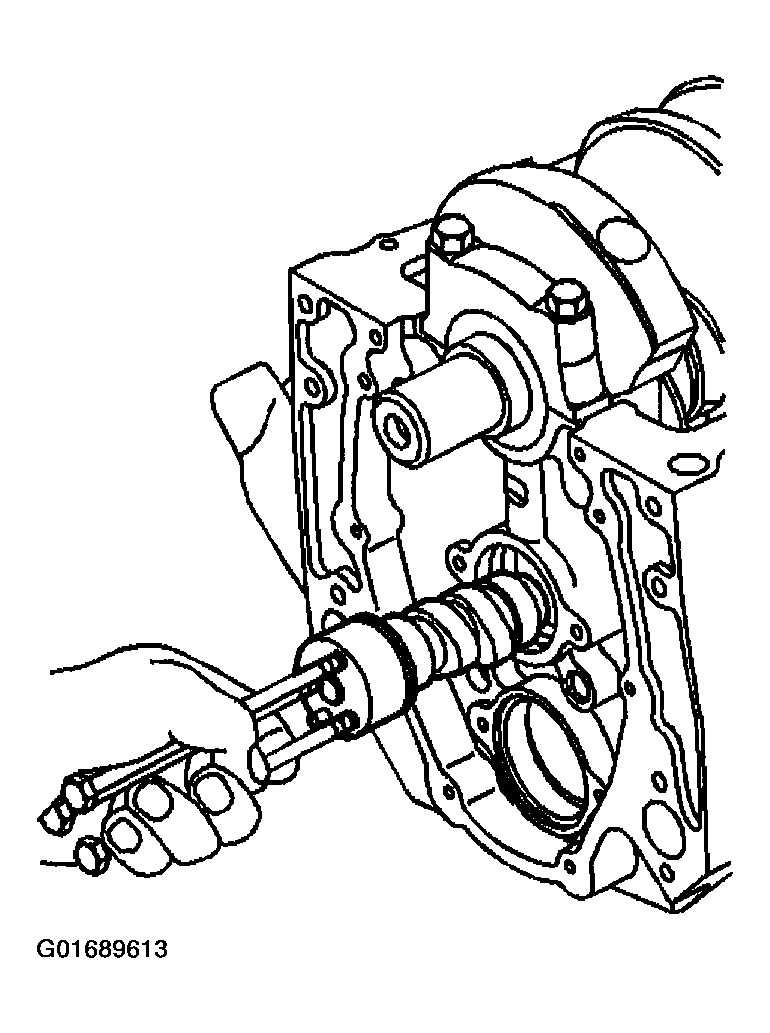

    Fig 2: Engine Camshaft & Bolts
    G01689613Courtesy of GENERAL MOTORS CORP.
