Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the window is fully closed.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the door module. Refer to Door Control Module Replacement .
  4. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  5. Loosen the lower fastener (3).
  6. Remove the upper fastener (1).
  7. Rotate the top of the front window channel forward.
  8. Lift upward on the front window channel in order to disengage the lower fastener from the keyhole slot.
  9. Remove the front window channel from the door.

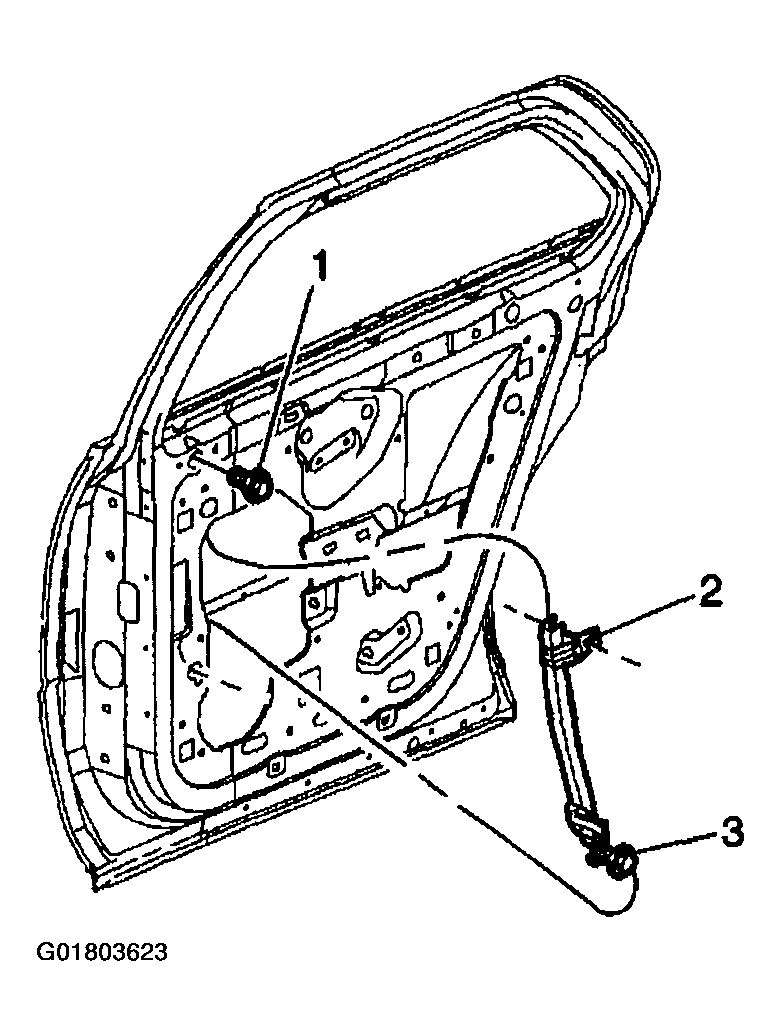

    10. Fig 1: Removing Window Channel
    G01803623Courtesy of GENERAL MOTORS CORP.
