Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
  2. Remove the center shoulder belt anchor and right side buckle fastener.
  3. Remove the left side seat buckle fastener.

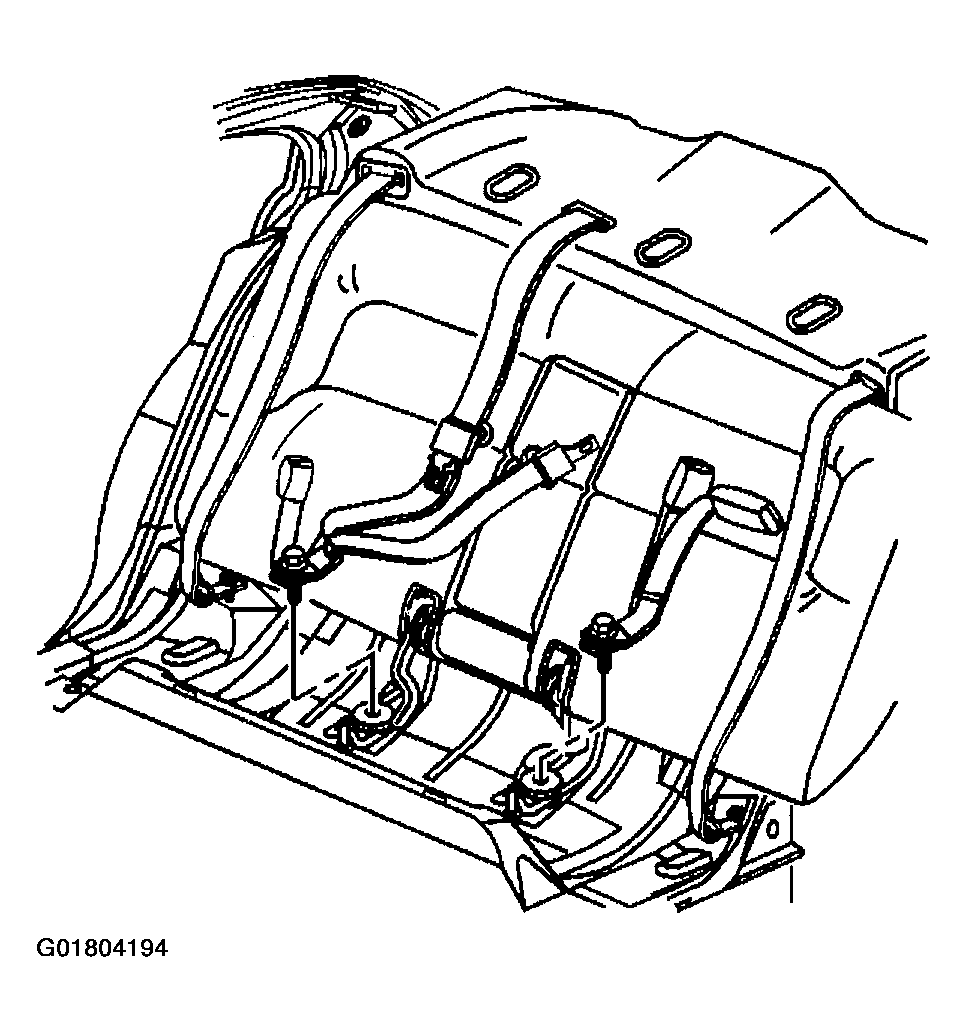

    Fig 1: Removing Left Side Seat Buckle Fastener
    G01804194Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR .
  5. Remove the rear seat belt anchor fasteners from the floor.

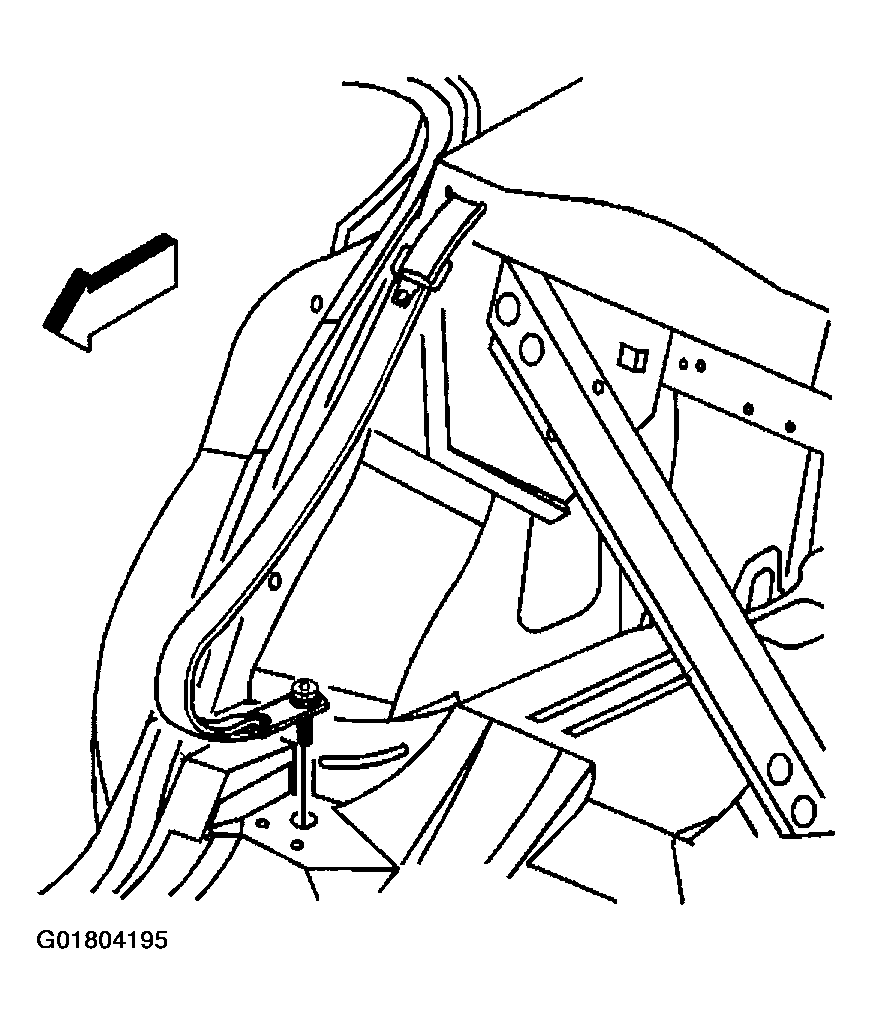

    Fig 2: Removing Rear Seat Belt Anchor Fasteners
    G01804195Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear quarter trim panels. Refer to TRIM PANEL REPLACEMENT -- REAR QUARTER UPPER .
  7. Remove the rear shelf trim panel Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF .
  8. Remove the rear seat back retractor fastener.
  9. Remove the rear seat belt retractor.

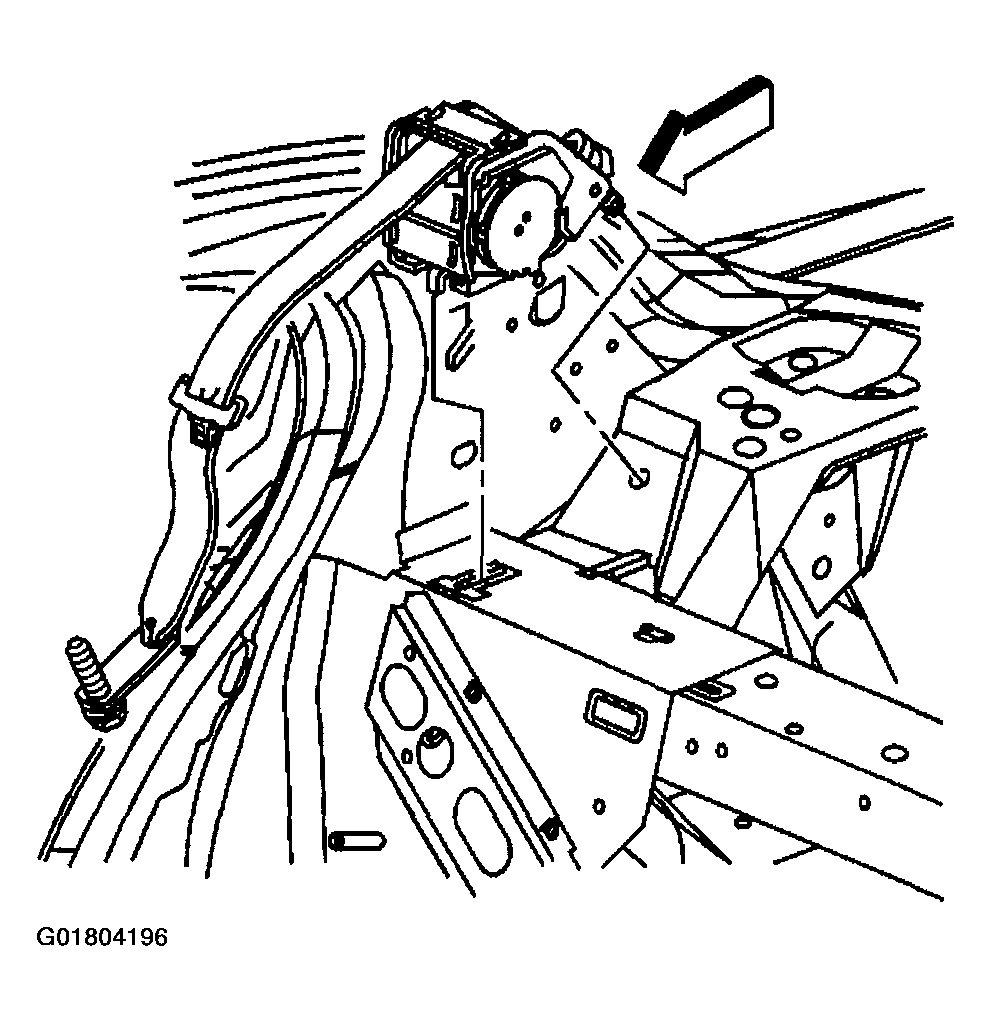

    Fig 3: Removing Rear Seat Belt Retractor
    G01804196Courtesy of GENERAL MOTORS CORP.
