Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR
  2. Remove the outer seat belt anchor bolts.
  3. Position the lower portion of the rear seat back sound barrier out of the way.

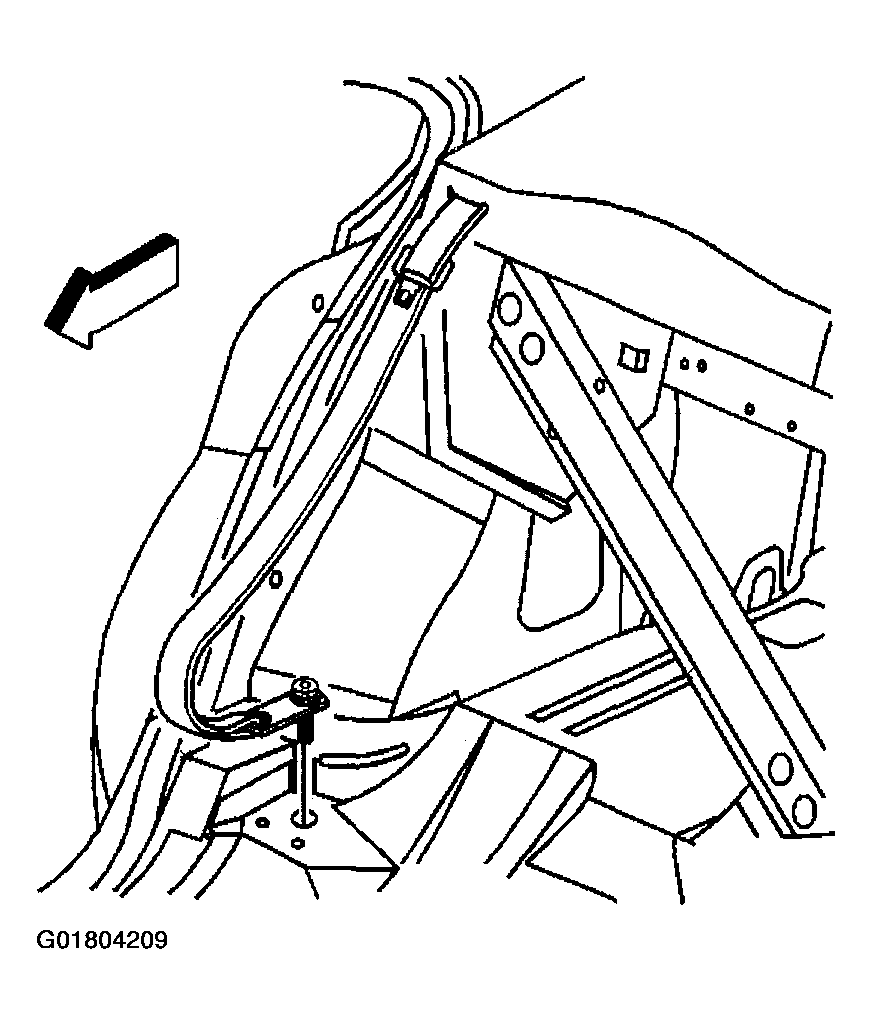

    Fig 1: Removing Outer Seat Belt Anchor Bolts
    G01804209Courtesy of GENERAL MOTORS CORP.
  4. Remove the nuts (2) securing the bracket (1) to the vehicle.
  5. Remove the bracket (1) from the vehicle .

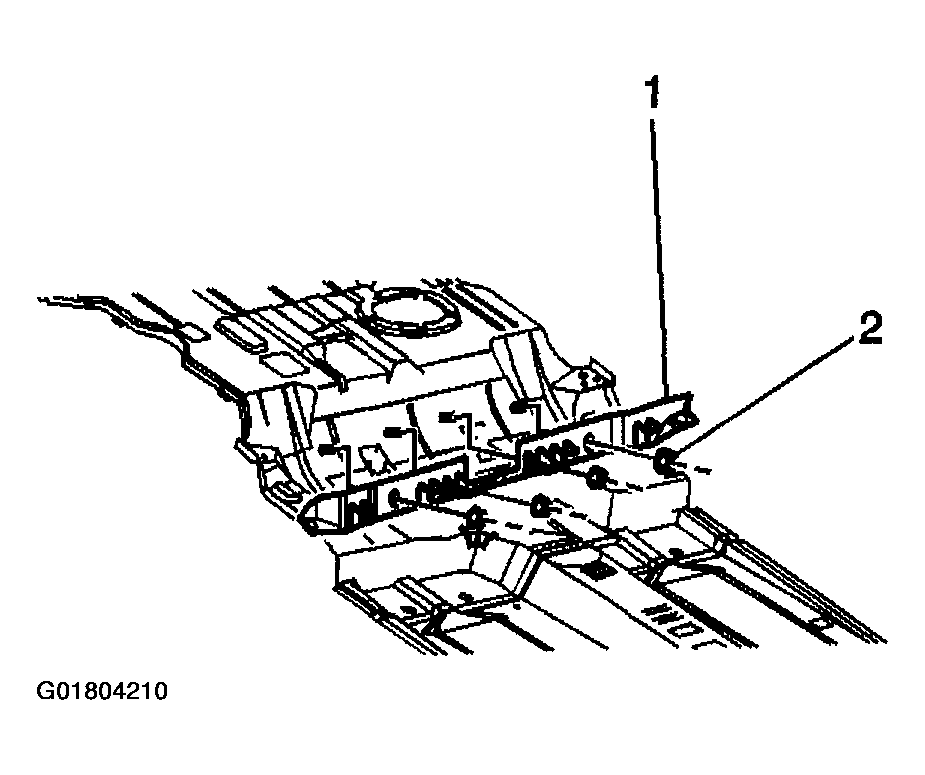

    Fig 2: Removing Securing Bracket
    G01804210Courtesy of GENERAL MOTORS CORP.
