Windshield Wiper and Washer Switch Assembly - Disassemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION .
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING SYSTEM .
  2. Remove the upper and lower trim covers. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle  .
  3. Remove the wire harness assembly from the wire restraint clip (1).

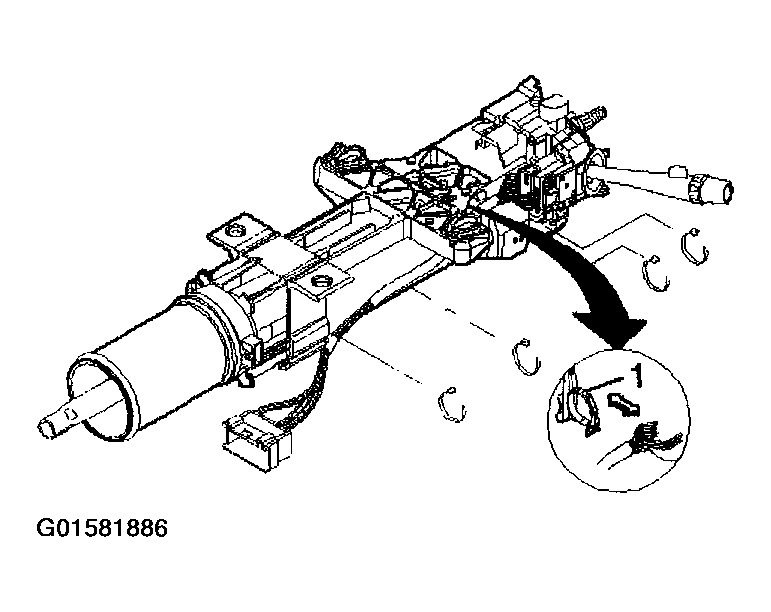

    4. Fig 1: Removing Wire Harness Assembly
    G01581886Courtesy of GENERAL MOTORS CORP.
  4. Remove the wire harness straps.
  5. Disconnect the windshield wiper and washer switch assembly connector.
  6. Remove the windshield wiper and washer switch assembly in the following way:
    1. 6.1. Press on the locking tabs of the windshield wiper and washer switch assembly.
    2. 6.2. Pull the windshield wiper and washer switch assembly out of the turn signal switch housing.

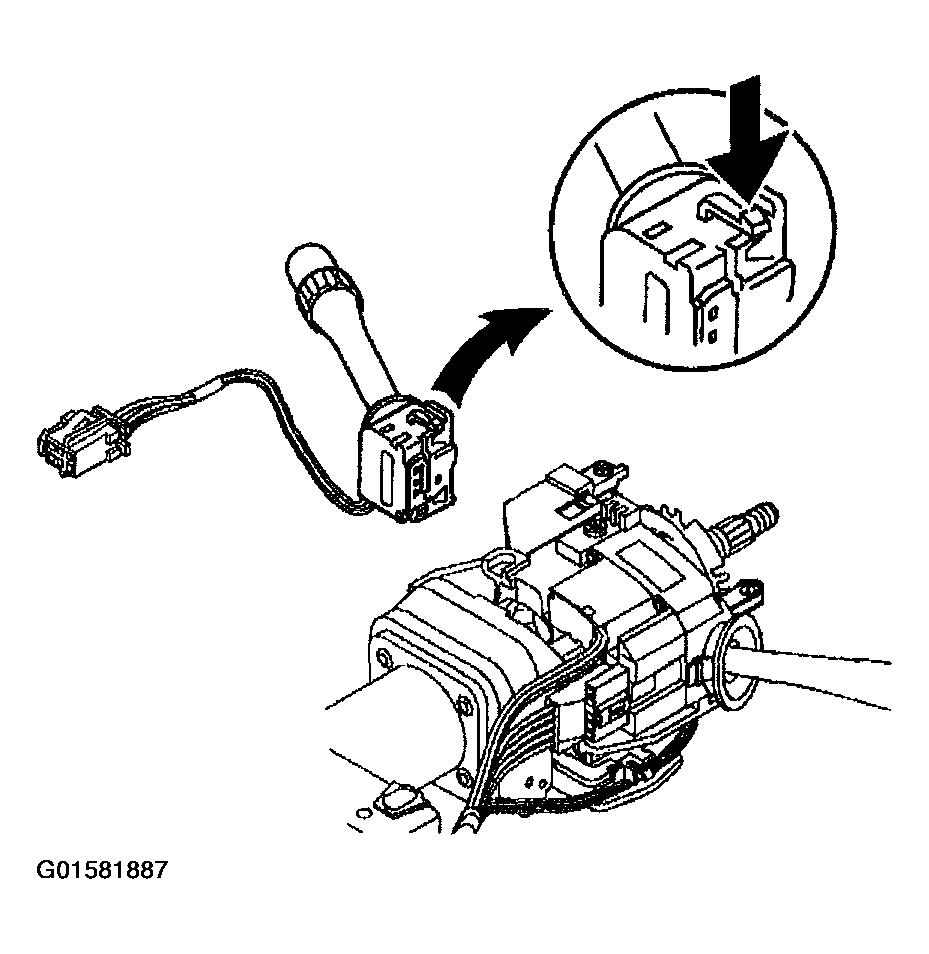

    Fig 2: Removing Windshield Wiper & Washer Switch Assembly
    G01581887Courtesy of GENERAL MOTORS CORP.
