Turn Signal and Multifunction Switch Assembly - Disassemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION .
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING SYSTEM .
  2. Remove the upper and lower trim covers. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle  .
  3. Remove the wire harness straps.
  4. Remove the wire harness assembly from the wire restraint clip (1).
    5. Fig 1: Removing Wire Harness Assembly
    G01581882Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the connectors of the turn signal and multifunction switch assembly.
  6. Remove 2 pan head tapping screws from the turn signal and multifunction switch assembly.
  7. Remove the turn signal and multifunction switch assembly.

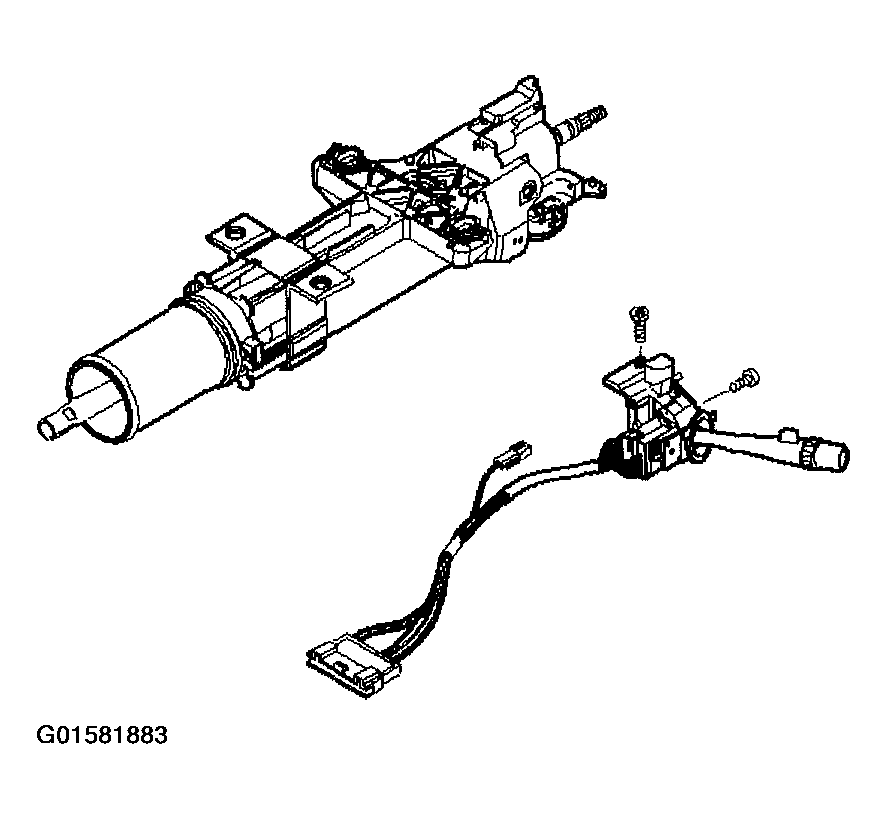

    Fig 2: Removing Turn Signal & Multifunction Switch Assembly
    G01581883Courtesy of GENERAL MOTORS CORP.
