Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the grille locating studs to the holes in the front bumper fascia.

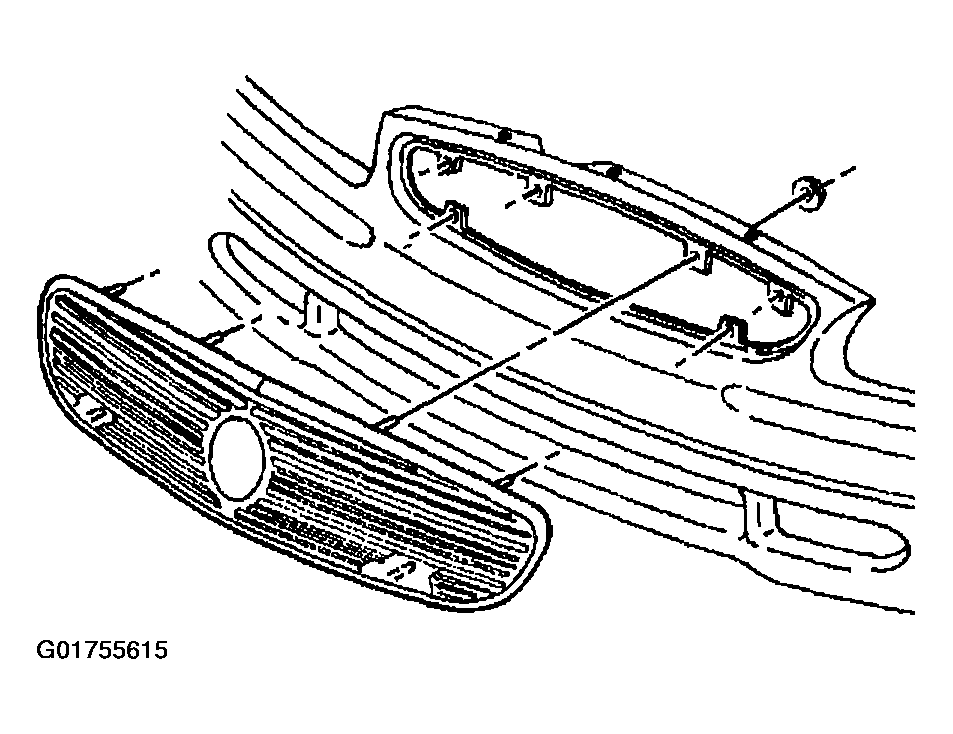

    2. Fig 1: Identifying Front Bumper Lower Fascia Grille (Regal)
    G01755615Courtesy of GENERAL MOTORS CORP.
  2. Press into place until fully seated.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the grille nuts to the studs. Tighten the nuts to 5 N.m (44 in lbs).
  4. Close the hood.
