Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the access hole cover from the instrument panel (I/P) fuse block.

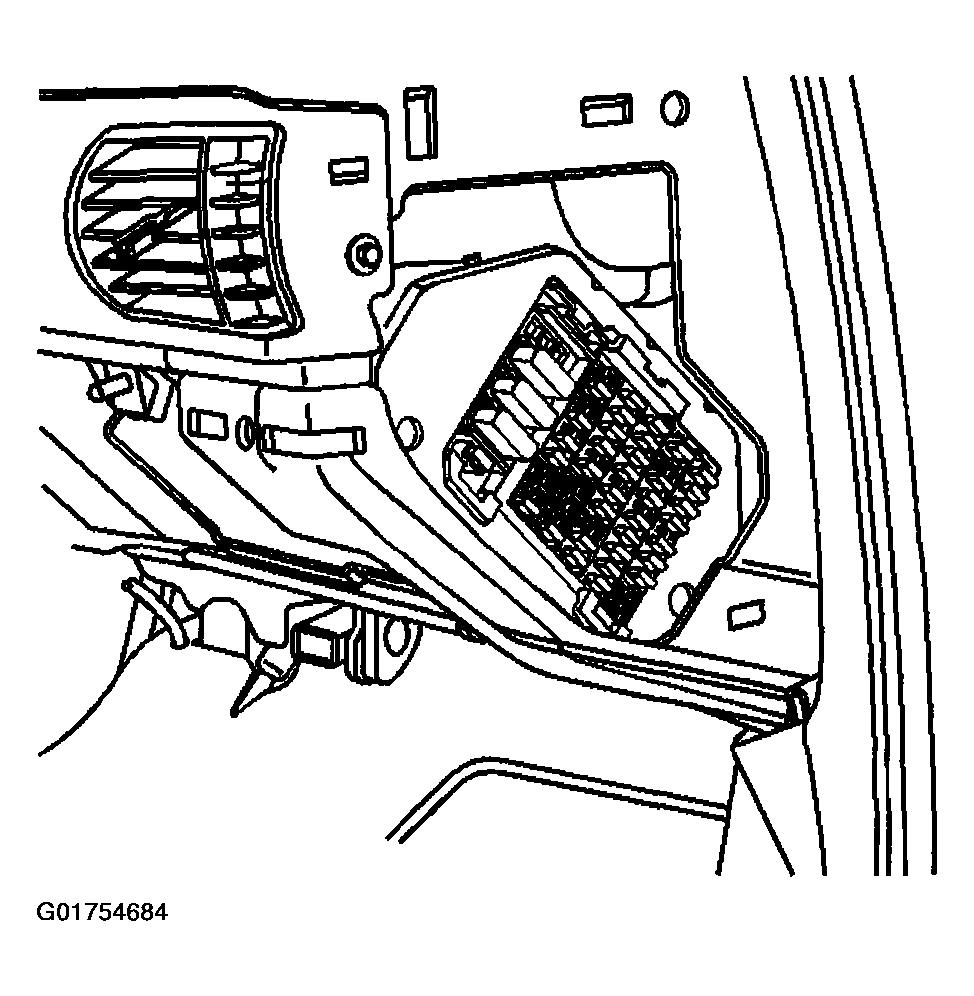

    3. Fig 1: Identifying Instrument Panel (I/P) Fuse Block With Access Hole Cover Removed
    G01754684Courtesy of GENERAL MOTORS CORP.
  3. Remove the right I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  4. Remove the I/P compartment. Refer to COMPARTMENT REPLACEMENT - I/P .
  5. Remove the lamp harness retainer (1) from the passenger knee bolster bracket (2).

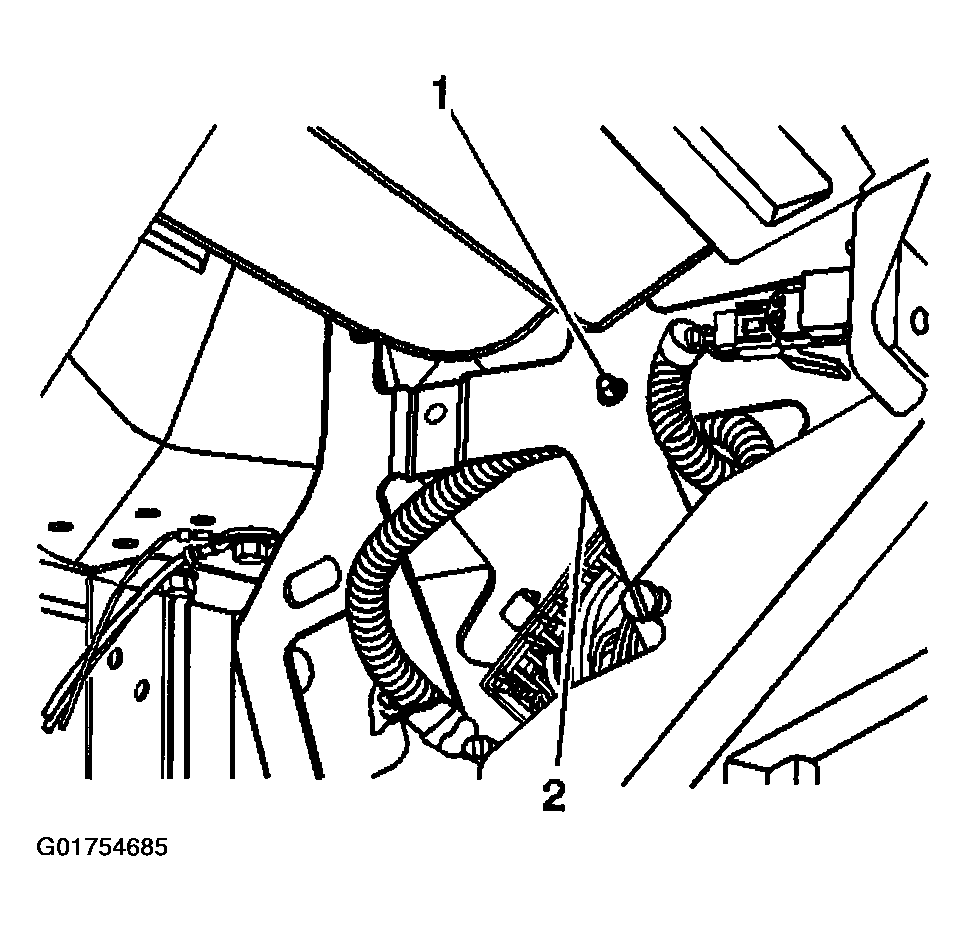

    Fig 2: Identifying Passenger Knee Bolster Bracket Lamp Harness Retainer
    G01754685Courtesy of GENERAL MOTORS CORP.
  6. Remove the wiring harness retainer (1) from the passenger knee bolster bracket (2).

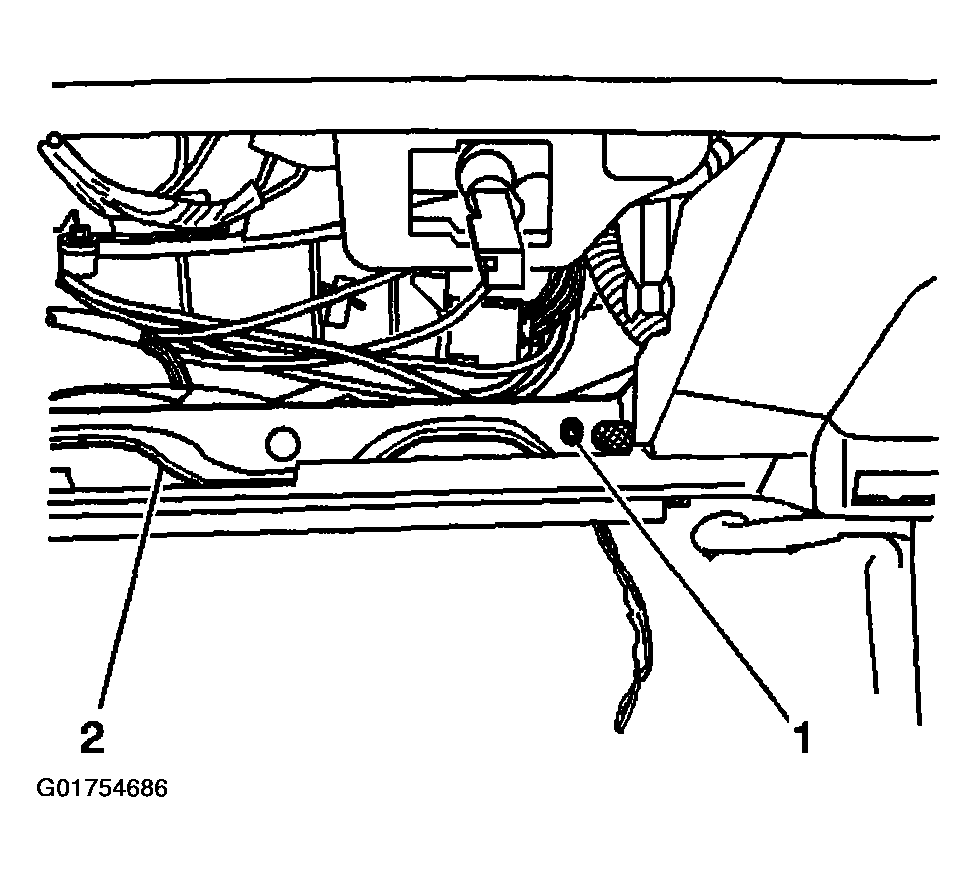

    Fig 3: Identifying Passenger Knee Bolster Bracket Wiring Harness Retainer
    G01754686Courtesy of GENERAL MOTORS CORP.
  7. Disengage the fuse block from the fuse block bracket on the body wiring harness. Lower the fuse block from the I/P.

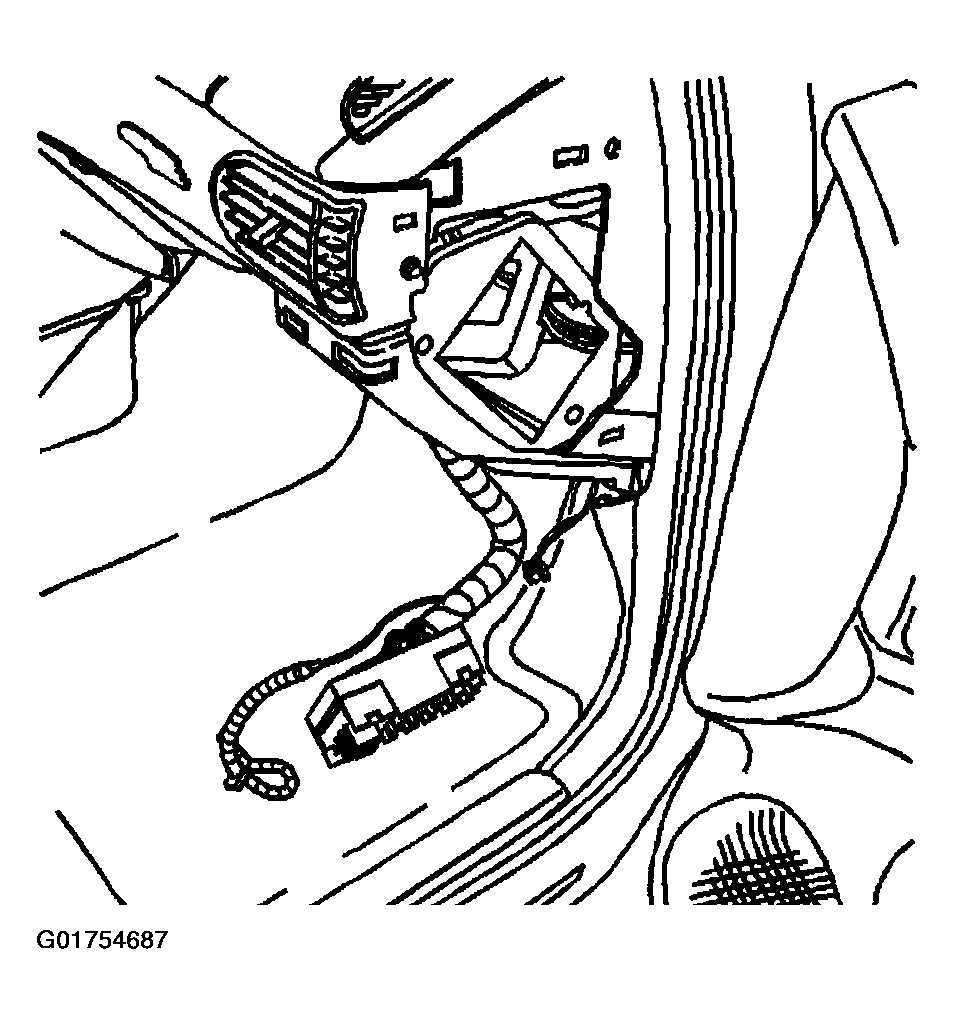

    8. Fig 4: Disengage Fuse Block From Fuse Block Bracket
    G01754687Courtesy of GENERAL MOTORS CORP.
  8. Remove the fuses and the relays from the fuse block. Refer to INSTRUMENT PANEL FUSE BLOCK .
  9. Use the correct terminal removal tool from J 38125-B  to remove the wires from the fuse block. Refer to INSTRUMENT PANEL FUSE BLOCK .

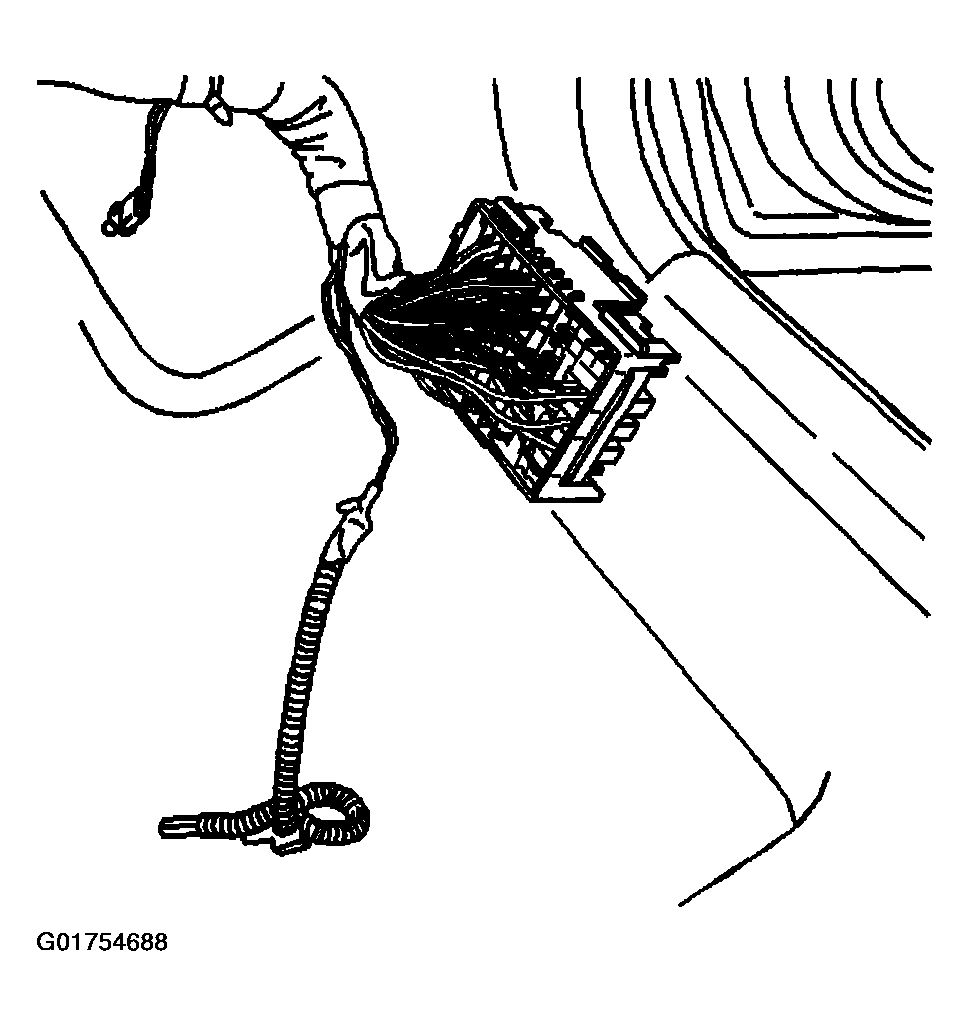

    Fig 5: Identifying Back Side Of I/P Fuse Block
    G01754688Courtesy of GENERAL MOTORS CORP.
