Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the pressure relief valve (1) in order to engage the tabs to the quarter panel.
  2. Install the right rear compartment side trim. Refer to Compartment Trim Panel Replacement - Rear  .

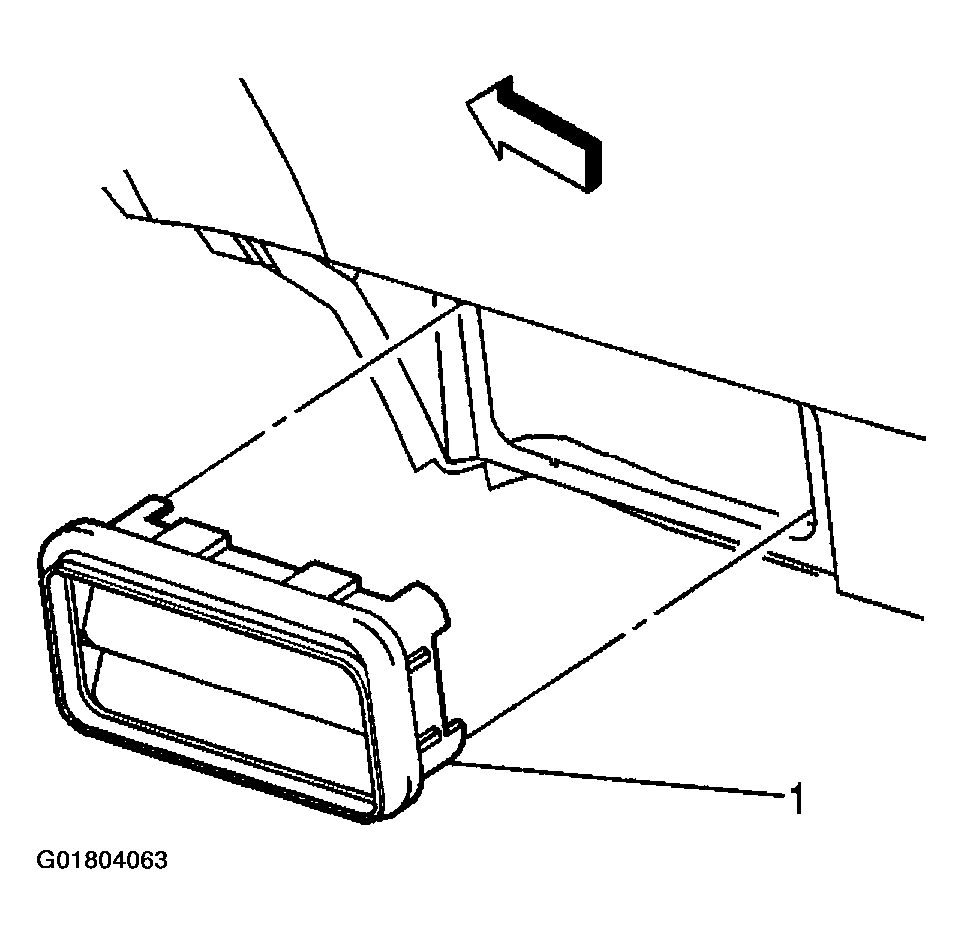

    Fig 1: Installing Pressure Relief Valve
    G01804063Courtesy of GENERAL MOTORS CORP.
