Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment lid.
  2. Remove the rear compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear  .
  3. Remove the latch cable assembly from the back of the lock cylinder.
  4. Remove the rear compartment lid applique. Refer to Compartment Lid Applique Replacement - Rear  .
  5. Remove the lock cylinder retaining clip (3) from inside the compartment lid.
  6. Remove the lock cylinder from the rear compartment lid.

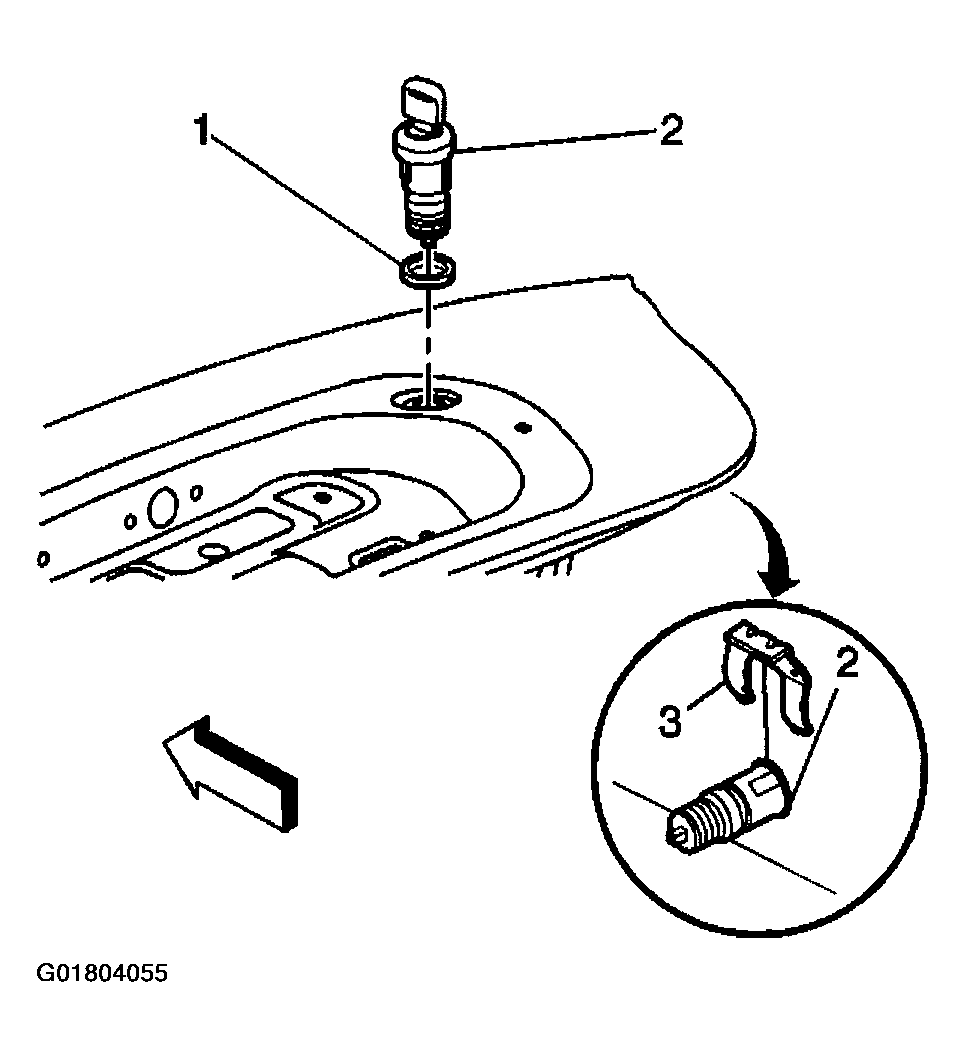

    Fig 1: Removing Lock Cylinder
    G01804055Courtesy of GENERAL MOTORS CORP.
