Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment lid.
  2. Remove the rear compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear  .
  3. Remove the latch cable from the back side of the lock cylinder.
  4. Remove the fasteners (1) retaining the lock cylinder bracket (2) to the lid.
  5. Remove the lock cylinder and bracket (2) from the lid.
  6. Remove the lock cylinder from the bracket.

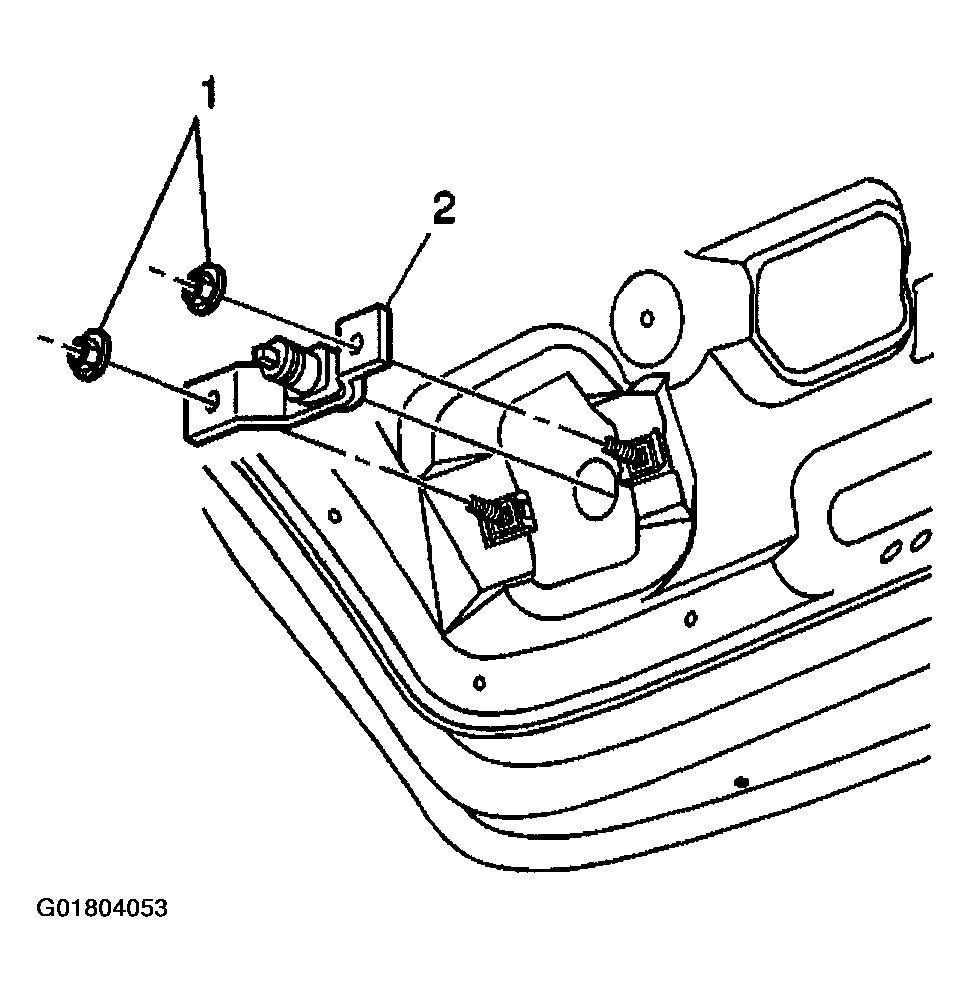

    Fig 1: Removing Lock Cylinder Bracket
    G01804053Courtesy of GENERAL MOTORS CORP.
