In and Out Adjustment

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door upper roller cover. Refer to Roller Bracket Cover Replace - Sliding Door Upper .
  2. Remove the sliding side door lower roller cover.
  3. Loosen the bolts that retain the upper front roller to the bracket.

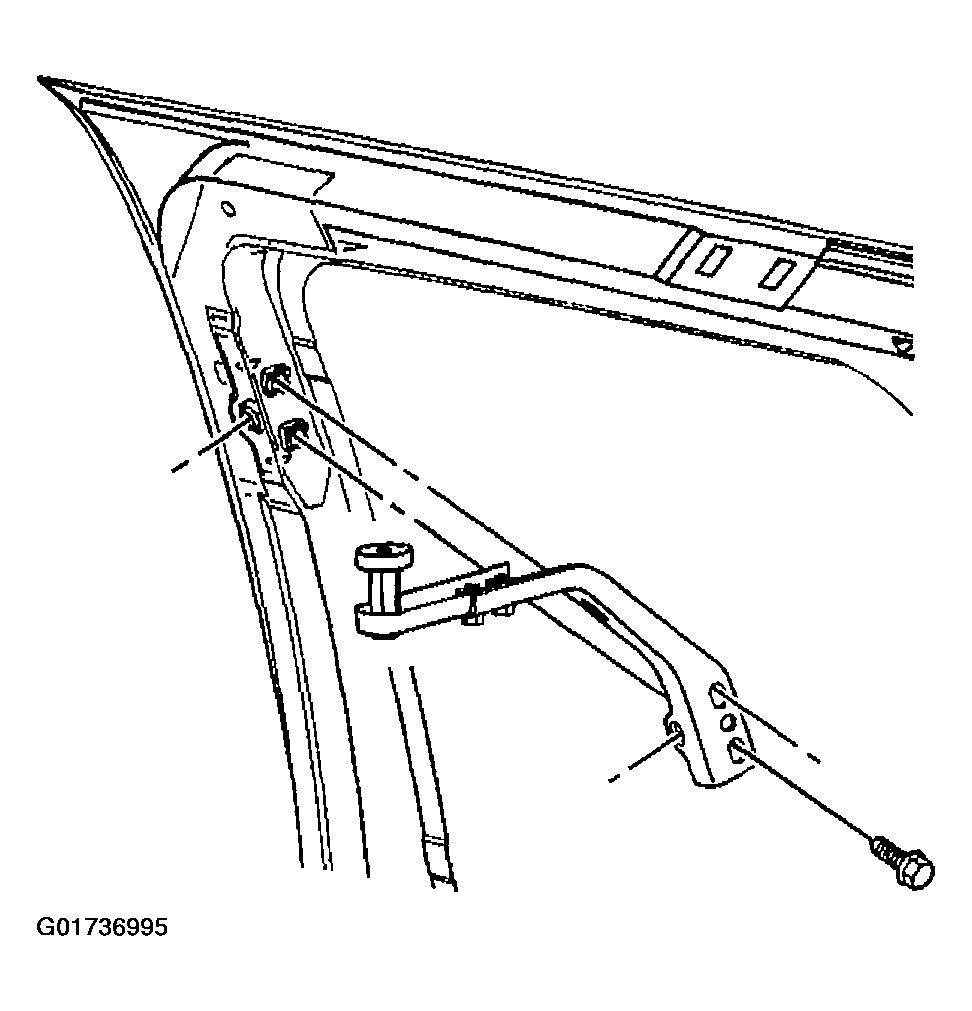

    Fig 1: Removing Sliding Side Door Lower Roller Cover
    G01736995Courtesy of GENERAL MOTORS CORP.
  4. Loosen the bolts that retain the lower front roller to the bracket.
  5. Adjust the door in or out until you obtain the desired position.

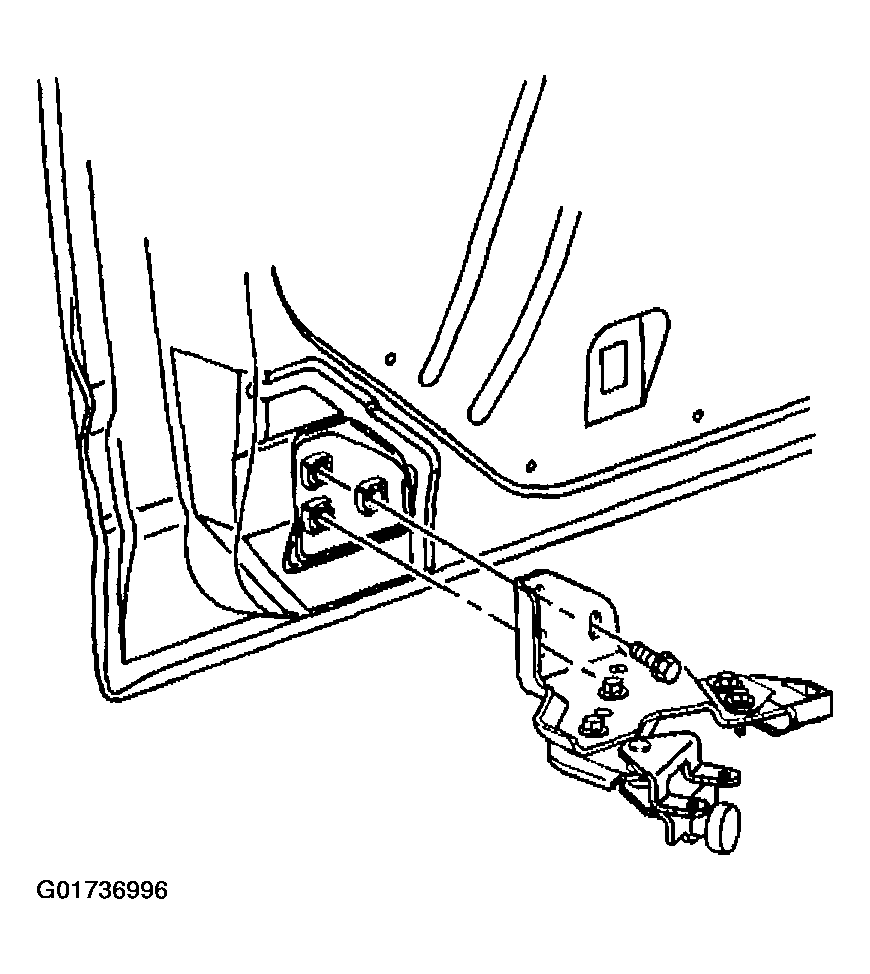

    Fig 2: Loosening Bolts Retaining Lower Front Roller To Bracket
    G01736996Courtesy of GENERAL MOTORS CORP.
  6. Tighten the bolts that retain the upper front roller to the bracket. Tighten the bolts to 25 N.m (18 lb ft).

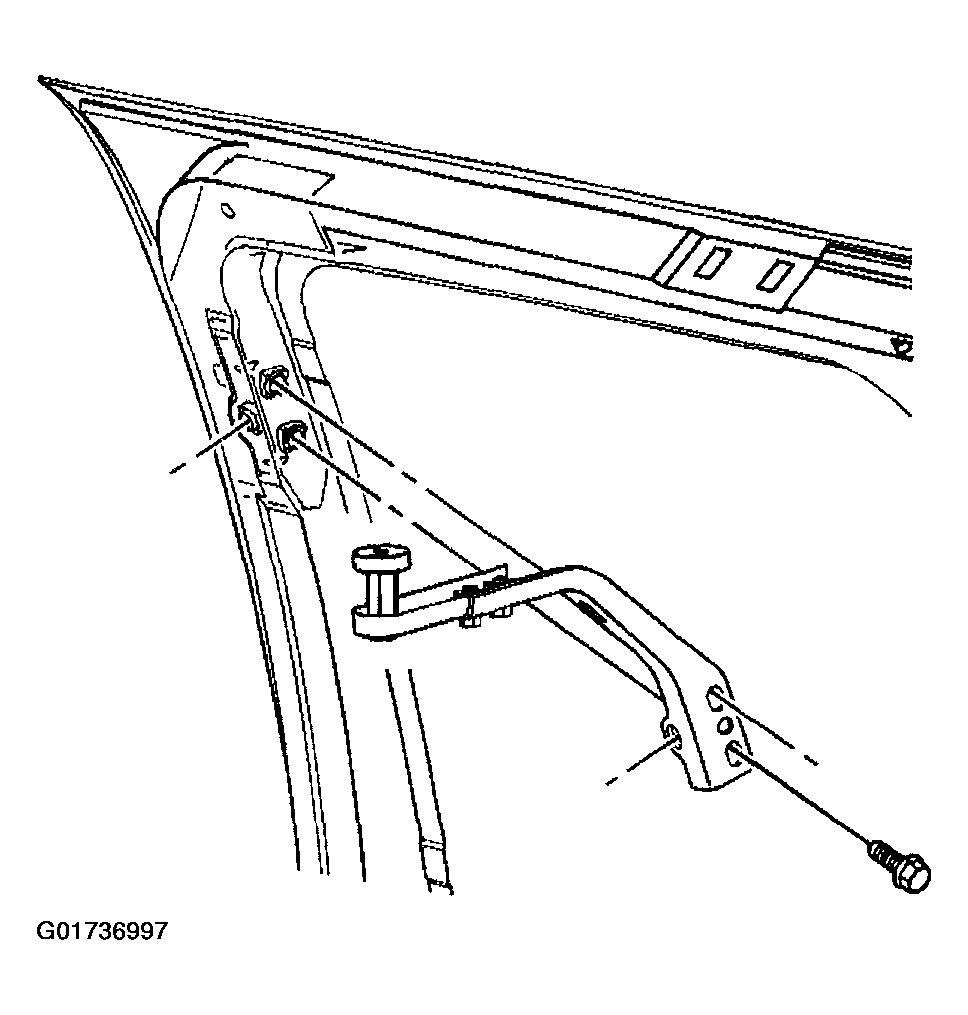

    Fig 3: Tightening Bolts Retaining Upper Front Roller To Bracket
    G01736997Courtesy of GENERAL MOTORS CORP.
  7. Tighten the bolts that retain the lower front roller to the bracket. Tighten the bolts to 25 N.m (18 lb ft).
  8. Install the sliding side door lower roller cover.
  9. Install the sliding side door upper roller cover. Refer to Roller Bracket Cover Replace - Sliding Door Upper .

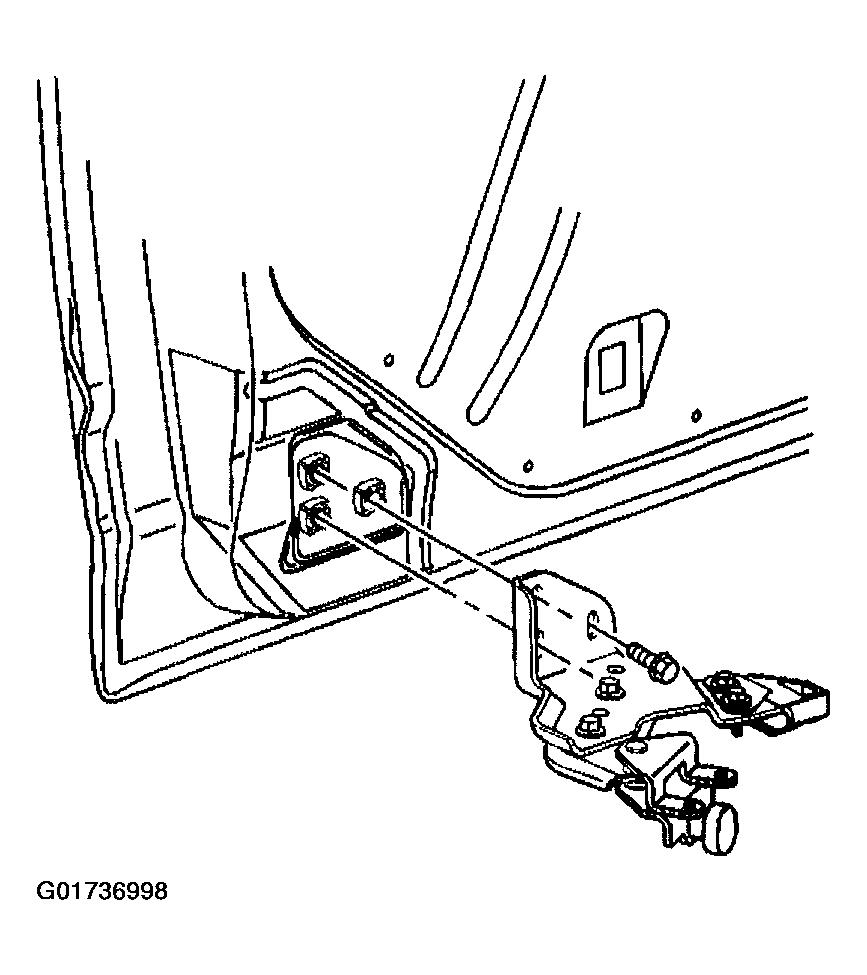

Fig 4: Installing Sliding Side Door Lower Roller Cover
G01736998Courtesy of GENERAL MOTORS CORP.
