Power Door Locks Inoperative - One Door Or Switch

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

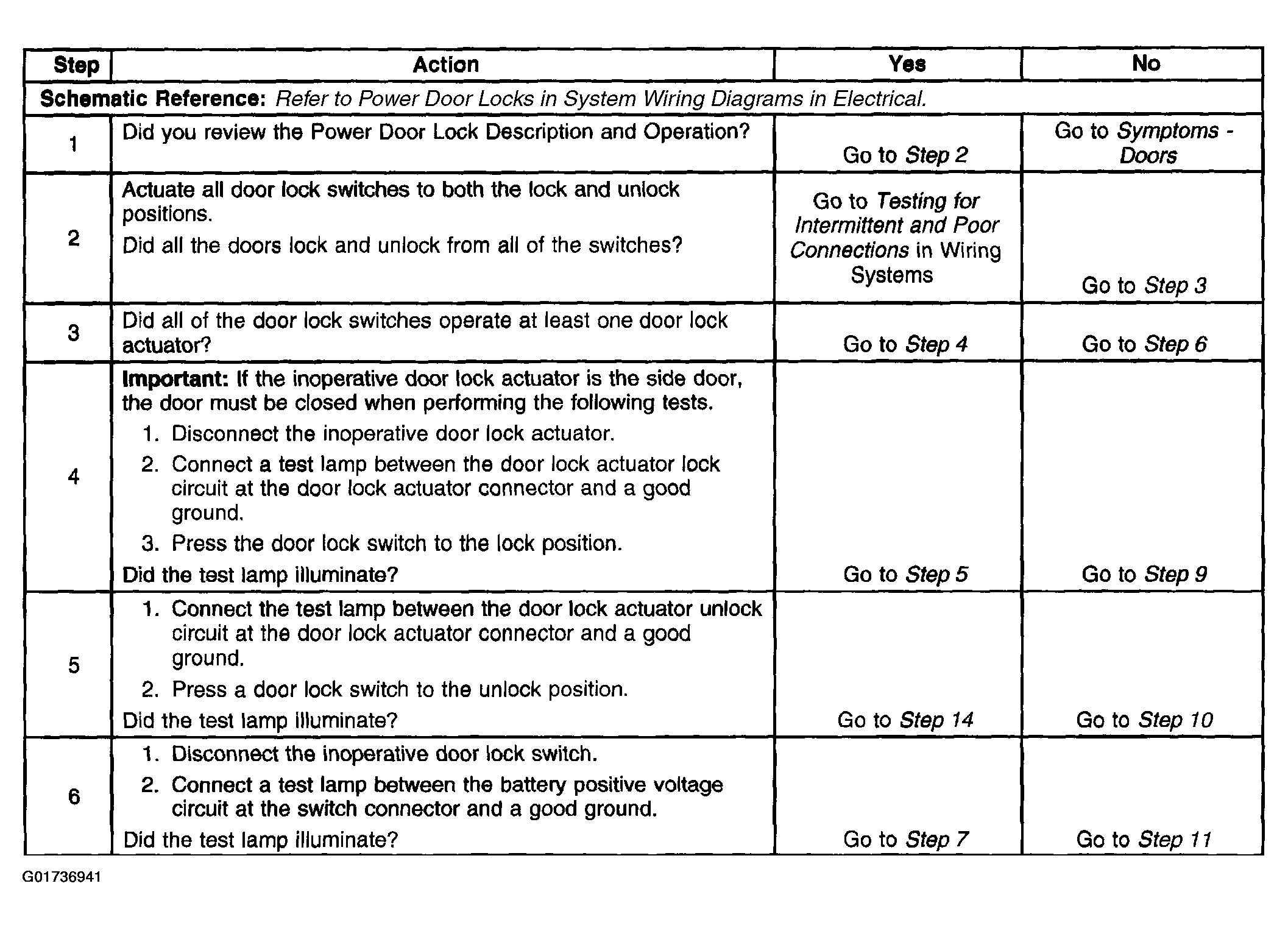

Fig 1: Identifying Power Door Locks Inoperative - One Door Or Switch Diagnostic Table (1 Of 2)
G01736941Courtesy of GENERAL MOTORS CORP.

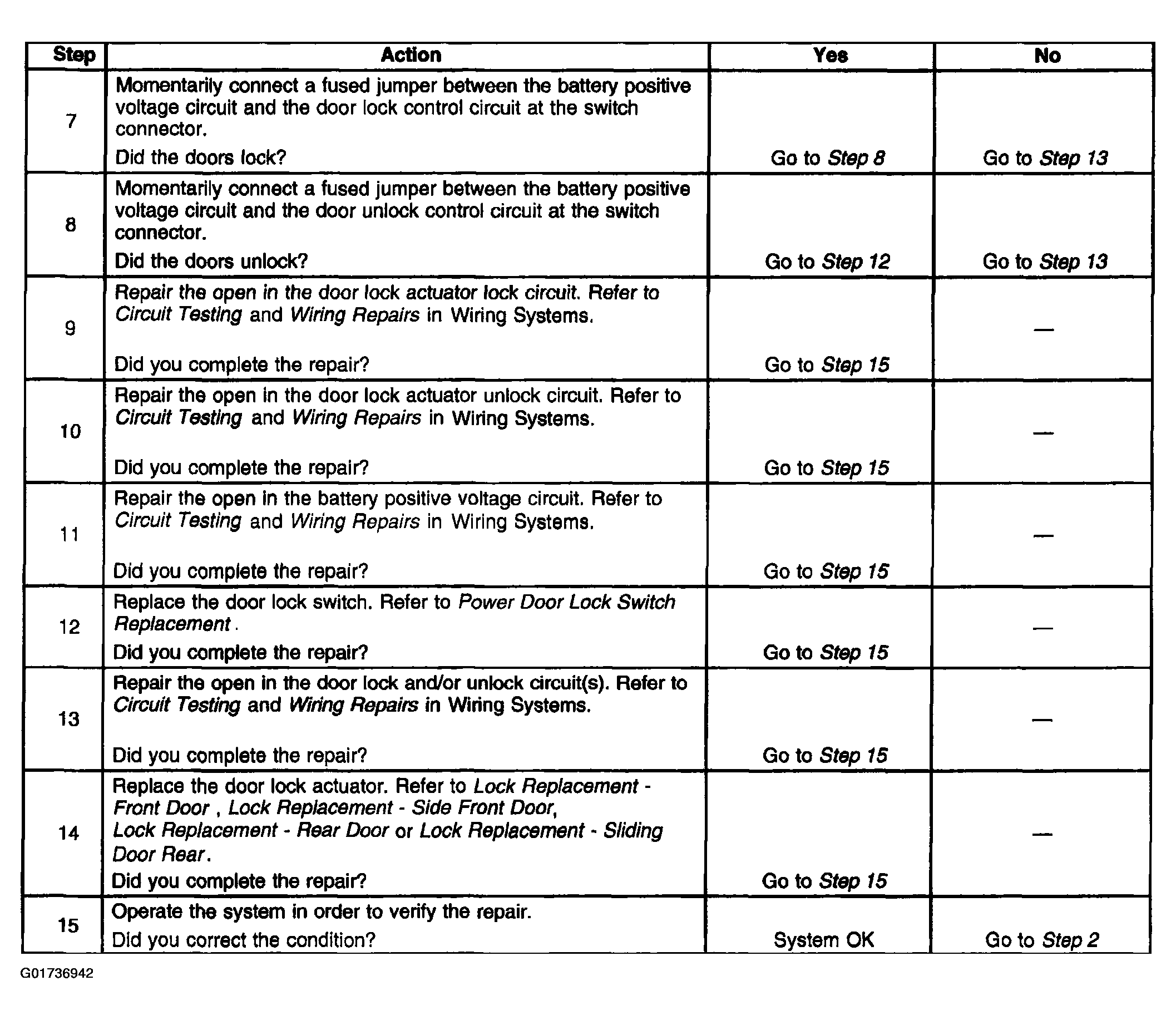

Fig 2: Identifying Power Door Locks Inoperative - One Door Or Switch Diagnostic Table (1 Of 2)
G01736942Courtesy of GENERAL MOTORS CORP.
