Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right IP outer trim cover. Refer to Instrument Panel (IP) Outer Trim Cover Replacement  .
  2. Open the IP storage compartment and remove the two fasteners that secure the right IP trim plate to the IP.
  3. Remove the right IP trim plate by pulling toward the rear of the vehicle.
  4. Disconnect the electrical connector for the storage compartment light switch.

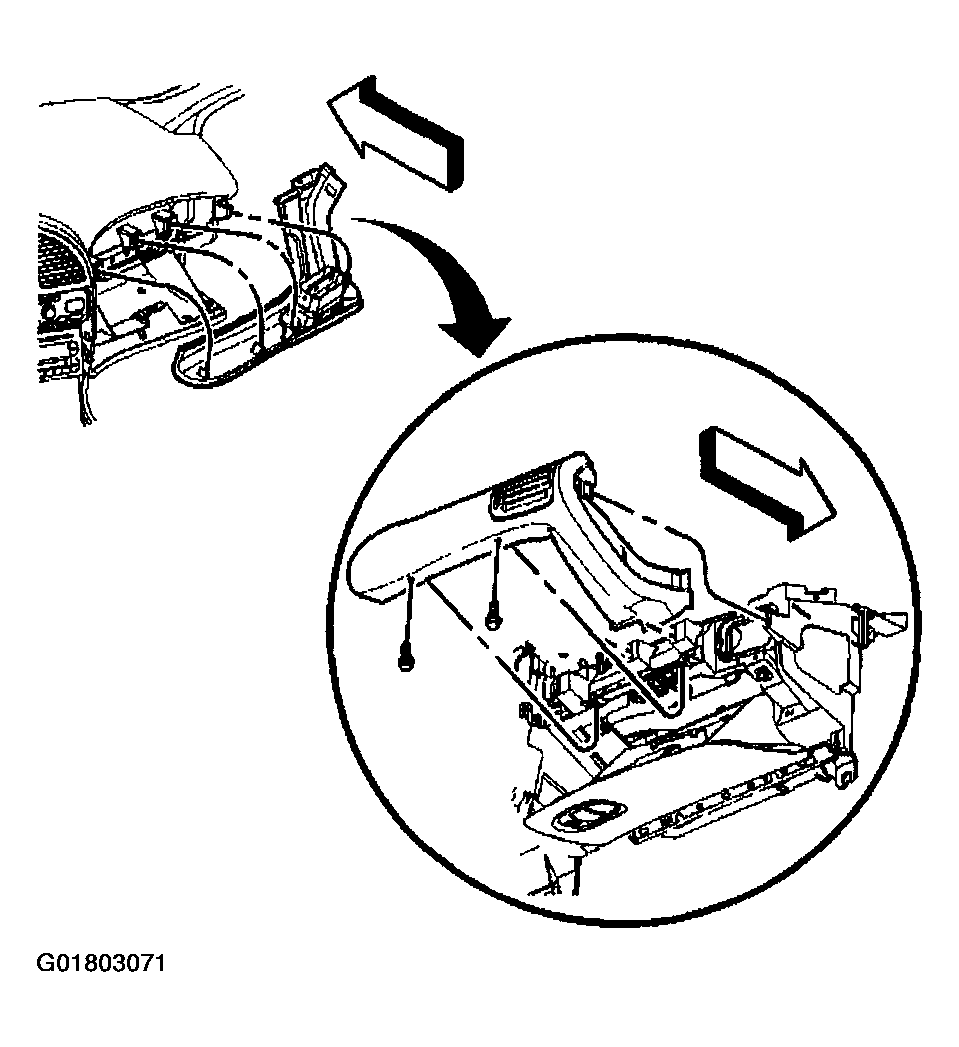

    Fig 1: Removing Right Accessory IP Trim Plate
    G01803071Courtesy of GENERAL MOTORS CORP.
