Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. If installing a new lock cylinder, code key and lock cylinder.
  2. Insert the key into the lock cylinder.
  3. Align the lock cylinder in the same position used for removal. Push the cylinder in place to seat fully.
  4. Turn the key 1/4 turn clockwise to secure the lock cylinder retainer.
  5. Remove the key from the lock cylinder.
  6. Inspect the operation of the lock cylinder.

    The lock cylinder should only allow a 1/4 turn and should be securely retained in the door handle.

  7. Install the IP compartment handle. Refer to Handle Replacement - IP Compartment  .

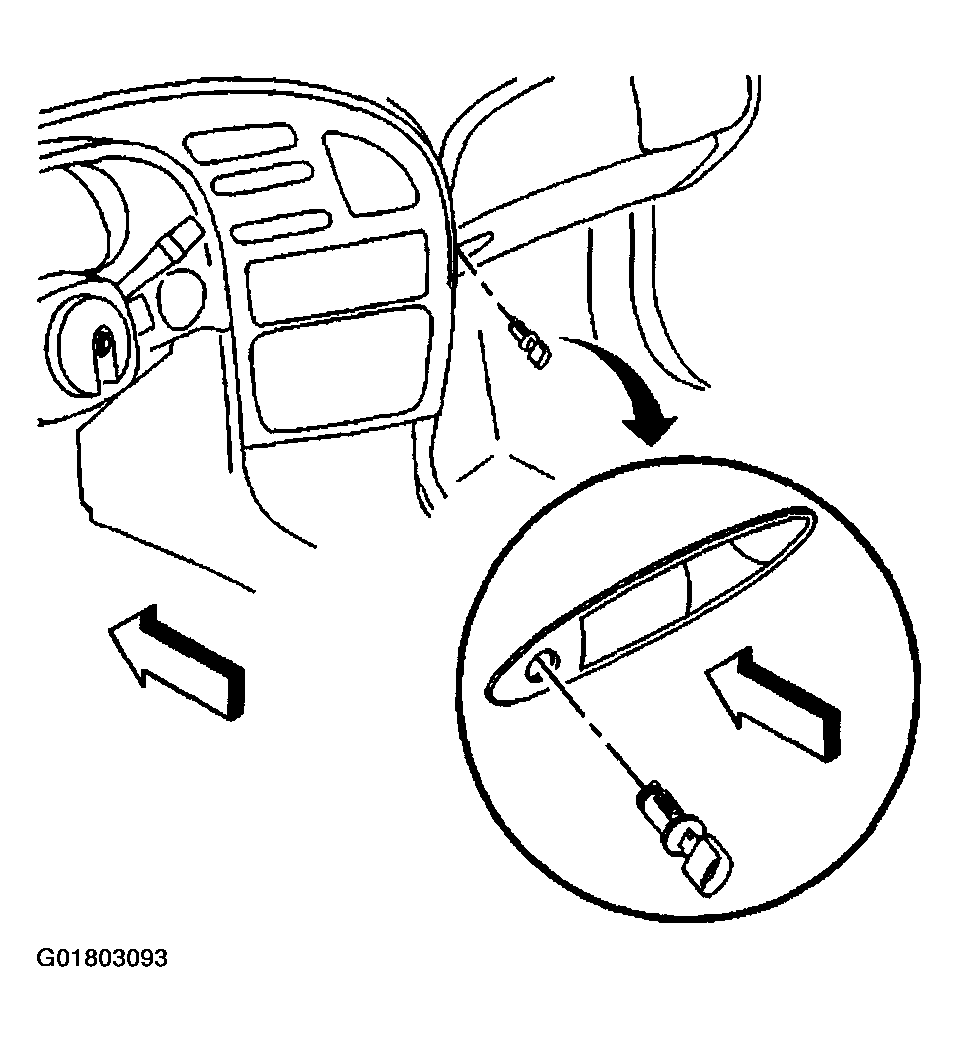

    Fig 1: Installing IP Compartment Door Lock Cylinder
    G01803093Courtesy of GENERAL MOTORS CORP.
