Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the tabs on front edge of IP outer trim cover to the slots in IP retainer.
  2. Push inwards on the IP outer trim cover until the retainers engage securing the IP outer trim cover to the IP retainer.

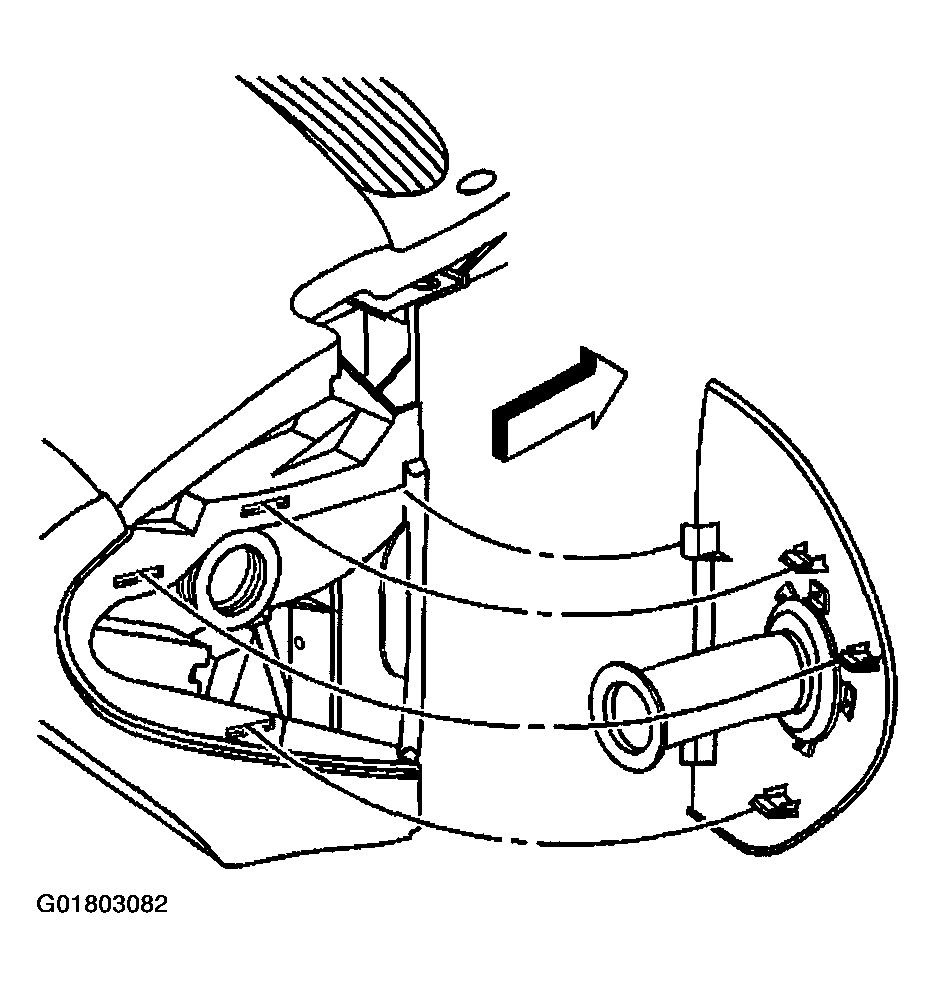

    Fig 1: Installing IP Outer Trim Cover
    G01803082Courtesy of GENERAL MOTORS CORP.
