Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP center trim panel. Refer to Trim Panel Replacement - IP Center  .
  2. Remove the center air deflector by pushing firmly from the rear while pulling the air deflector out from the front of the IP.

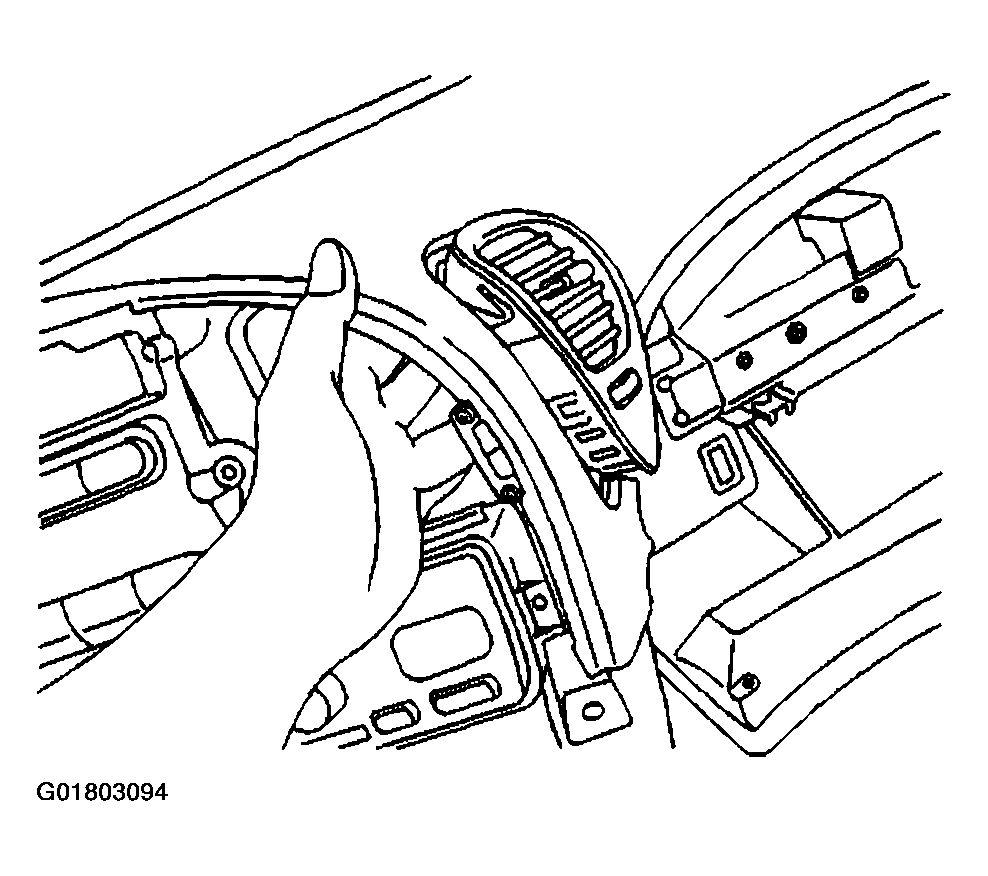

    Fig 1: Removing Center Air Deflector
    G01803094Courtesy of GENERAL MOTORS CORP.
