Diagnostic Aids

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Using the Failure Records data may aid in locating an intermittent condition. If you cannot duplicate the DTC, the information included in the Failure Records data can aid in determining how many miles since the DTC set. The Fail Counter and Pass Counter can also aid determining how many ignition cycles the diagnostic reported a pass and/or a fail.

Refer to TESTING FOR INTERMITTENT AND POOR CONNECTIONS .

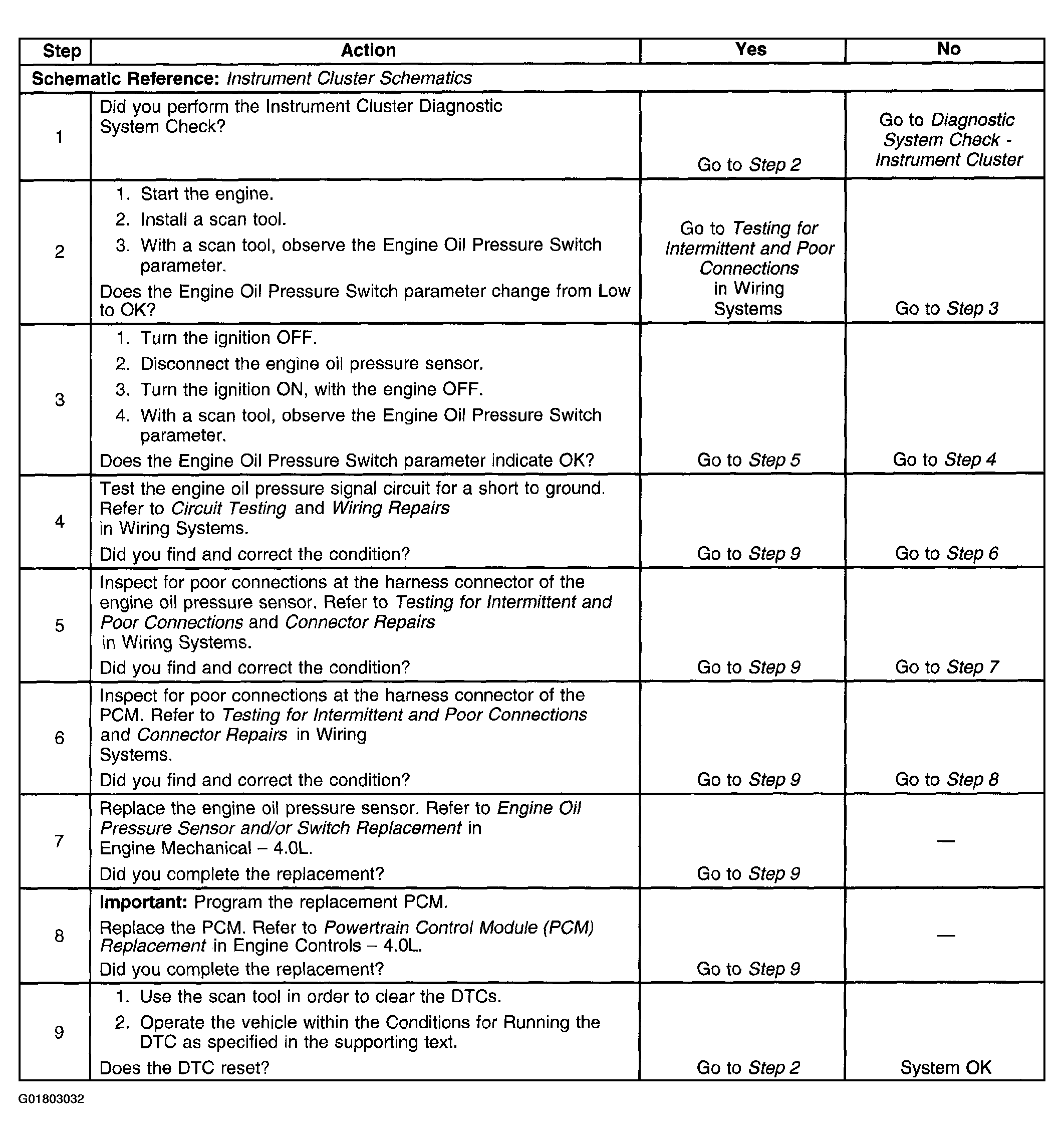

Fig 1: DTC P0522 (L47)
G01803032Courtesy of GENERAL MOTORS CORP.
